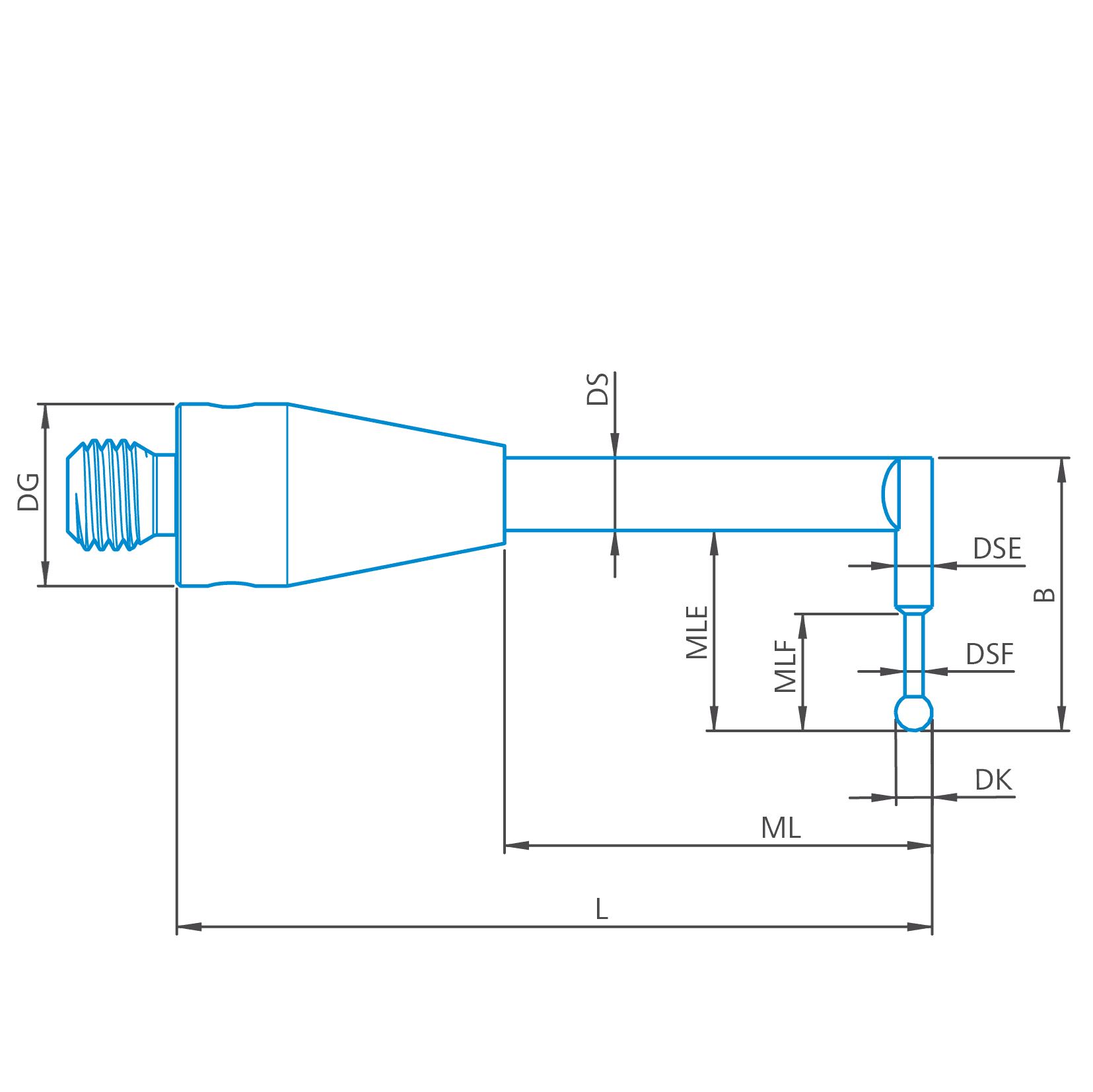

L-stylus M3 XXT, DK0.5 L47
626113-5000-104
3 034,00 SEK
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
0,5 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
37 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
2 mm
2nd Measurement length (MLE)
8 mm
2nd shaft diameter (DSE)
1 mm
3rd measurement length (MLF)
3 mm
3rd shaft diameter (DSF)
0,35 mm
Width (B)
10 mm
Overall
Length (L)
47 mm
Ø Body (DG)
5 mm
Weight
2,6 g
Stylus type
L-Stylus
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
L-styli for measuring undercuts and horizontal bores. M3 thread for ZEISS VAST XXT probes.
M3 XXT features a larger base diameter for greater rigidity
Standard adapter for M3 XXT extensions
Tungsten carbide sphere for special size and form
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
