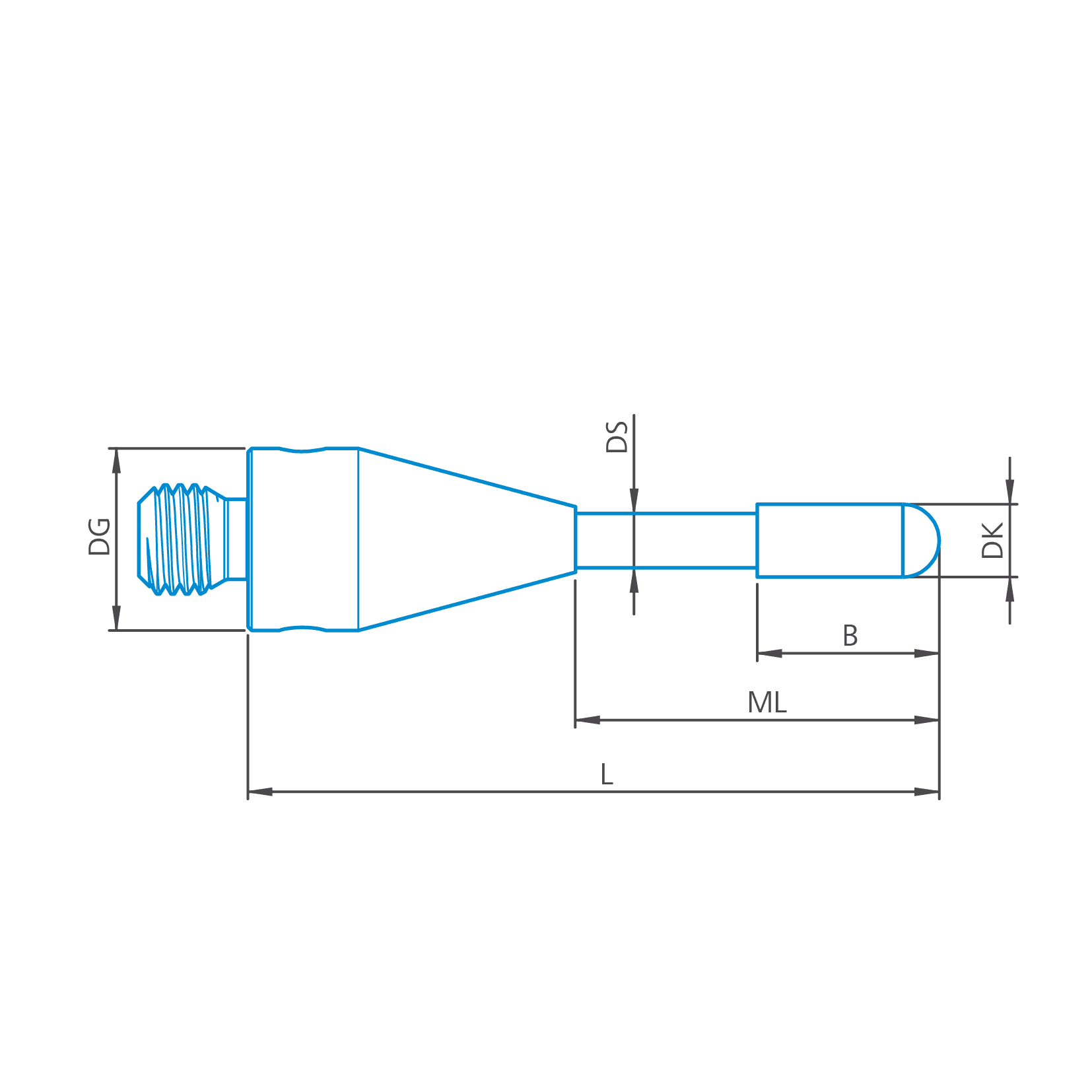

Cylinder stylus M3 XXT, DK2 L16
626113-0201-016
3 732,00 SEK
excluding VAT
In stock
Do you have questions?
Stylus tip
Diameter sphere (DK)
2 mm
Tip material
Ruby
Tip geometry
Spherical Cylinder
Stylus shaft
Measurement length (ML)
7 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
2 mm
Overall
Length (L)
16 mm
Ø Body (DG)
5 mm
Stylus type
Cylinder
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Cylindrical styli for thin sheets and narrow workpiece edges. In addition surface measurement with the spherical tip. M3 thread for ZEISS VAST XXT probes.
M3 XXT features a larger base diameter for greater rigidity
Cylindrical styli for two-dimensional measuring tasks
Spherical tip for surface measurement
Ruby is the most common material
Stepped measuring cylinder
Proven ZEISS quality through high-end manufacturing
