Adapter pallet OMEGA 543 to 322, comfort
626109-9512-001
22 105,00 SEK
excluding VAT
Longer delivery time
Do you have questions?
Overall
Product type
Calibration Pallet
Application
Calibrate
Machine
O-INSPECT 543
Material
Aluminum
Details
OMEGA 543 weight-reduced calibration pallet
- - Pallet dimensions: 660 mm x 580 mm
- - Pallet weight: 6.0 kg

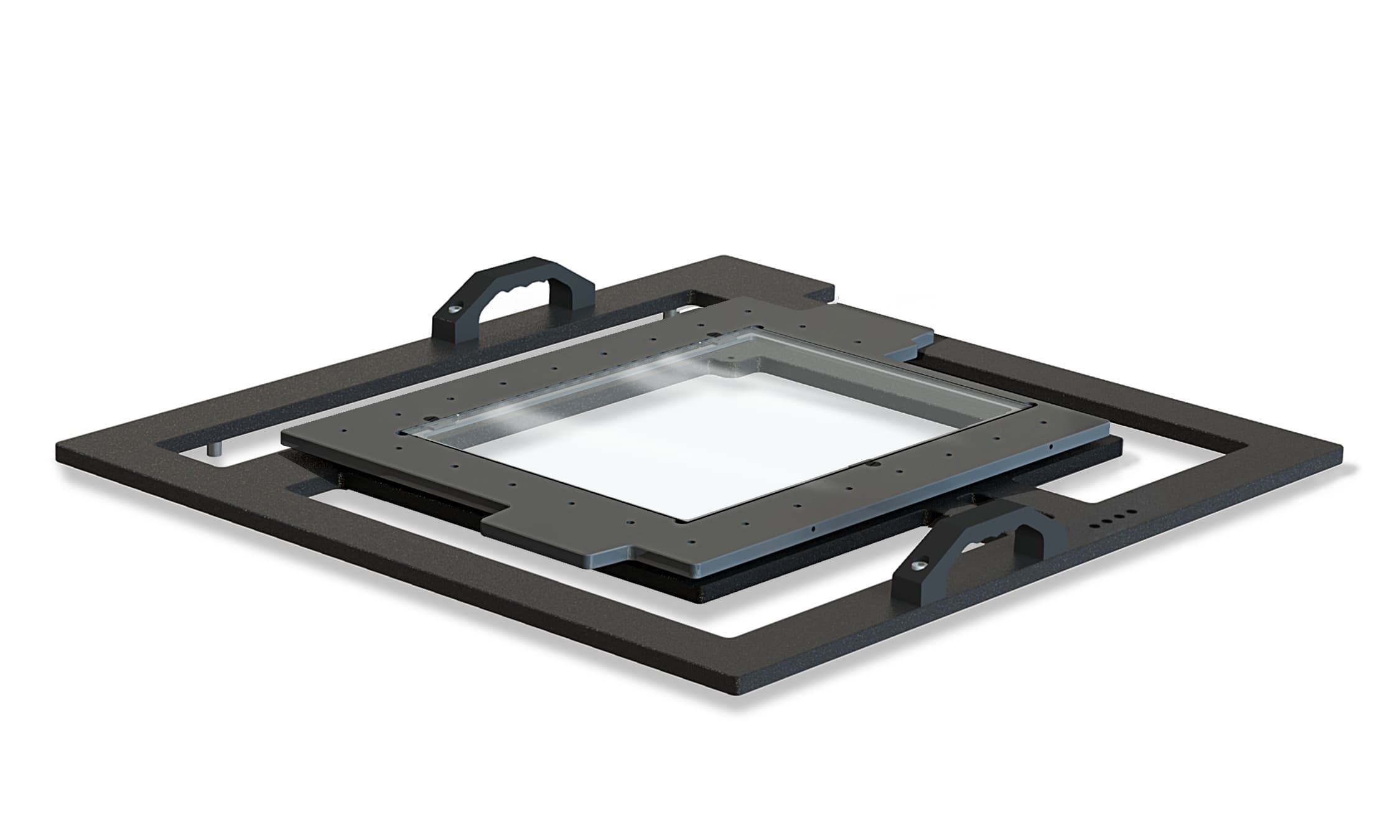

The OMEGA 543 adapter pallet is used for O-INSPECT 543 or O-DETECT 543 machines as an adaptor for OMEGA 322 frame pallets. The adapter pallet is inserted into the existing mountings on the 543 machine and receives the 3 mounting elements of the OMEGA 322 system. These adapter pallets are mainly used for OMEGA 322 calibration pallets or as a method to use the same pallets on machines of both sizes in the measuring room. The comfort adapter pallet is lighter in weight and can be used on all 543 machines. All pallets of the OMEGA 322 series can be adapted to this pallet. The illustration shows the use a OMEGA 322 pallet. The scope of delivery does not include an OMEGA 322 pallet.
