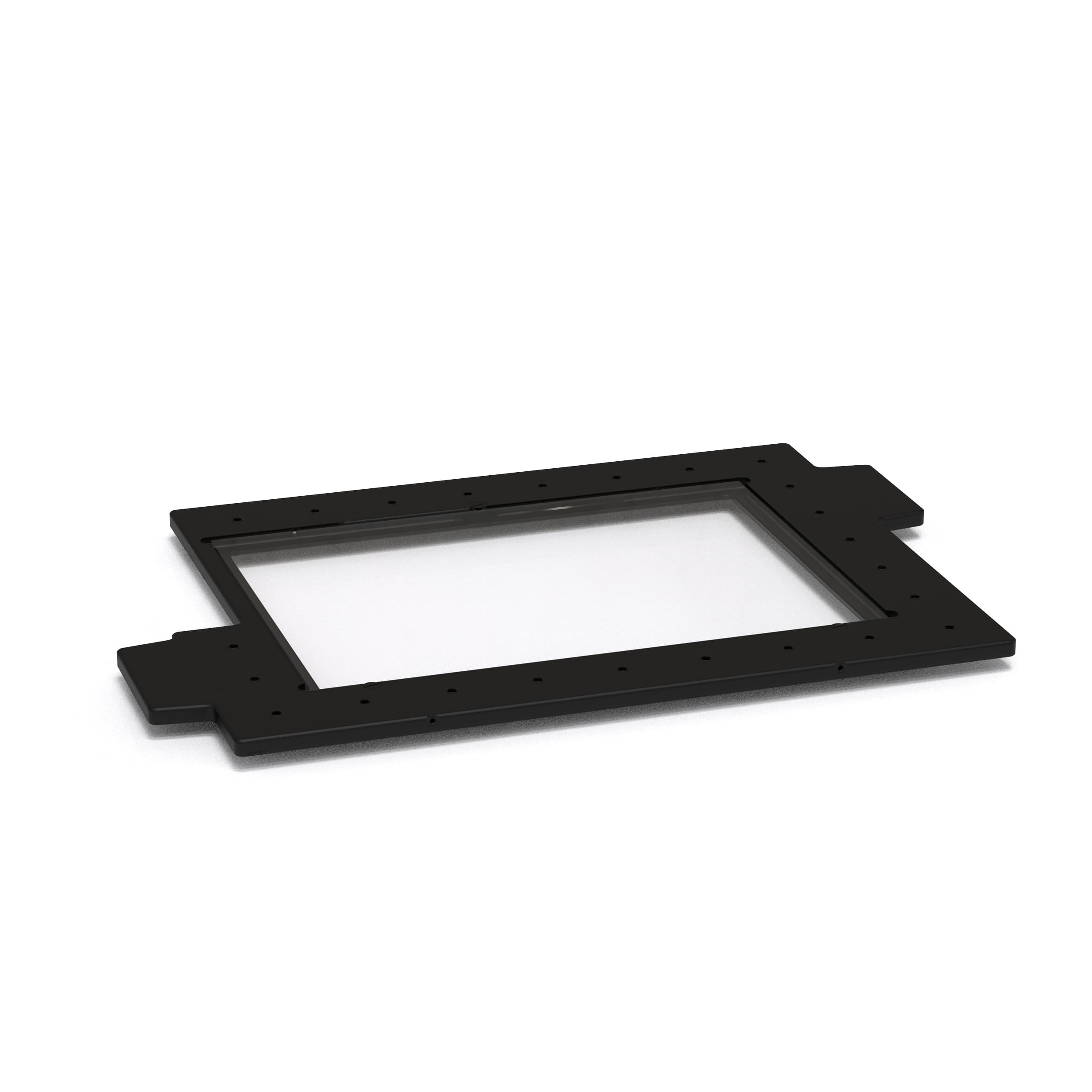

OMEGA 322 frame pallet, glass
626109-9510-020
10 346,00 SEK
excluding VAT
In stock
Do you have questions?
Overall
Product type
Frame Pallet
Application
Secure
Machine
O-INSPECT 322
Material
Clear Glass
Length (L)
360 mm
Width (B)
530 mm
Weight
6 000 g
Details
OMEGA 322 frame pallet with clear glass insert, with precise and robust 3-point interface.
- Compatible with ZEISS fixtures and accessories.
- - Pallet dimensions: 530 mm x 360 mm
- - Pallet weight: 6.0 kg
Product note
The specified measurement performance of ZEISS coordinate measuring machines is achieved only when original ZEISS accessories are used. OMEGA 322 pallets are specifically designed for ZEISS measuring machines, probes, and clamping technology and are tested as a complete system. The use of pallets and clamping devices from unknown or non-certified manufacturers can negatively affect measurement accuracy, repeatability, and process stability.
ZEISS OMEGA 322 pallet systems enable the quick and repeatable change of complete fixture setups on ZEISS coordinate measuring machines (specifically for O-INSPECT/O-DETECT 322)—ideal for production-run measurements, part changes, and automated measurement sequences.
Precise pallet referencing for high repeatability during pallet changes
Interfaces optimally tailored to ZEISS CMM and measurement processes
Modular design for flexible fixturing solutions, from prototypes to production
Rigid, durable design for stable measurement results even at high cycle rates
Reduced setup time and minimal operator influence for greater process reliability
