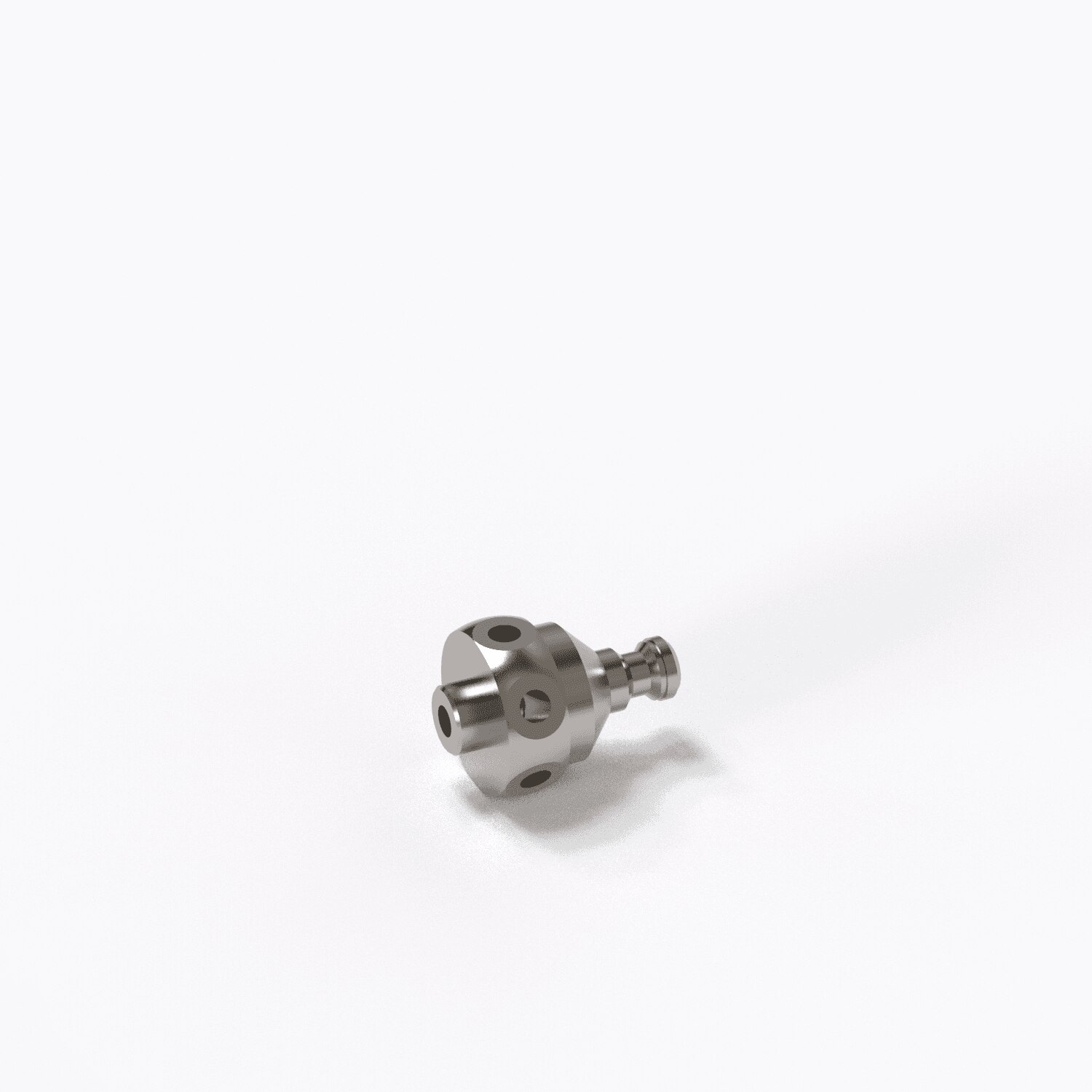

Cube, with cone adapter, 6 sided M3
626107-6280-100
1 510,00 SEK
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
Cone Adapter
Connection Type Out
M3 XXT

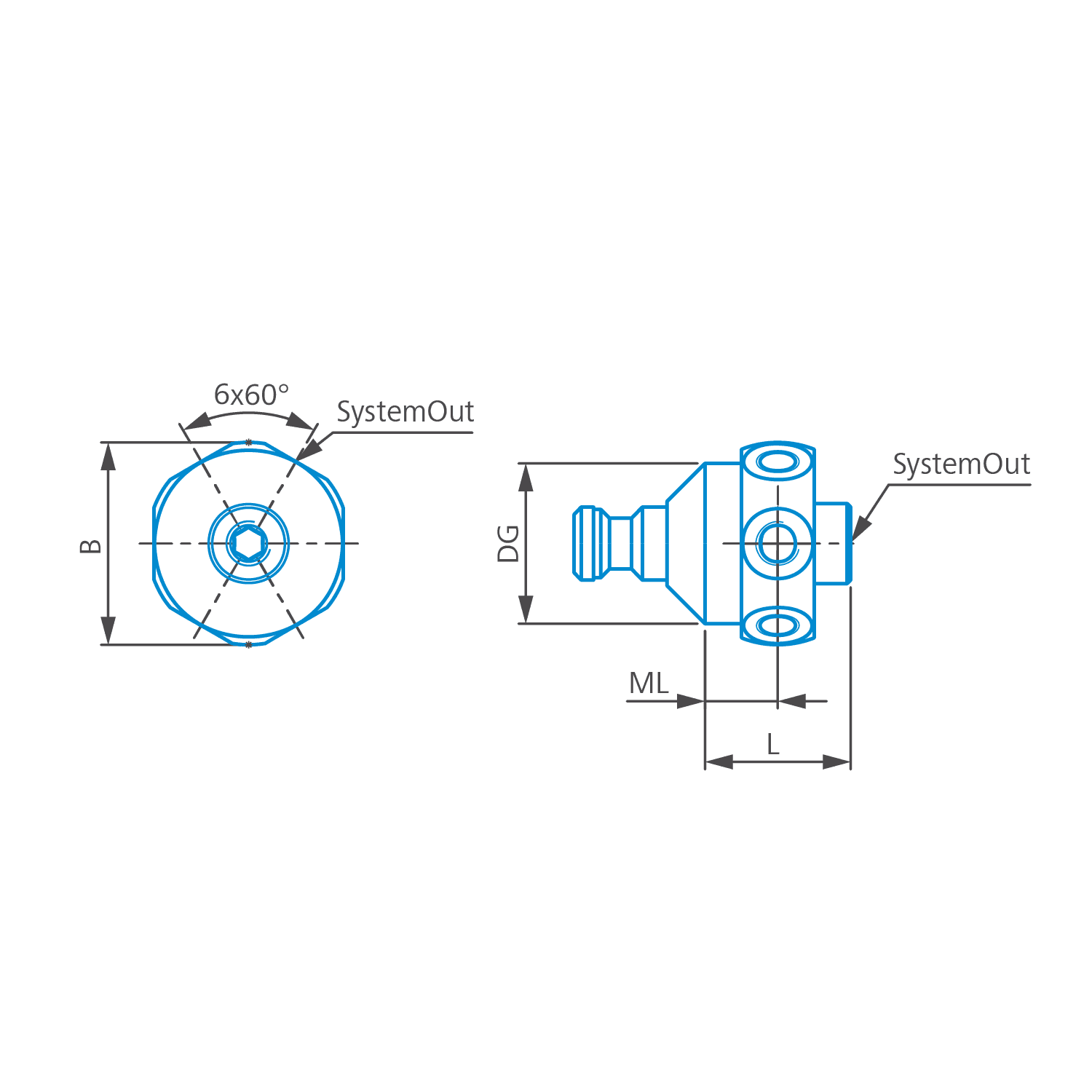

Primary Dimensions
Length (L)
10 mm
Width (B)
14 mm
Ø Body (DG)
11 mm
Detailed Specifications
Material
Titanium
Weight
5 g
Number positions
6
Product note
Star element with cone adapter, M3 XXT system, 6 x M3 (60°), L: 10, ML: 5, DG: 11, B: 14, weight: 5 g
Star insert with cone adapter (CA), rotationally adjustable and 6 x 60° M3 XXT connections
Connection option 6 x M3
Special cone holder for maximum torsion resistance
Can be reused several times
Quick and safe assembly
Optimum accessibility due to slim design
Can be used in ZEISS basic rotary mounts
