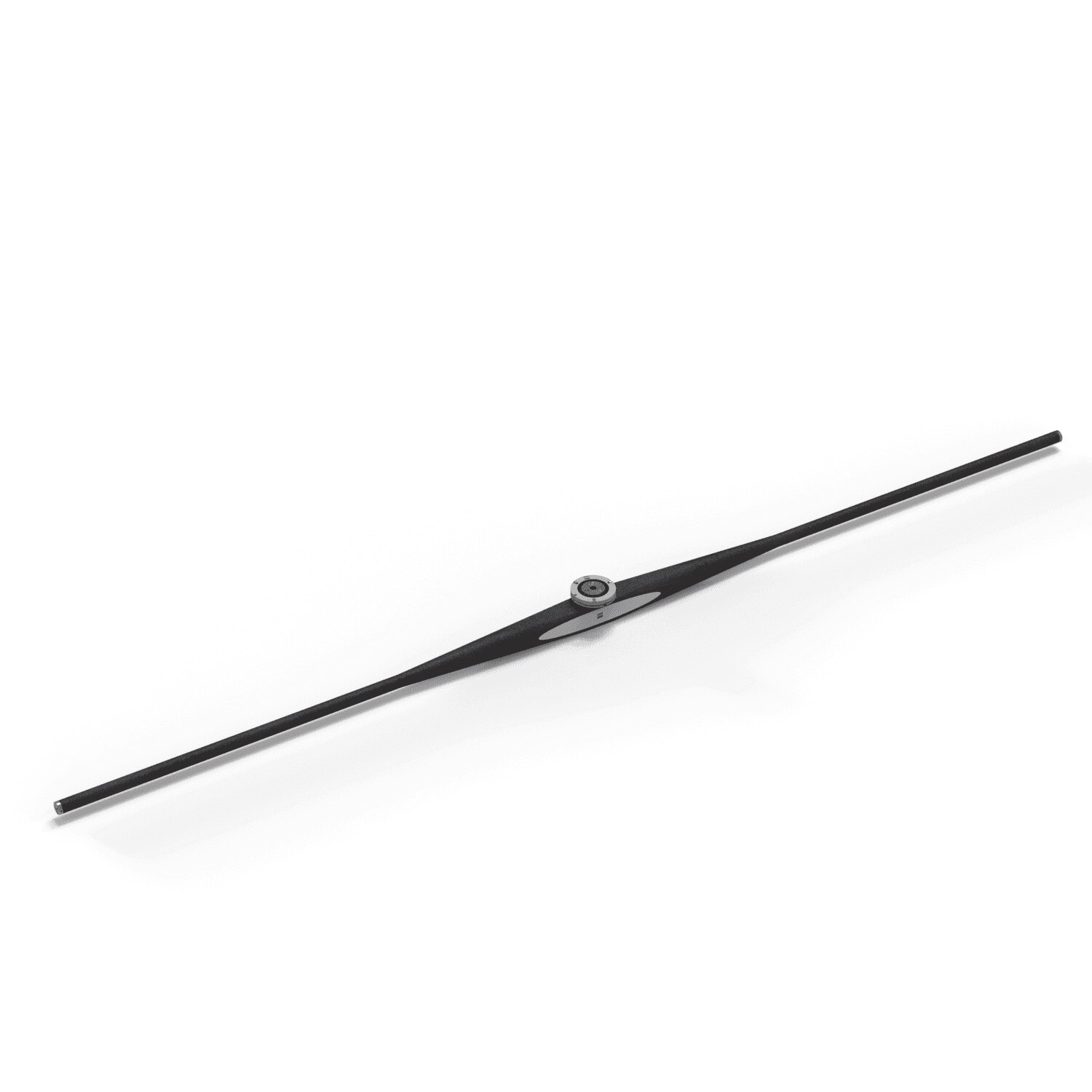

Adapter plate MMZ, Adapter-2x-M5-L600
626107-5060-000
40 405,00 SEK
excluding VAT
Longer delivery time
Do you have questions?
System Integration
Extension type
Plate Extension VAST / MT
Connection Type
ThermoFit XL
Connection Type Out
M5
Measuring sensor
VAST/MT
Primary Dimensions
Length (L)
1 200 mm
Ø Body (DG)
20 mm
Width (B)
40 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Number positions
2
Weight
473 g
Measurement length (ML)
600 mm
Product note
ZEISS ThermoFit® XL becomes REACH CFX® 3, MMZ - new name, same performance. ZEISS REACH CFX® 3, MMZ is designed to keep carbon fiber extensions torsion and bending resistant even at great lengths.
The special design of the ZEISS REACH CFX® 3, MMZ extensions makes it possible to use extensions that exceed the specified length capacity of the measuring Sensor. These extensions are directly combined with the adaptor plate and provide a tandem extension with lengths up to 900 mm per side. The large ZEISS MMZ series are suitable for large-volume and heavy components. They are used in many industries such as mechanical engineering, automotive and aviation industries. The probe extensions are available in different versions and are suitable, for inspecting deep holes on large components.
REACH CFX® 3 extensions with plate for use on ZEISS MMZ machines
Extremely lightweight special extensions with approval for lengths over 900 mm
Extension arms on both sides for measuring opposing features
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Carbon fiber tubes - developed by ZEISS with special winding for all metrological challenges
