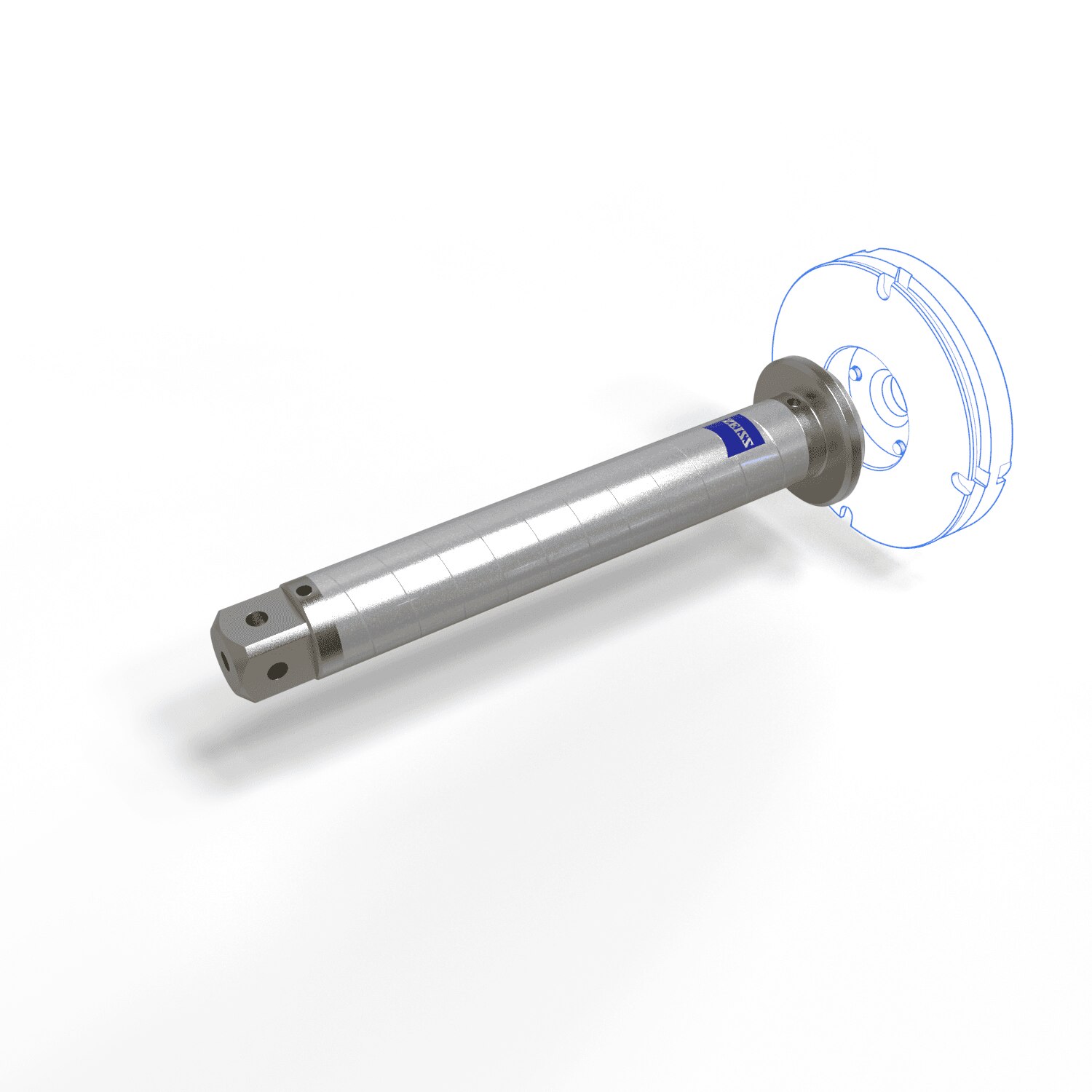

Adapter plate extension, Cube 15-5x-M5-L81,5
626107-2040-130
2 656,00 SEK
excluding VAT
In stock
Do you have questions?
System Integration
Extension type
Plate Extension VAST / MT
Connection Type
M5
Connection Type Out
M5
Measuring sensor
VAST/MT

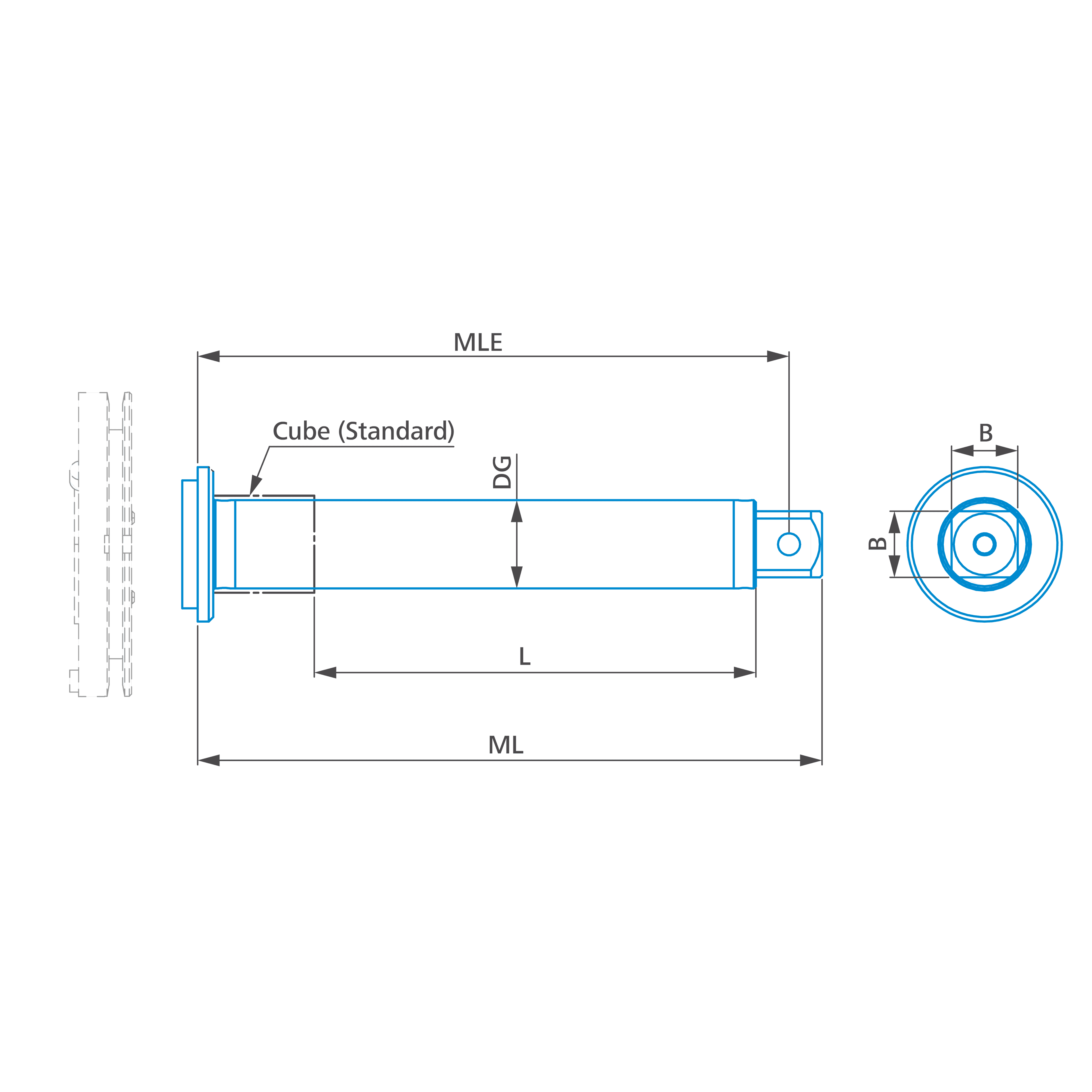

Primary Dimensions
Length (L)
40 mm
Ø Body (DG)
20 mm
Width (B)
15 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Number positions
5
Weight
62 g
Measurement length (ML)
81,5 mm
Product note
ZEISS ThermoFit becomes REACH CFX® 3 - new name, same performance. Over 70% of measurement errors and fluctuations in reproducibility are due to unsuitable extensions. Especially with longer extensions, the influence on the stability of the measurement is very high.
Plate extensions are fastened directly to the adaptor plate at the point where the greatest force is applied. The use of plate extensions makes sense wherever it is not necessary to use a cube directly on the adaptor plate. This saves weight and removes a connection, thus increases the rigidity of the overall system. The integrated 15 mm cube enables the connection of additional elements in all main directions.
Plate extension to reduce the number of connections
REACH CFX® 3 quality for most applications
Integrated 15 mm cube for additional components in all main directions
Lightweight - allows for complex stylus systems
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Carbon fiber tubes - developed by ZEISS with special winding
