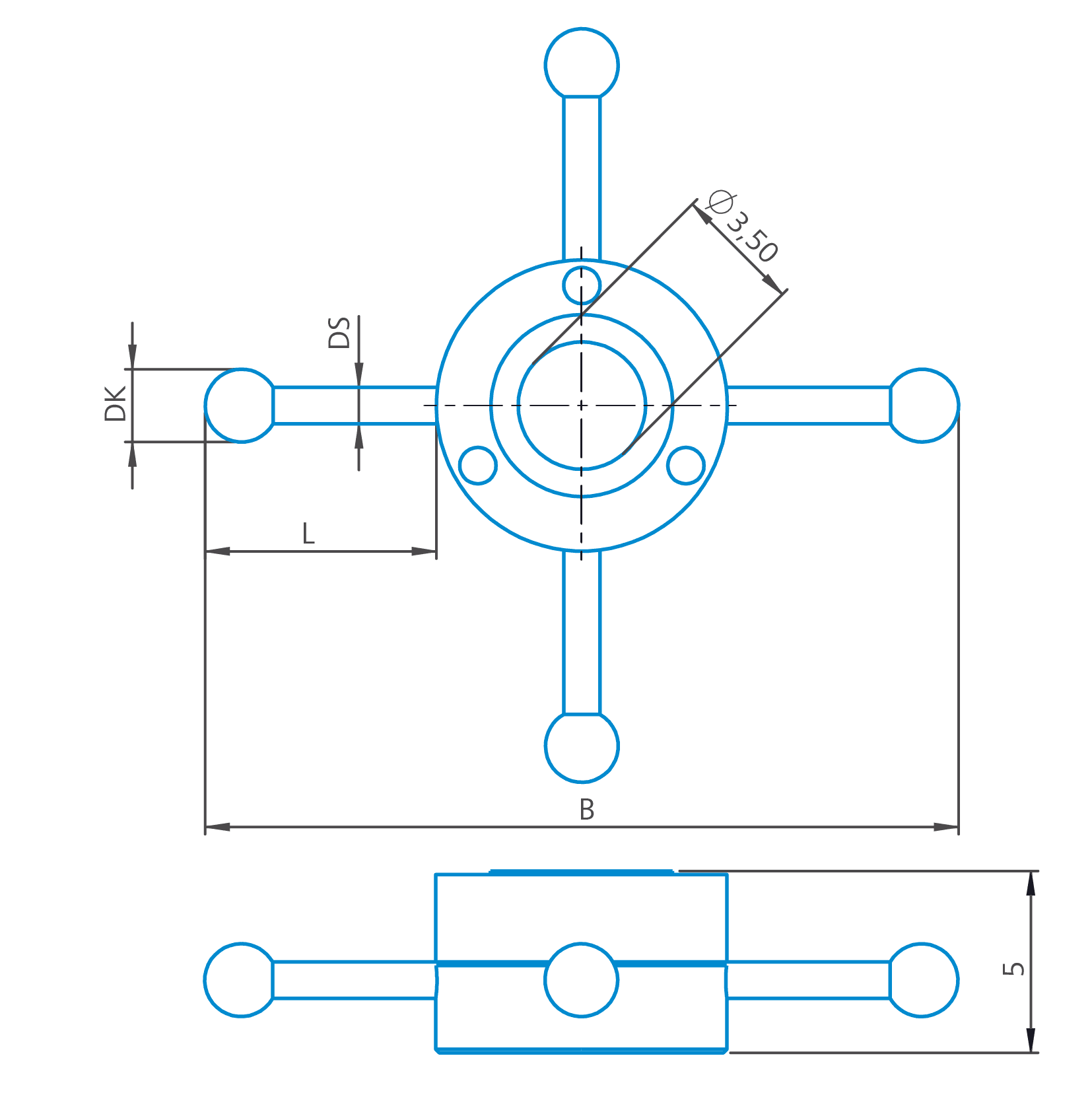

Star stylus M3 XXT, DK5 L12.5
626103-0500-033
3 599,00 SEK
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
5 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
12,5 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
Width (B)
33 mm
Overall
Length (L)
12,5 mm
Ø Body (DG)
5 mm
Stylus type
Star Stylus cube-shape
Connection Type
M3 XXT
Product note
Additional clamping screw is needed. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Star styli for measuring bores, grooves, undercuts, cylinder and bore diameters instead of disc styli
Clamping ring with 4 horizontal single styli
For adaptation to standard extensions
Spherical styli have the same probing behavior in all directions
Ruby is the most common spherical material
Ruby spheres available from 0.2 to 12 mm
tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end production
