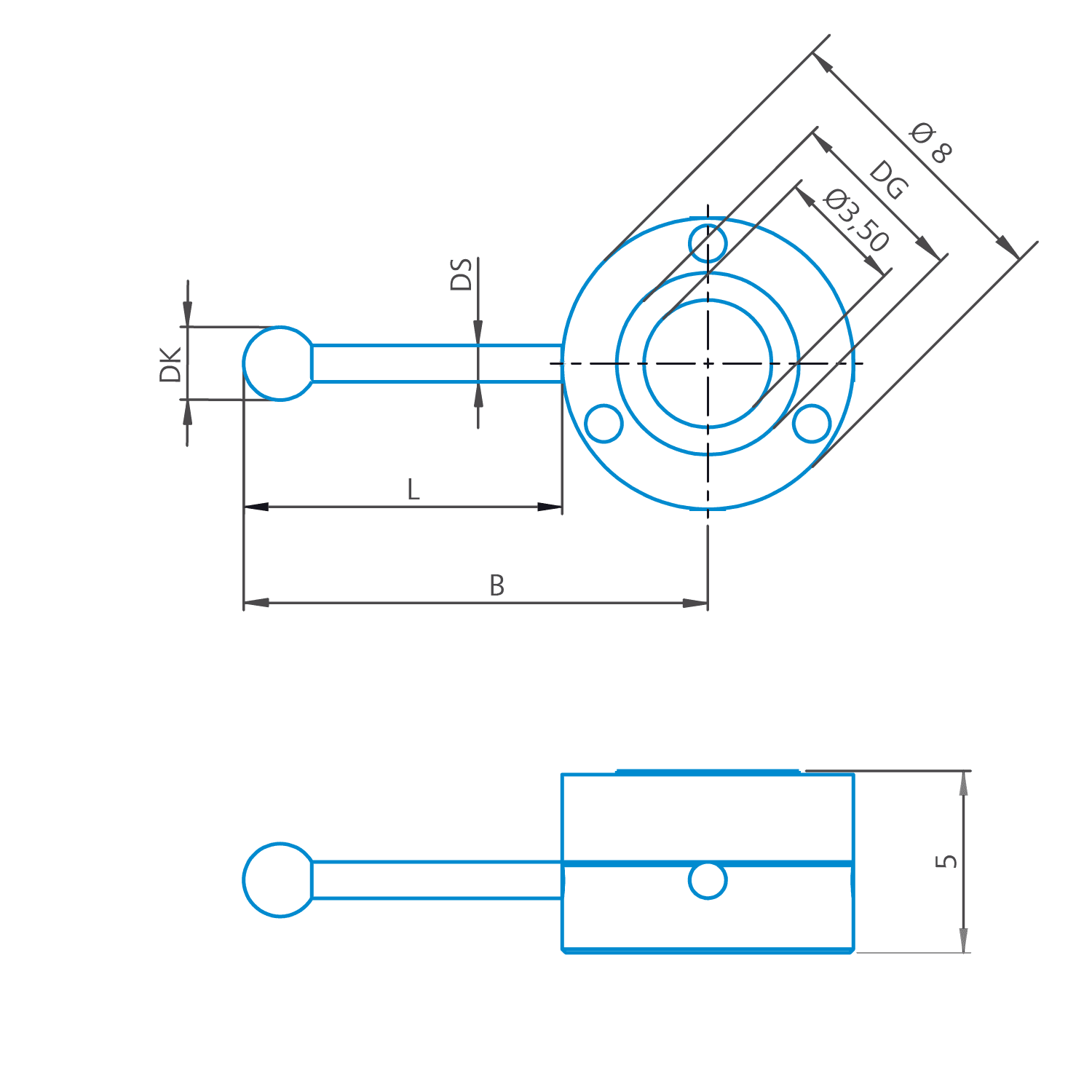

L-stylus cube M3 XXT, DK1 L5
626103-0100-418
1 688,00 SEK
excluding VAT
In stock
Do you have questions?
Stylus tip
Diameter sphere (DK)
1 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
5 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
0,8 mm
Width (B)
9 mm
Overall
Length (L)
5 mm
Ø Body (DG)
8 mm
Weight
0,9 g
Stylus type
L-stylus cube-shape
Connection Type
M3 XXT
Product note
Additional clamping screw is needed. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
L-styli for measuring undercuts and horizontal bores
Integrated horizontal clamping ring
Allows to clamp the L-elements to standard extensions
Ruby is the most versatile sphere material
Ruby spheres available from 0.2 up to 12 mm
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
