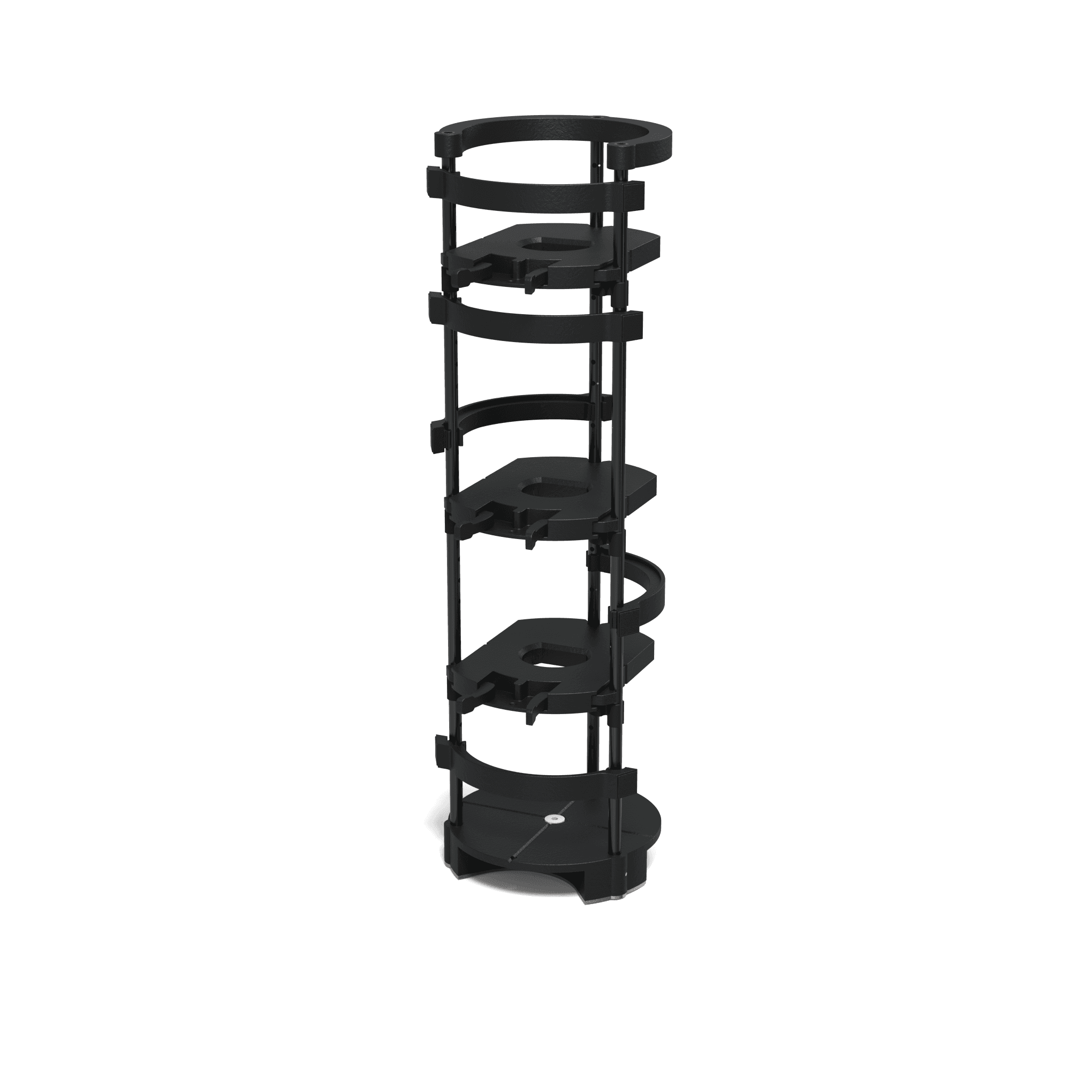

OmniFix CT Tomostage kit foam Ø100x340mm
626140-9400-009
14 876,00 NOK
excluding VAT
In stock
Do you have questions?
Overall
Machine
METROTOM 800, METROTOM 1500, VoluMax 9 titan
Height (H)
340 mm
Diameter
100 mm
Details
- Density of possible contact points (g/cm³)
- 0,93 (plastic parts)
- 1,6 (Carbon fibre)
- Scope of delivery:
- - Levels: 3 (if you need more it is possible to order them separat)
- - Clippers for the levels: 9
- - Stiftening elements: 3
- - Rack: 1
Would you like to maximize your machine utilization for single and serial scans? The ZEISS OmniFix CT Tomostage foam can measure multiple products on two or more levels. Depending on the size of the components, the pallet system enables components to be measured on two or more levels. The pallets have a recess to fix a foam and achieve repeatability of the measurement. The pallet system makes optimum use of the machine's measuring range, which means that the number of times the machine has to be loaded and unloaded is at least halved. The ZEISS OmniFix CT Tomostage is suitable for both single and serial scans that are fully atomized.
Flexibility thanks to level that can be moved up or down.
Adaptability as palett system can be equipped with multiple pallets
Maximum machine utilization through at least half of the machine loading and unloading cycles.
Suitable for both single and serial scans"
