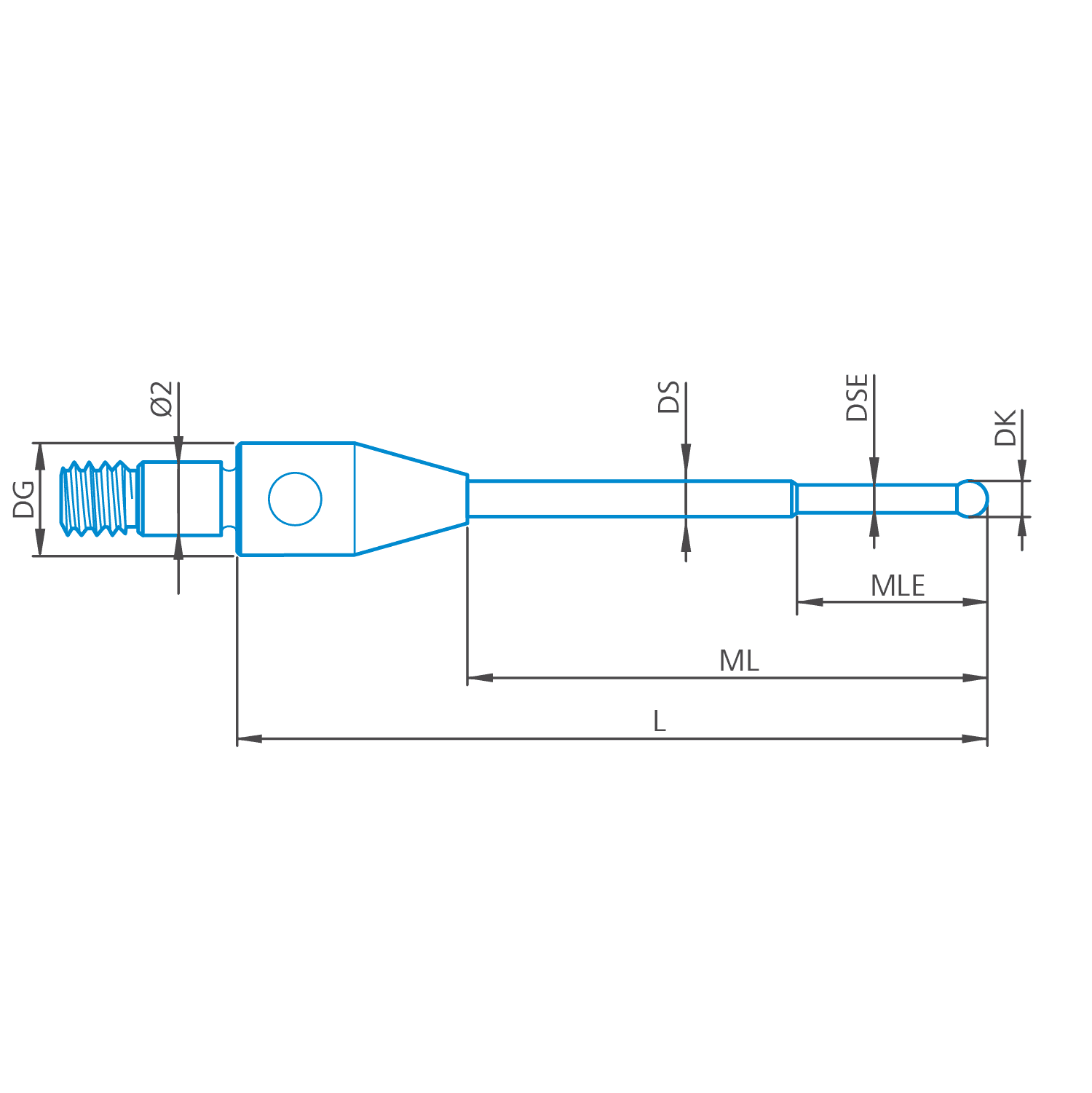

Stylus stepped M2, DK0.5 L19
626120-0215-000
1 583,00 NOK
excluding VAT
Longer delivery time
Do you have questions?
Stylus tip
Diameter sphere (DK)
0,5 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
11,5 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
0,7 mm
2nd Measurement length (MLE)
7,5 mm
2nd shaft diameter (DSE)
0,34 mm
Overall
Length (L)
19 mm
Ø Body (DG)
3 mm
Weight
0,4 g
Stylus type
Stepped Clamping
Connection Type
M2
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Clamping styli that also serves as the the clamping screw for star elements. M2 threads are common for Renishaw touch sensors.
Styli with extended fitting cylinder to clamp M2 star elements
Ruby is the most versatile sphere material
Ruby spheres available from 0.2 up to 12 mm
Carbon fiber shaft with optimum of stiffness, weight, and thermal expansion
Higher stability through stepped shaft
Proven ZEISS quality through high-end manufacturing
