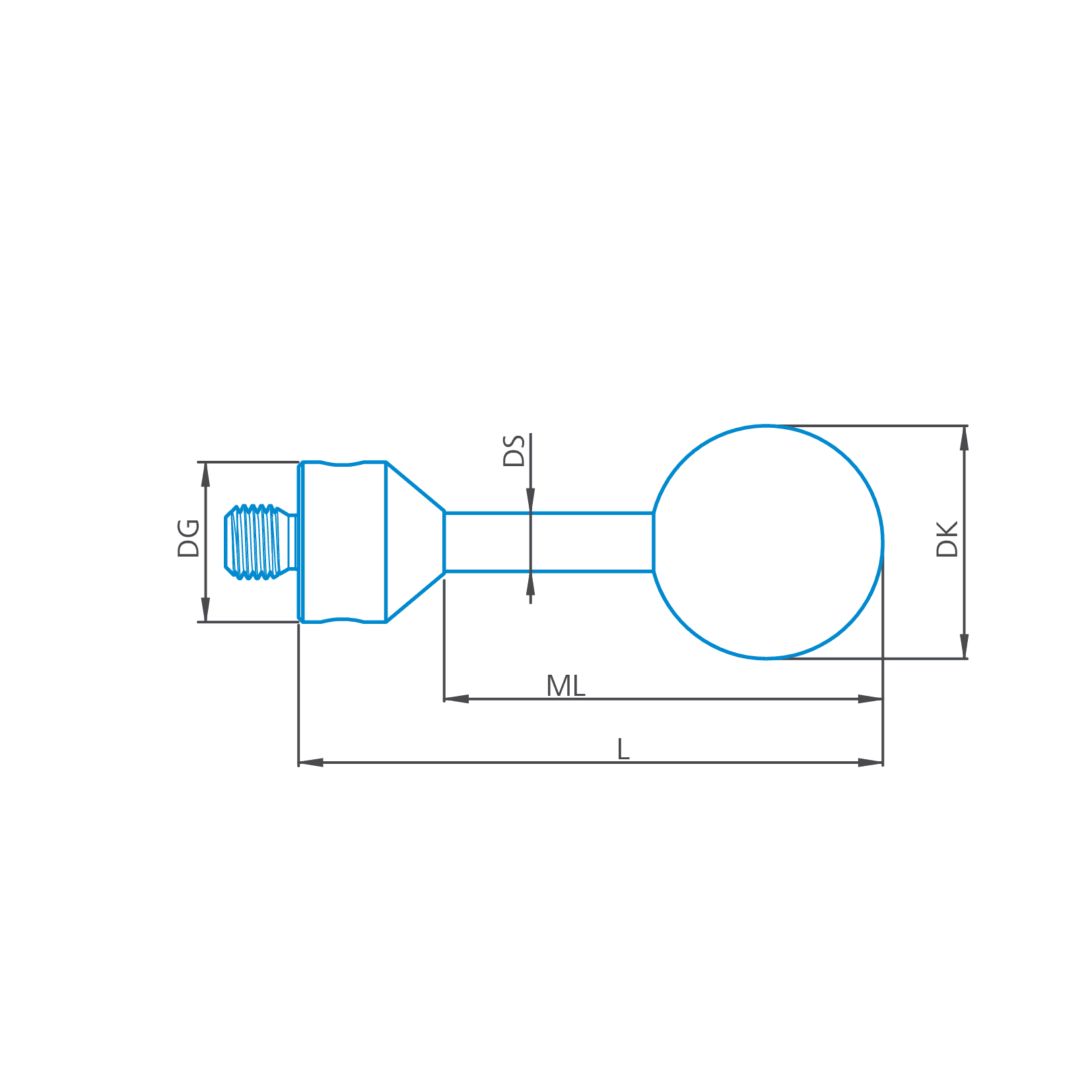

Stylus straight M5, DK14.6 L80
626115-1462-080
3 665,00 NOK
excluding VAT
Longer delivery time
Do you have questions?
Stylus tip
Diameter sphere (DK)
14,6 mm
Tip material
Ceramic
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
67 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
5 mm
Overall
Length (L)
80 mm
Ø Body (DG)
11 mm
Stylus type
Straight
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Custom made styli with a special diameter for very special measuring tasks. M5 thread for VAST active scanning sensors.
Custom made, lightweight ceramic sphere
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
