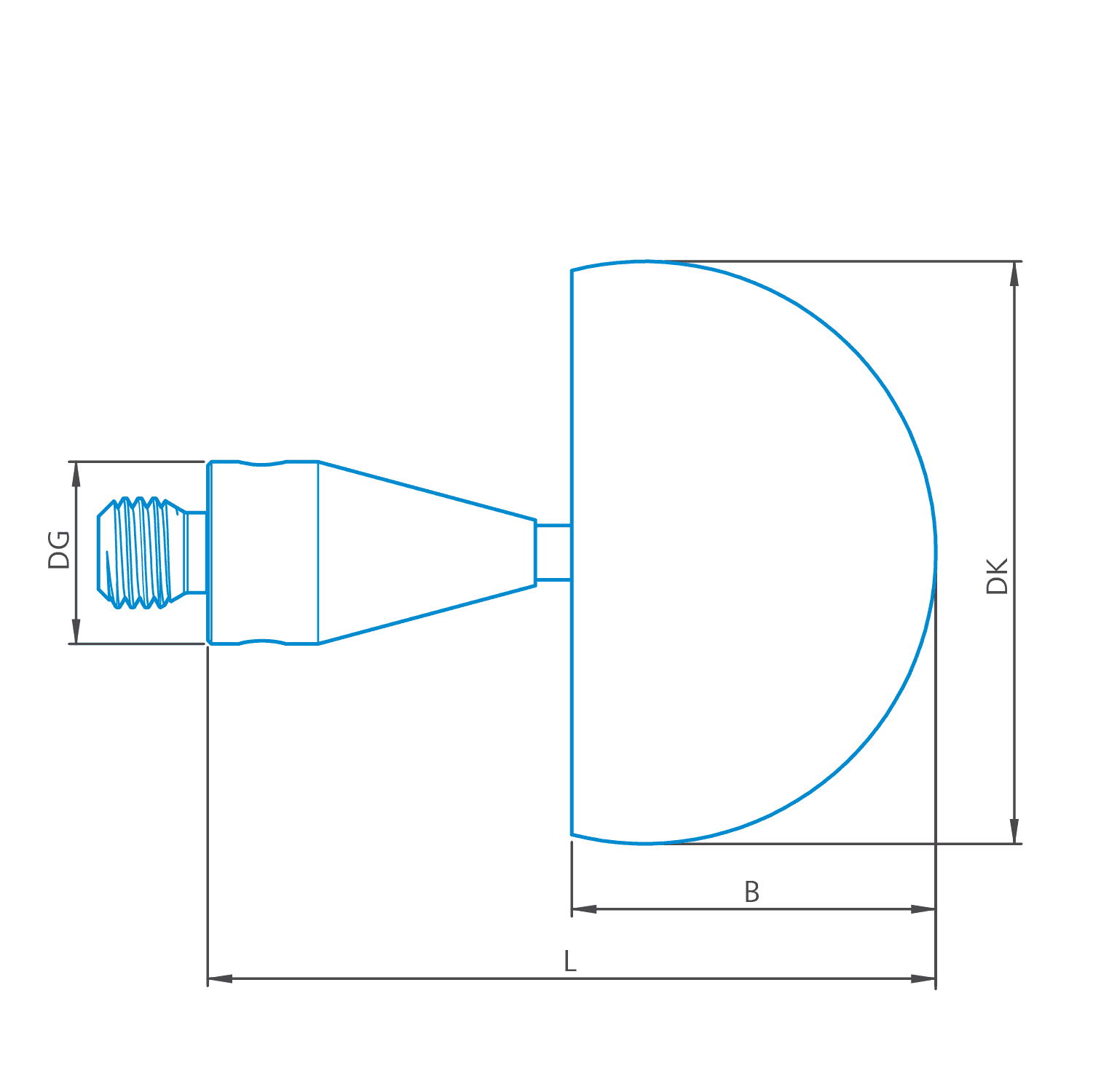

Hemisphere stylus M3 XXT, DK28 L21
626113-5000-067
14 995,00 NOK
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
28 mm
Tip material
Ceramic
Tip geometry
Hollow-Hemisphere
Stylus shaft
Shaft material
Titanium
Width (B)
18 mm
Overall
Length (L)
21 mm
Ø Body (DG)
5 mm
Weight
6,9 g
Stylus type
Hemisphere Stylus
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Hollow hemisphere styli for applications that require a large diameter and lowest weight. M3 thread for ZEISS VAST XXT probes.
M3 XXT features a larger base diameter for greater rigidity
Hemisphere styli with a cut off above the equator
Partially eroded hollow hemisphere with up to 70% weight reduction
Lightweight ceramic sphere for more precision
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
