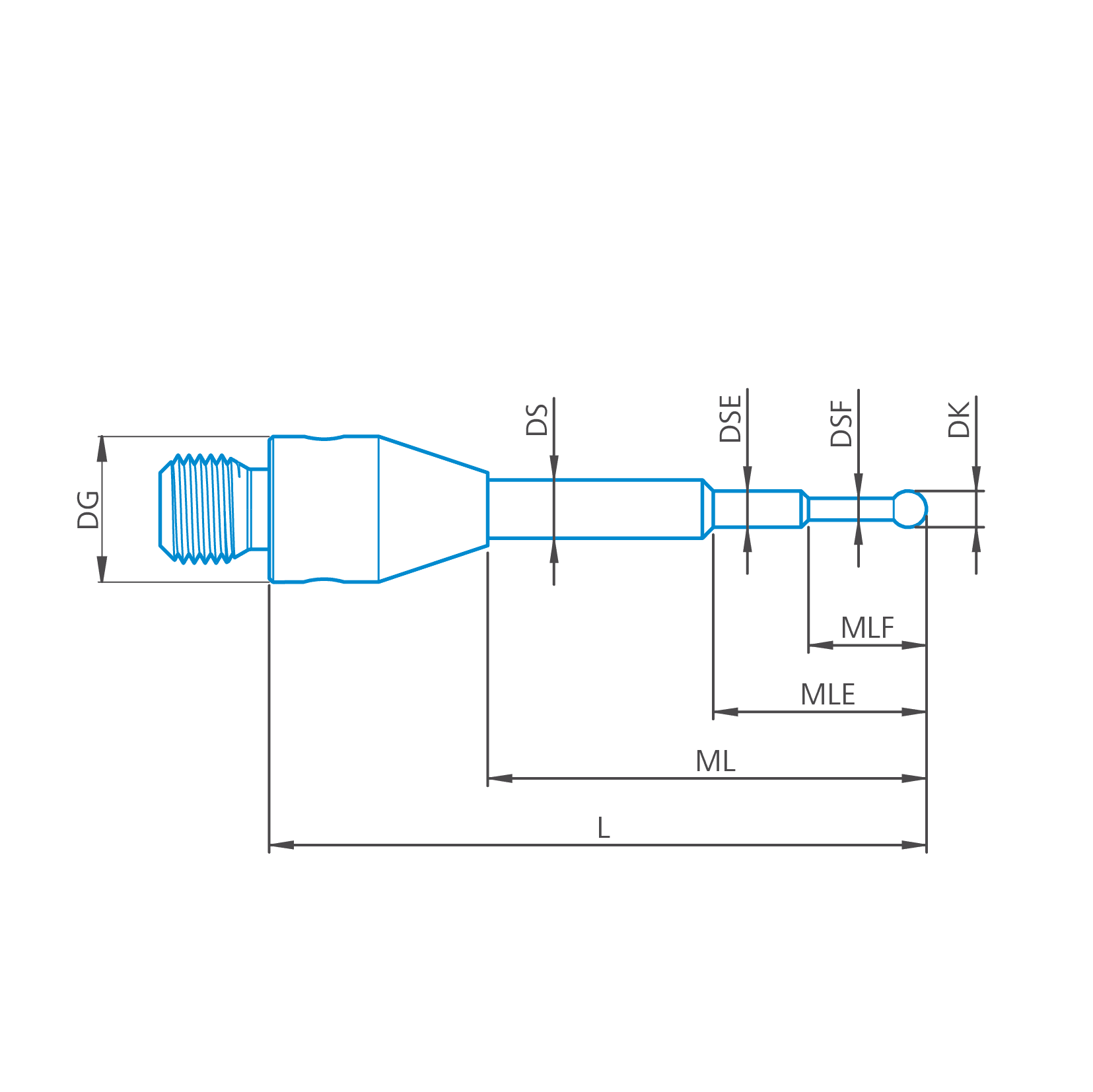

Stylus stepped M3, DK0.3 L24.8
626113-0032-025
1 642,00 NOK
excluding VAT
Expected soon
Do you have questions?
Stylus tip
Diameter sphere (DK)
0,3 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
17,8 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
2nd Measurement length (MLE)
7,3 mm
2nd shaft diameter (DSE)
0,35 mm
3rd measurement length (MLF)
3,3 mm
3rd shaft diameter (DSF)
0,25 mm
Overall
Length (L)
24,8 mm
Ø Body (DG)
4 mm
Stylus type
Stepped
Connection Type
M3
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Standard Styli suitable for all common measuring tasks. M3 thread for ZEISS RST, Renishaw SP and Hexagon HP-S sensors. Not for ZEISS VAST XXT sensors (see product notes).
Ruby is the most versatile sphere material
Ruby spheres available from 0.2 up to 12 mm
tungsten carbide shaft with high rigidity
Higher stability through stepped shaft
Proven ZEISS quality through high-end manufacturing
