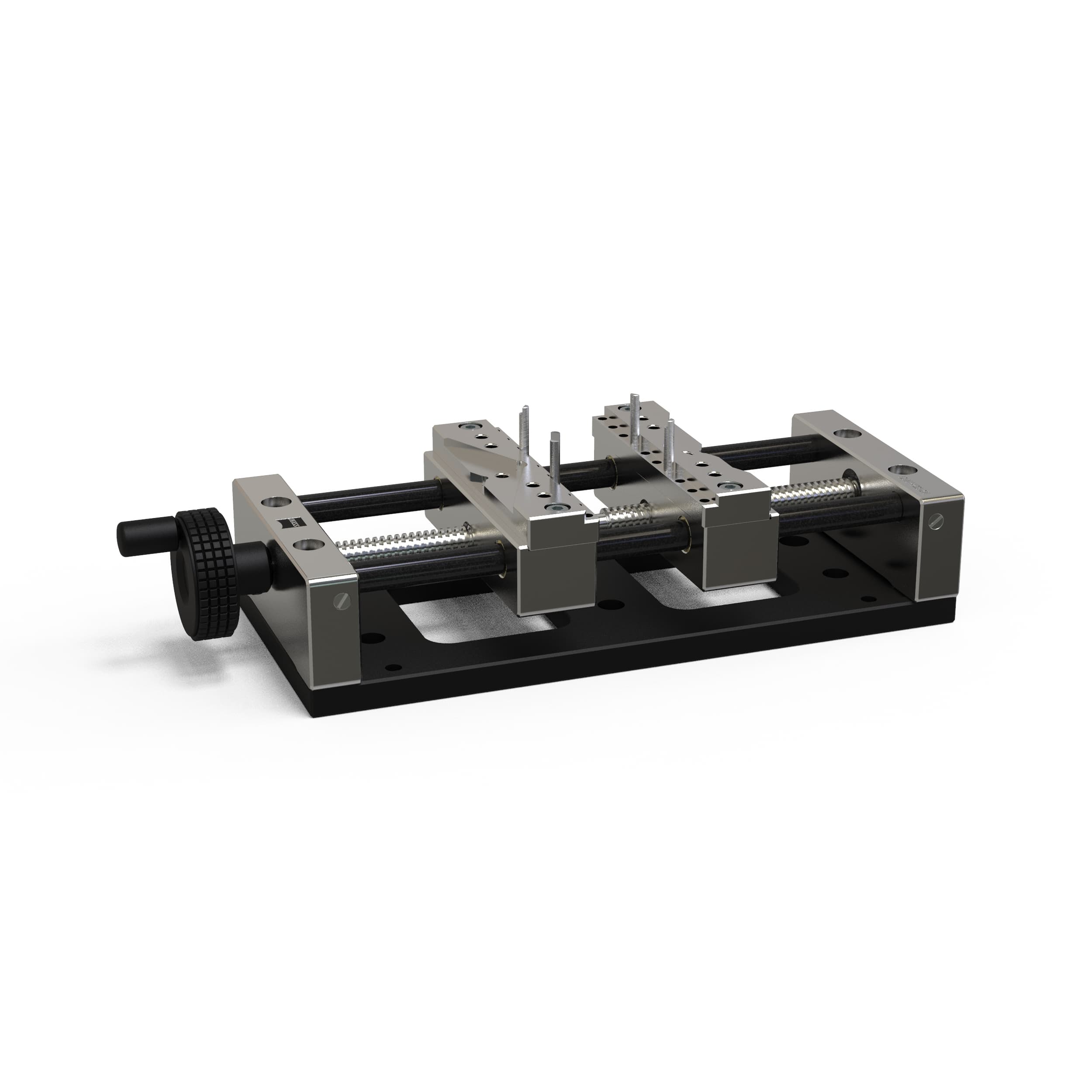

OmniFix metrologist vise 120x270 w. base plate
626109-9220-245
19 180,00 NOK
excluding VAT
In stock
Do you have questions?
Overall
Product type
Vise
Application
Secure
Material
Stainl. St.
Length (L)
270 mm
Width (B)
120 mm
Height (H)
45 mm
Weight
4 500 g
Details
- Outer dimensions: 270 x 120 x 45 mm (LxWxH) + 10 mm base plate
- - Max. clamping width: 160 mm (with standard jaws)
- - Mounting option: Aluminium base plate with mounting holes M12 and M10 for machine tables
- - Weight: 4,5 kg
- Scope of delivery:
- - 1 set = 2 interchangeable jaws, stainless steel, stepped and with prismatic holder and pin holes
- - 1 set of fastening screws M6
- - 1 set = 4 stepped dowel pins 30 mm
Product note
High-quality materials and precise manufacturing ensure reliable performance without any additional maintenance effort, saving you both time and resources.
The ZEISS OmniFix metrological vices enable precise positioning of workpieces for tactile and optical measurement methods. They are highly versatile and suitable for various workpiece geometries, from simple parts to complex shapes. Typical Applications: Tactile: Secure a workpiece during measurements with probing forces to prevent introducing false deviations. Optical: Fixturing workpiece while providing maximum accessibility for capturing all relevant features. Complex Geometries: Flexible adjustment for workpieces that are difficult to fixture.
Material: Lightweight yet stable construction for maximum flexibility.
Design: Ergonomic, open design for optimal accessibility.
Compatibility: Perfectly tailored to ZEISS CMM systems and accessories.
