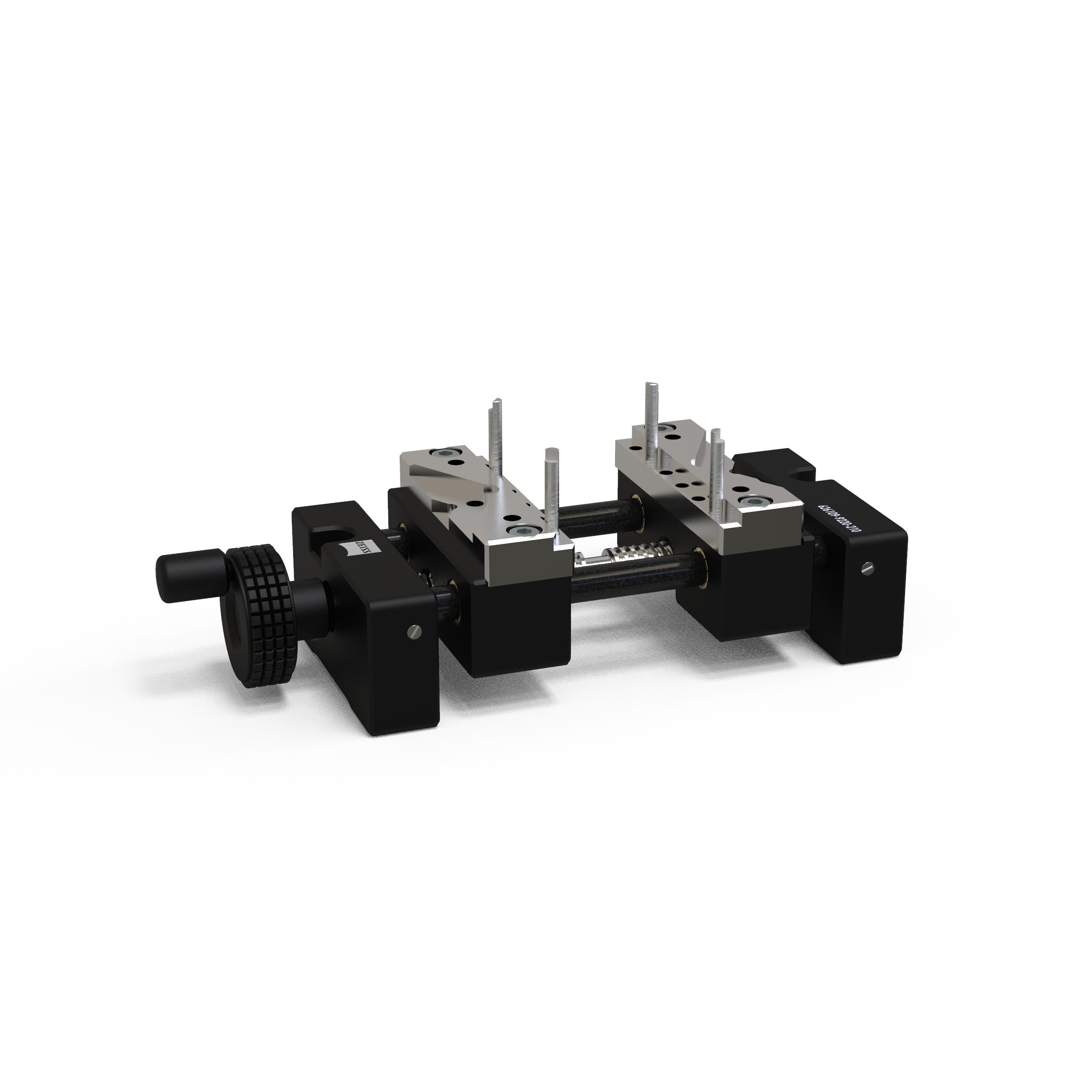

OmniFix metrologist vise 80 x 160 mm, aluminium
626109-9220-210
15 433,00 NOK
excluding VAT
In stock
Do you have questions?
Overall
Product type
Vise
Application
Secure
Material
Black anodized aluminum
Length (L)
160 mm
Width (B)
80 mm
Height (H)
45 mm
Weight
1 300 g
Details
- Outer dimensions: 160 x 80 x 45 mm (LxWxH)
- - Max. clamping width: 50 mm (with standard jaws)
- - Mounting option: 2 through holes for M6 thread, distance 150 mm
- - Weight: 1,3 kg
- Scope of delivery:
- - 1 set = 2 interchangeable jaws, stainless steel, stepped and with prismatic holder and pin holes
- - 1 set of fastening screws M6
- - 1 set = 4 stepped dowel pins 30 mm
Product note
High-quality materials and precise manufacturing ensure reliable performance without any additional maintenance effort, saving you both time and resources.
The ZEISS OmniFix metrological vices enable precise positioning of workpieces for tactile and optical measurement methods. They are highly versatile and suitable for various workpiece geometries, from simple parts to complex shapes. Typical Applications: Tactile: Secure a workpiece during measurements with probing forces to prevent introducing false deviations. Optical: Fixturing workpiece while providing maximum accessibility for capturing all relevant features. Complex Geometries: Flexible adjustment for workpieces that are difficult to fixture.
Material: Lightweight yet stable construction for maximum flexibility.
Design: Ergonomic, open design for optimal accessibility.
Compatibility: Perfectly tailored to ZEISS CMM systems and accessories.
