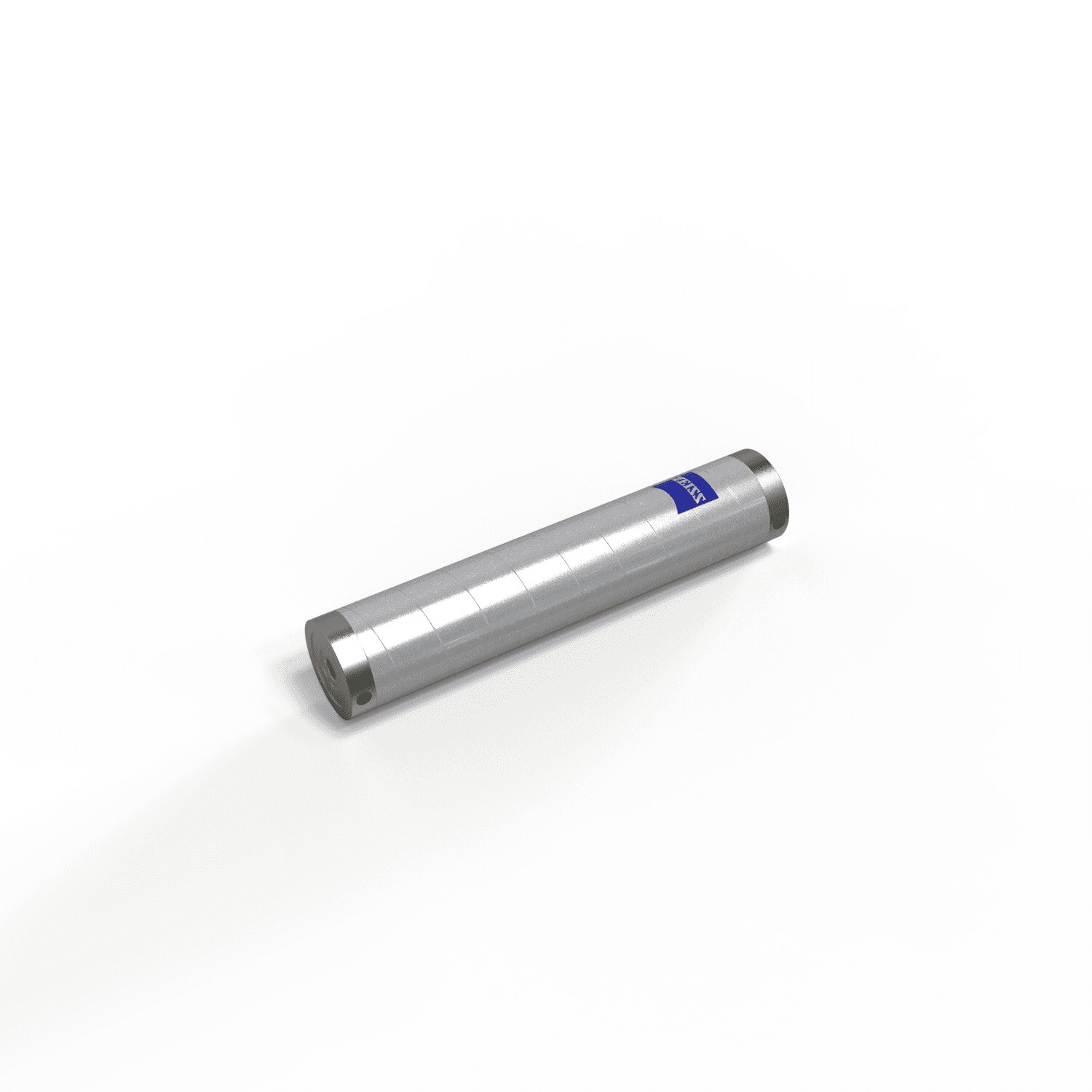

Extension M5-DG20-L670-1x-M5
626107-2670-100
6 413,00 NOK
excluding VAT
Expected soon
Do you have questions?
System Integration
Extension type
Stylus Extension
Connection Type
M5
Connection Type Out
M5
Primary Dimensions
Length (L)
670 mm
Ø Body (DG)
20 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Weight
116 g
Product note
ZEISS REACH CFX® extensions are available in three quality levels, adapted to the respective metrology application. REACH CFX® 1 achieves up to 40% greater rigidity than titanium extensions. REACH CFX® 3 is specially wound from a high-quality carbon fiber with several layers. Rigidity is up to 30% greater than REACH CFX® 1 REACH CFX® 5 is wound from a special high-end carbon fiber and can achieve up to 30% greater rigidity than REACH CFX® 3
Thermally stable standard extension, for most applications. REACH CFX® 3 extensions have a very high level of rigidity which enables reproducible measurements even at high scanning speeds.
REACH CFX® 3 quality for most applications
Lightweight - allows for complex stylus systems
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Carbon fiber tubes - developed by ZEISS
