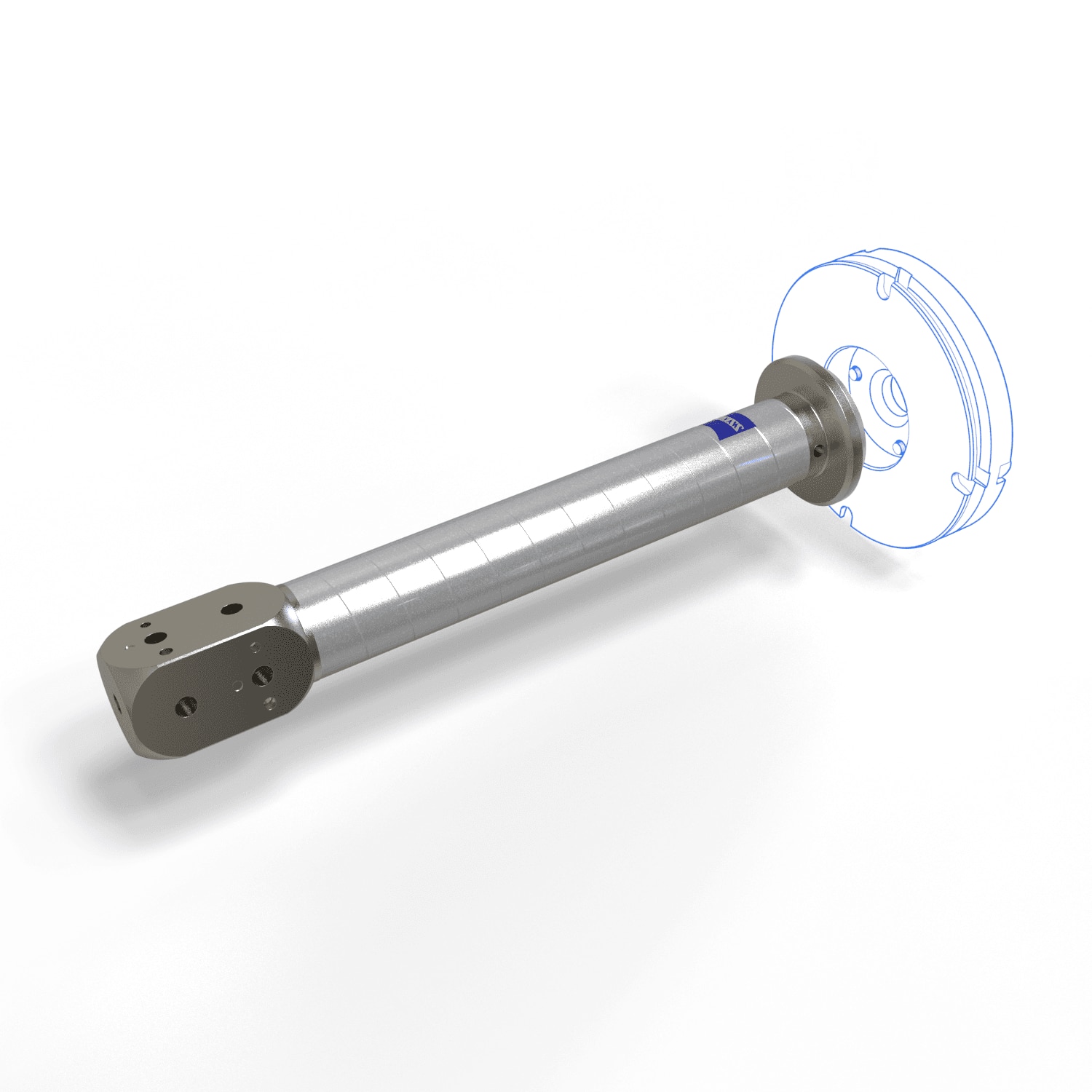

Adapter plate extension, Cube-9x-M5 Pro-L113,1
626107-2050-160
4 609,00 NOK
excluding VAT
In stock
Do you have questions?
System Integration
Extension type
Plate Extension VAST / MT
Connection Type
M5 Pro
Connection Type Out
M5 Pro
Measuring sensor
VAST/MT

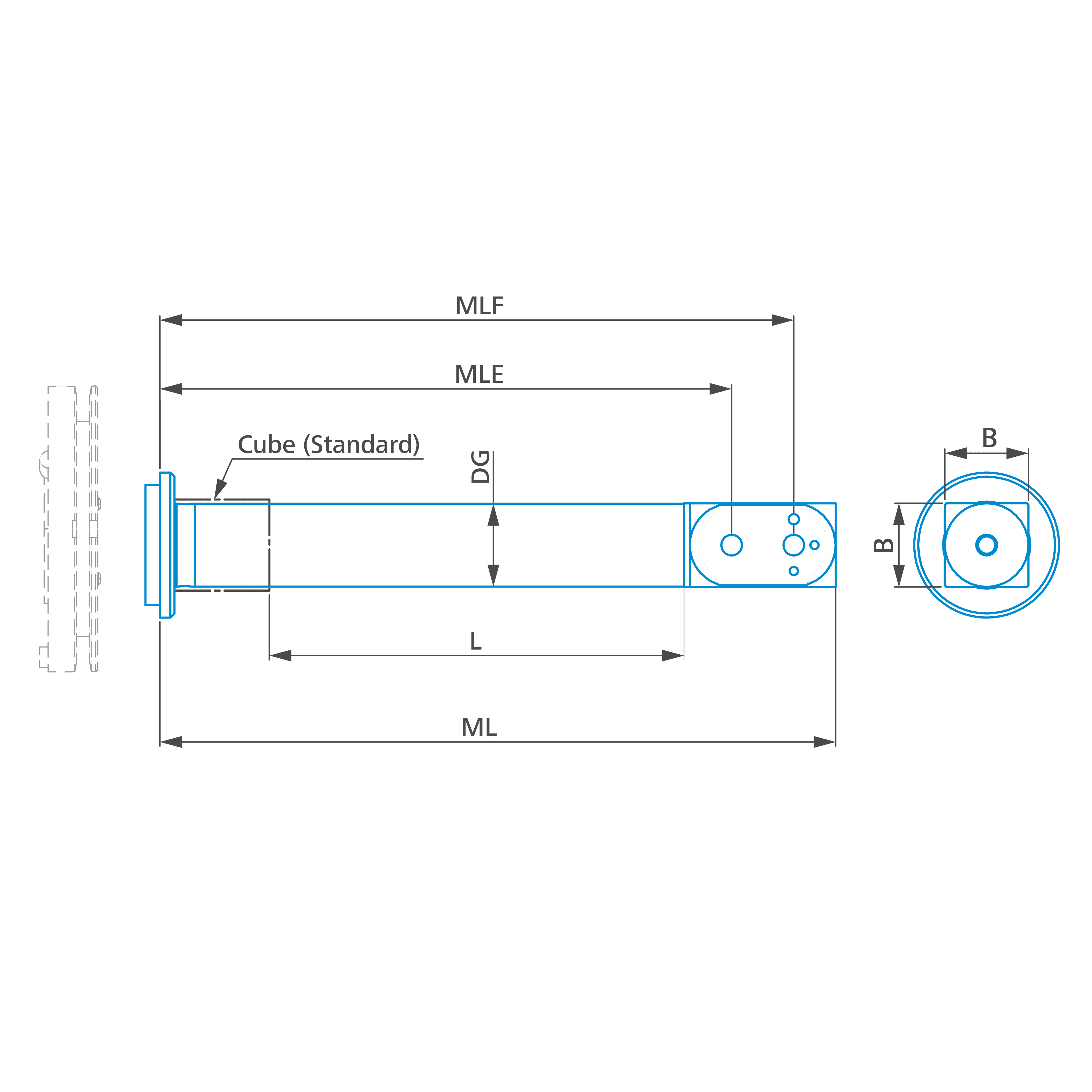

Primary Dimensions
Length (L)
50 mm
Ø Body (DG)
20 mm
Width (B)
20 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Number positions
9
Weight
102 g
Measurement length (ML)
113,1 mm
Product note
ZEISS ThermoFit becomes REACH CFX® 3 - new name, same performance. Over 70% of measurement errors and fluctuations in reproducibility are due to unsuitable extensions. Especially with longer extensions, the influence on the stability of the measurement is very high. Due to the fastening of M5 pro components with the through bolt, no further elements can be attached on the opposite side. Even at a 90° angle, only standard M5 elements can be connected.
Plate extensions are fastened directly to the adaptor plate at the point where the greatest force is applied. The use of plate extensions makes sense wherever it is not necessary to use a cube directly on the adaptor plate. This saves weight and removes a connection, thus increases the rigidity of the overall system. The integrated double 20 mm cube enables the connection of up to 9 additional elements in all main directions. The M5 pro connections increase reliability for production measurements due to torsion-proof mounting.
Plate extension to reduce the number of connections
REACH CFX® 3 quality for most applications
Integrated double cube 20 mm for additional components in all main directions
9 x M5 pro connections provides torsion-proof mounting
Lightweight - allows for complex stylus systems
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Carbon fiber tubes - developed by ZEISS with special winding
