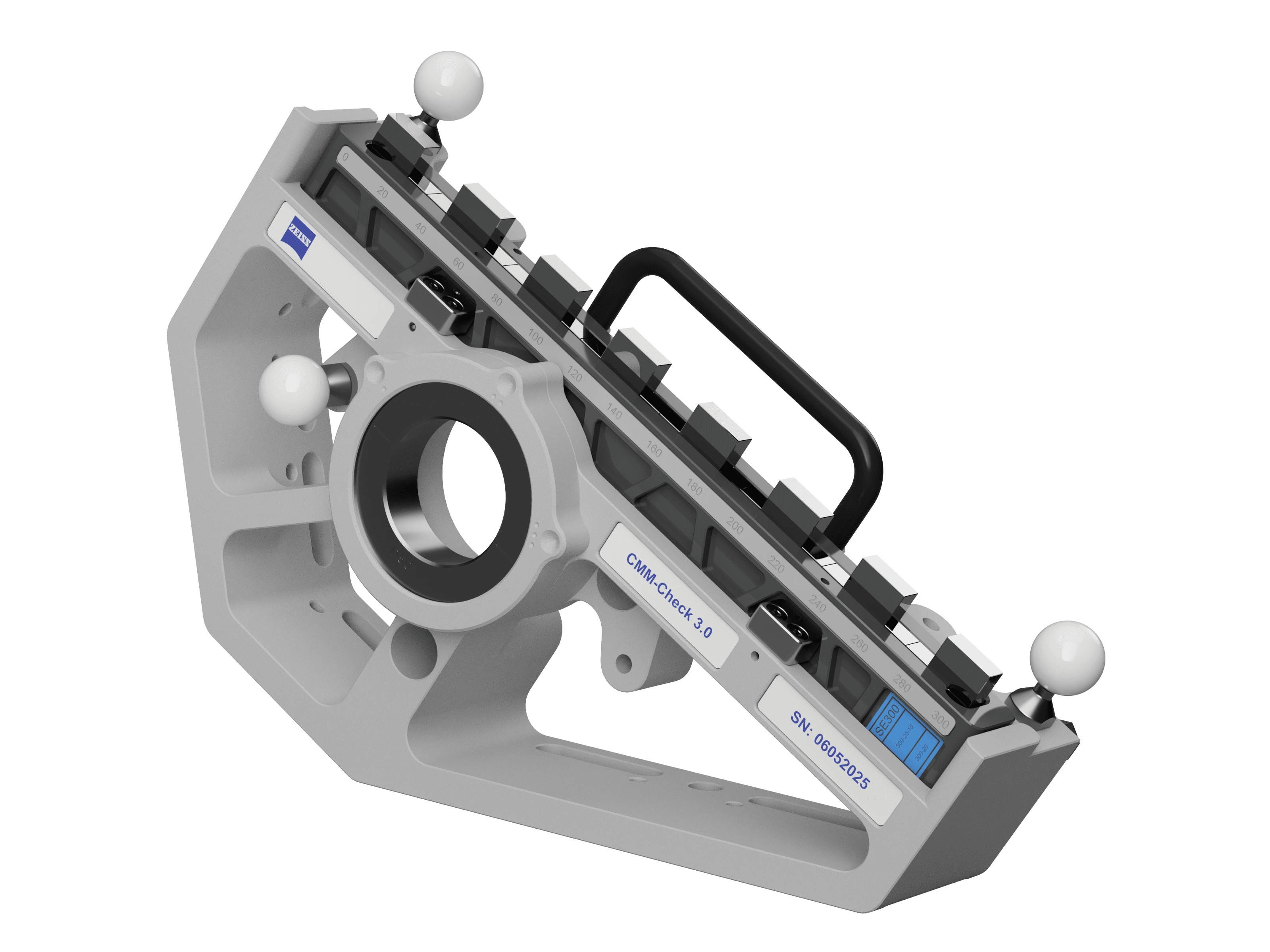

CMM-Check 3.0 RT Artifact
626106-9355-612
252 926,00 NOK
excluding VAT
Longer delivery time
Do you have questions?
Overall
Product type
Artifacts
Details
Suitable for CMMs above MPE E0: 0.5 μm + L/500 (L = Length in mm) and measuring volume of at least 500 x 500 x 500 mm
- Typical machines include DuraMax, SPECTRUM, CONTURA, ACCURA, MICURA, PRISMO
- Not suitable for XENOS
- Package includes:
- - CMM Monitoring Tool evaluation software.
- - 1 Eumetron dongle license per artifact. Supports multiple CMMs
- - 2 additional spheres for rotary table (RT), Diameter 25 mm
- - Step Gauge, Length 300 mm
- - Setting Ring, Diameter 50 mm
- - Sphere, Diameter 25 mm
- - Styli for XT and XXT sensors
- - Alignment unit (angle template and angle indicator)
- - Elevation column for measurement in Z-axis direction and the multiple probe test
- - Robust transport case with lock and foam insert
- - Accredited calibration of all standards in accordance with DIN EN ISO/IEC 17025
- Benefits of CMM Monitoring Tool evaluation software include:
- - Automatically generated measurement plans according to ISO10360
- - Setup instructions and guidelines for inspection intervals with warnings
- - Archived records and structured ISO10360 protocols
- - Administration of multiple artifacts and CMMs
- Remote online training (626106-9355-641) is also available for an additional cost.
Product note
It is recommended to calibrate this artifact every two years.
CMM-Check 3.0 RT is a complete artifact and software solution used to verify and monitor the accuracy of entry Performance CMMs with AB rotary tables between annual calibrations. Checking the CMM accuracy can be added to a quality routine or performed after collisions, environmental changes or system changes. The check provides immediate notice of accuracy errors.
