MSR 2.0 Storage bar X=500
626100-9300-001
1 577,00 NOK
excluding VAT
In stock
Do you have questions?
Overall
Product type
Sensor Rack
Application
Store
Material
Aluminum
Length (L)
590 mm
Details

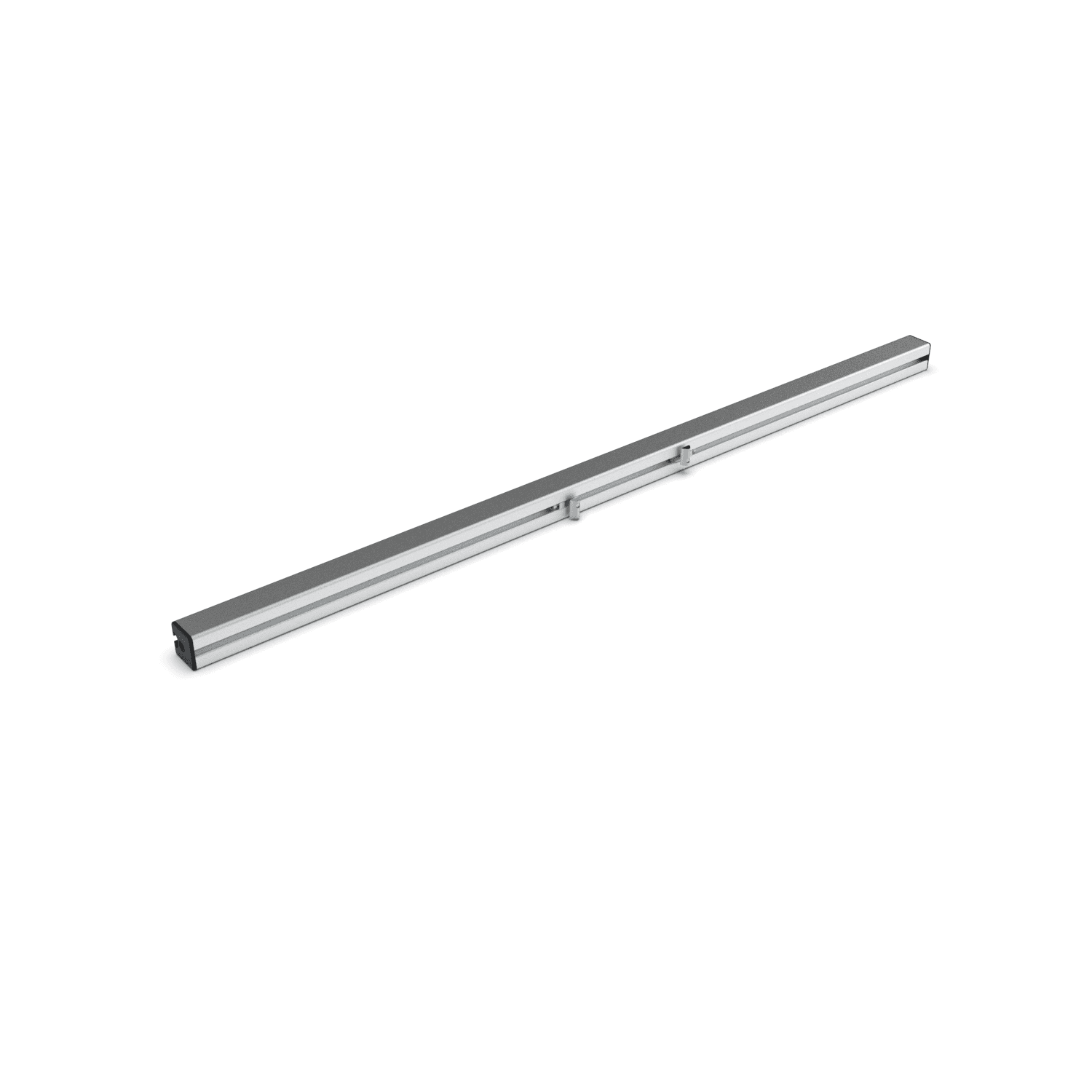

Storage bar X=500 for MSR 2.0 column
- - Actual bar lengh = 590 mm, suitable for measuring range X <gt/>= 500 mm
- - Holds up to 4 VAST probe sockets or 3 triple VAST XXT probe sockets
Product note
Storage bars can only be used in combination with the MSR 2.0 base columns (626100-9300-600 / 626100-9300-800) Storage bars used as a 3rd level will require a storage bar Adapter, sold seperately (626100-9300-005) Probe sockets used to store stylus systems and sensors are sold separately.

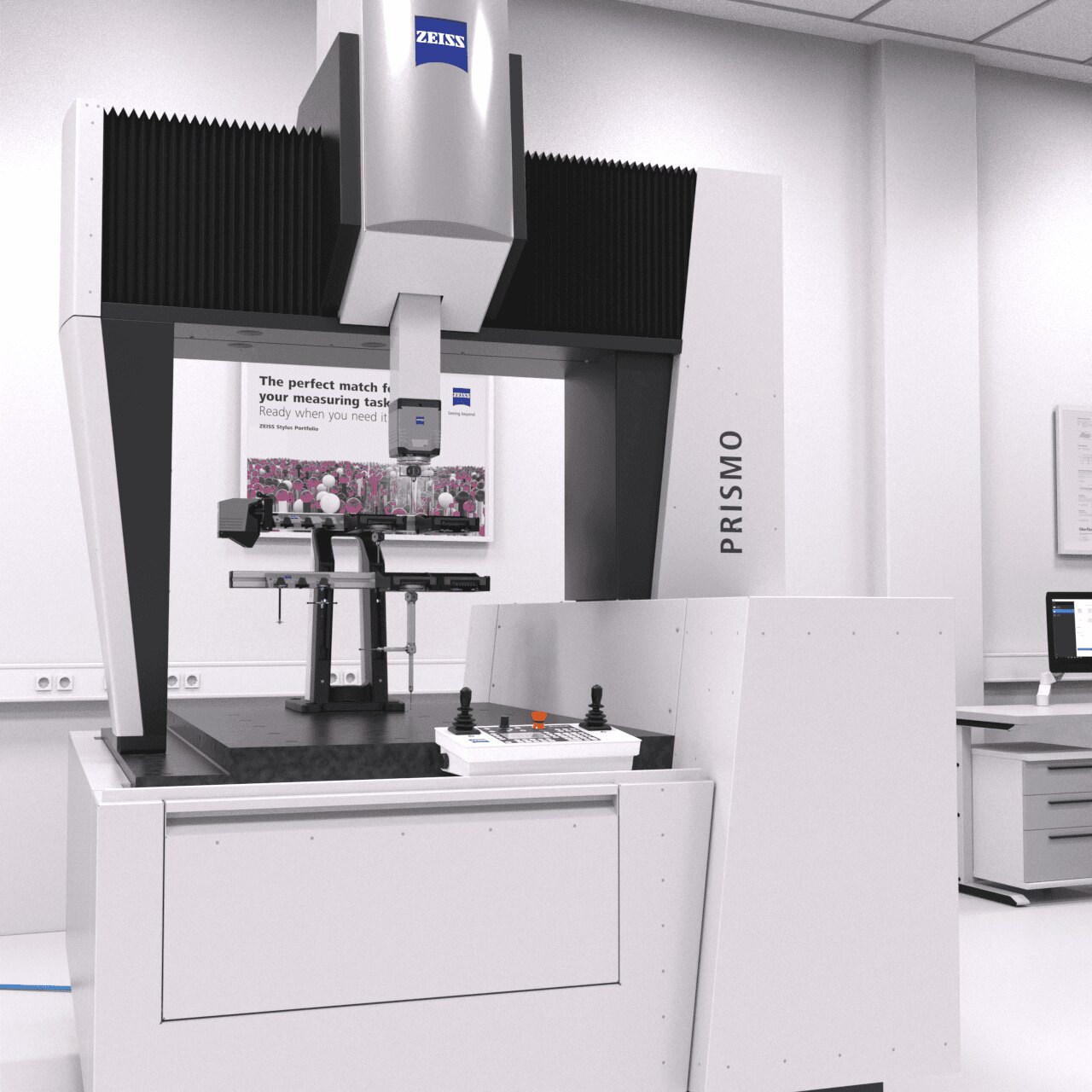

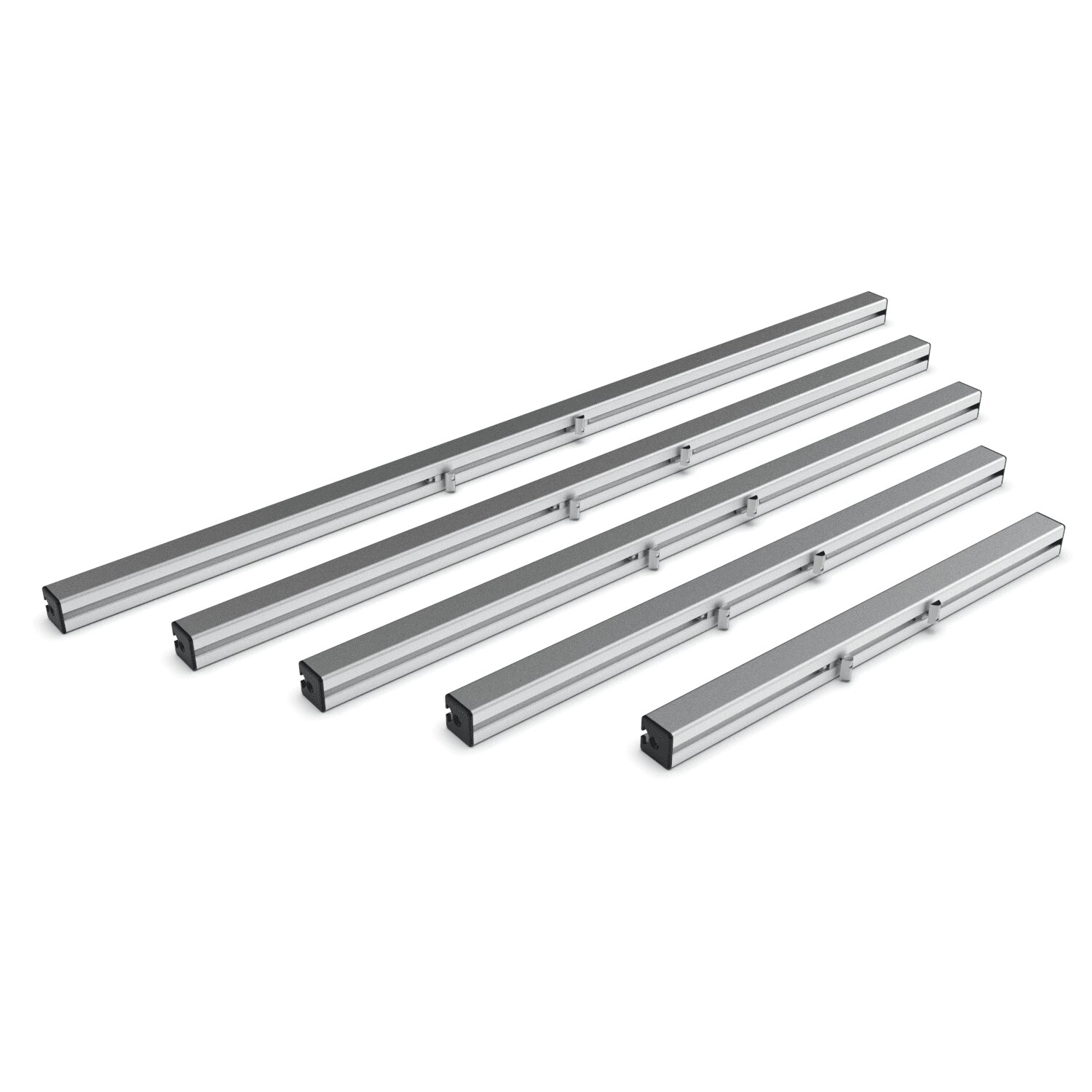

Multi Sensor Racks (MSR) are used to store stylus systems and sensors on the coordinate measuring machine. MSR allows expansions for multiple levels- precisely fitting and versatile. Probe sockets are added and their locations are integrated into the machine software so that the stylus system change is carried out automatically. All ZEISS configurations are supported by suitable probe sockets unique to the sensor type. The MSR 2.0 consists of the 3 main components 1 - MSR column in various heights, 2 - Storage bars in various widths (for mounting on the MSR column), 3 - Probe sockets that hold various stylus systems.
Simple installation
Optimized for machine size
Horizontally adjustable on column
