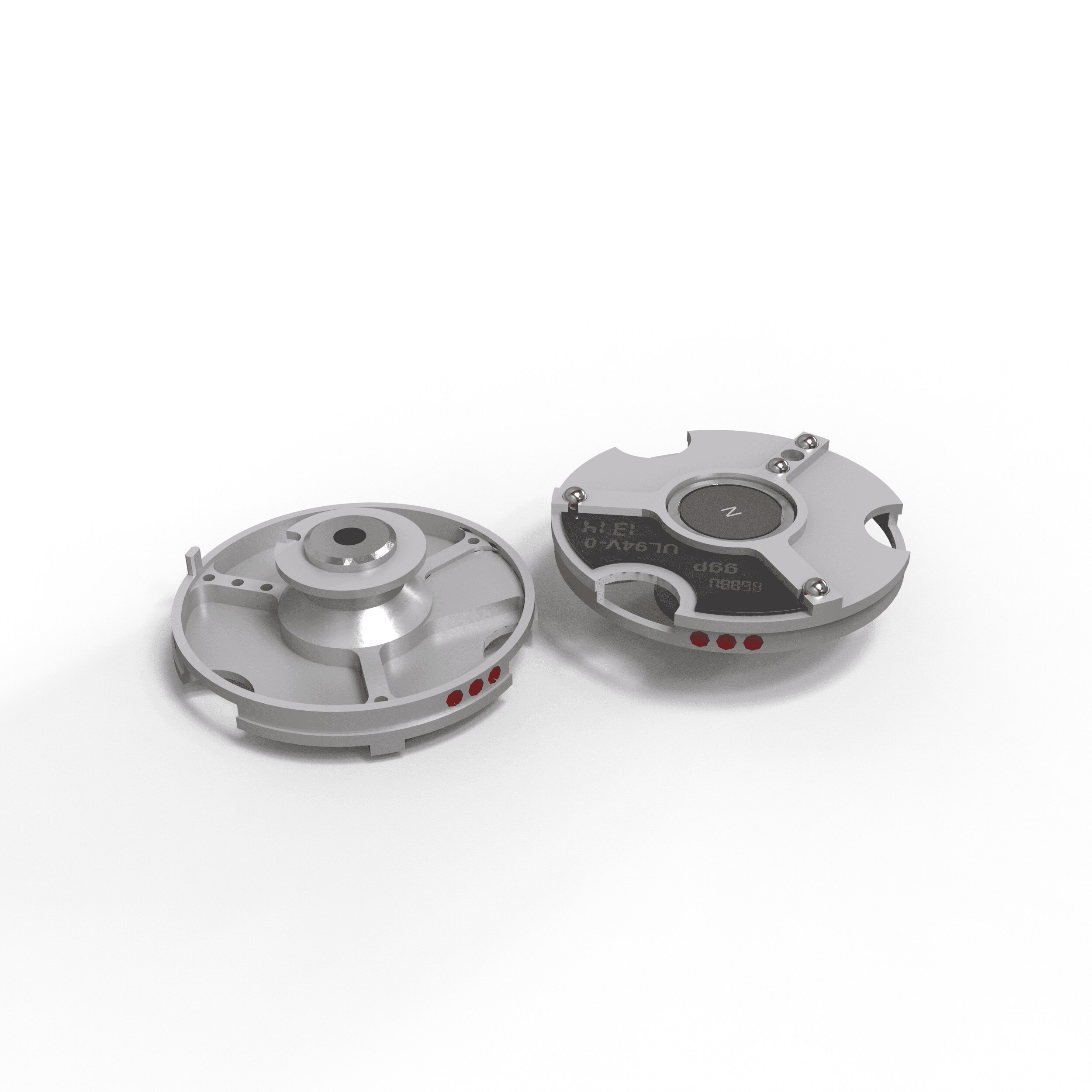

Reference adapter plate VAST XXT TL3, adapter-1x-M3
620161-8279-000
4 054,00 NOK
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3 XXT
Connection Type Out
M3 XXT
Measuring sensor
VAST XXT TL3
Detailed Specifications
Number positions
1
Weight
4,6 g
Product note
The features of ZEISS measuring machines and the guaranteed machine specifications are only guaranteed when using original ZEISS exchangeable plates. There is a not insignificant negative influence on accuracy and stability if adapter plates from unknown / non-certified manufacturers are used. Check the necessity of performing the DeviceActivator when using a new ZEISS adapter plate. Further information and operating instructions are available at the following link in the Download Center: https://portal.zeiss.com/download-center/softwares/imt
The adapter plate forms the central interface between the probe head and the stylus system. The stylus system is fixed via an integrated cube. Zeiss CFX extensions can be used for optimization. The Zeiss adapter plate is read out and recognized on the probe head when it is picked up. For a CNC-controlled automatic stylus system change, the adapter plate (including the stylus system) is placed in the XXT probe socket (620161-8510-000) or the XXT single probe soceket (620161-8511-000), which is located on the storage rack (MSR / ProMax). This adapter plate has a fixed ZEISS Reach CFX1 extension. This reference adapter plate is marked with a red ring. Use both the adaptor plare and the master probe exclusively for calibrating the calibration sphere (reference measurement).
Reference adapter plate VAST XXT TL3 with highest accuracy Gold-coated contact spheres for stable data transmission Avoiding operator errors and incorrect measurements Future-proof with maximum performance Guaranteed machine and software functionality
