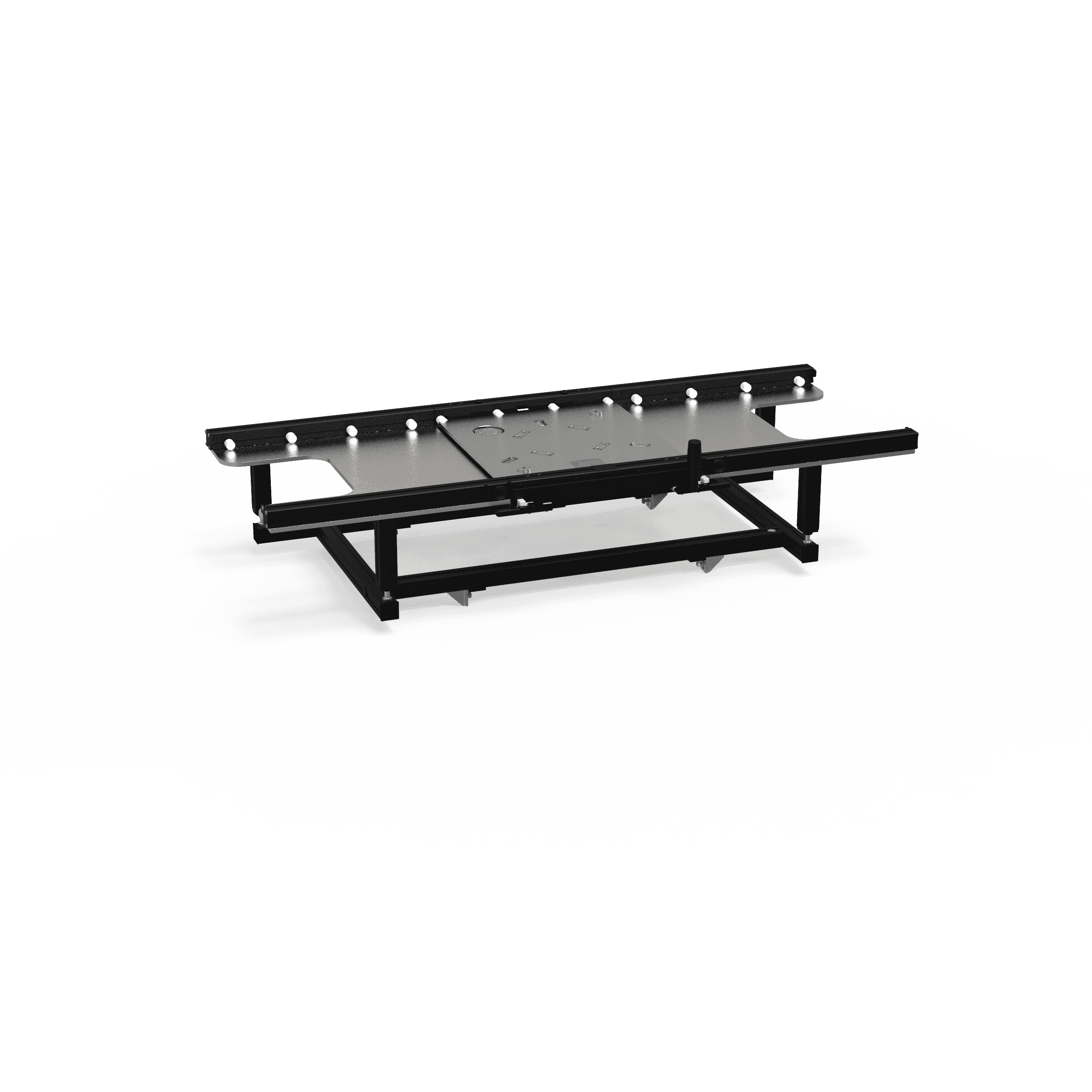

ZEISS pallet feed Duplex for mounting of two pallets with the dimensions 500 mm x 500 mm.

• - Prepared for temperature sensor interface (TSI). Temperature sensors and interfaces are not included.
• - Installation height: 56 mm (reduction of measuring range in Z).
• - Maximum total load per pallet: 30 kg.
• - Increase of the total maximum loading to 50 kg, unless setup is done during the measuring process.
• - High throughput and machine capacity utilization due to simultaneous setup during the measuring process.
• - Fast, ergonomic workpiece changevia a simple shift movement into the measuring volume.
• - Safety ensured by pallet fixation equipment and unlocking lever.
• - Safe, secure positioning via lowering onto three-point support.
• - CMM protection by reciprocal lockingof pallet feed and CMM.
• - Simple and direct screw connection on CMM.
• - Incl. connection cable [Harting plug].
• - Documentation in English and German.
