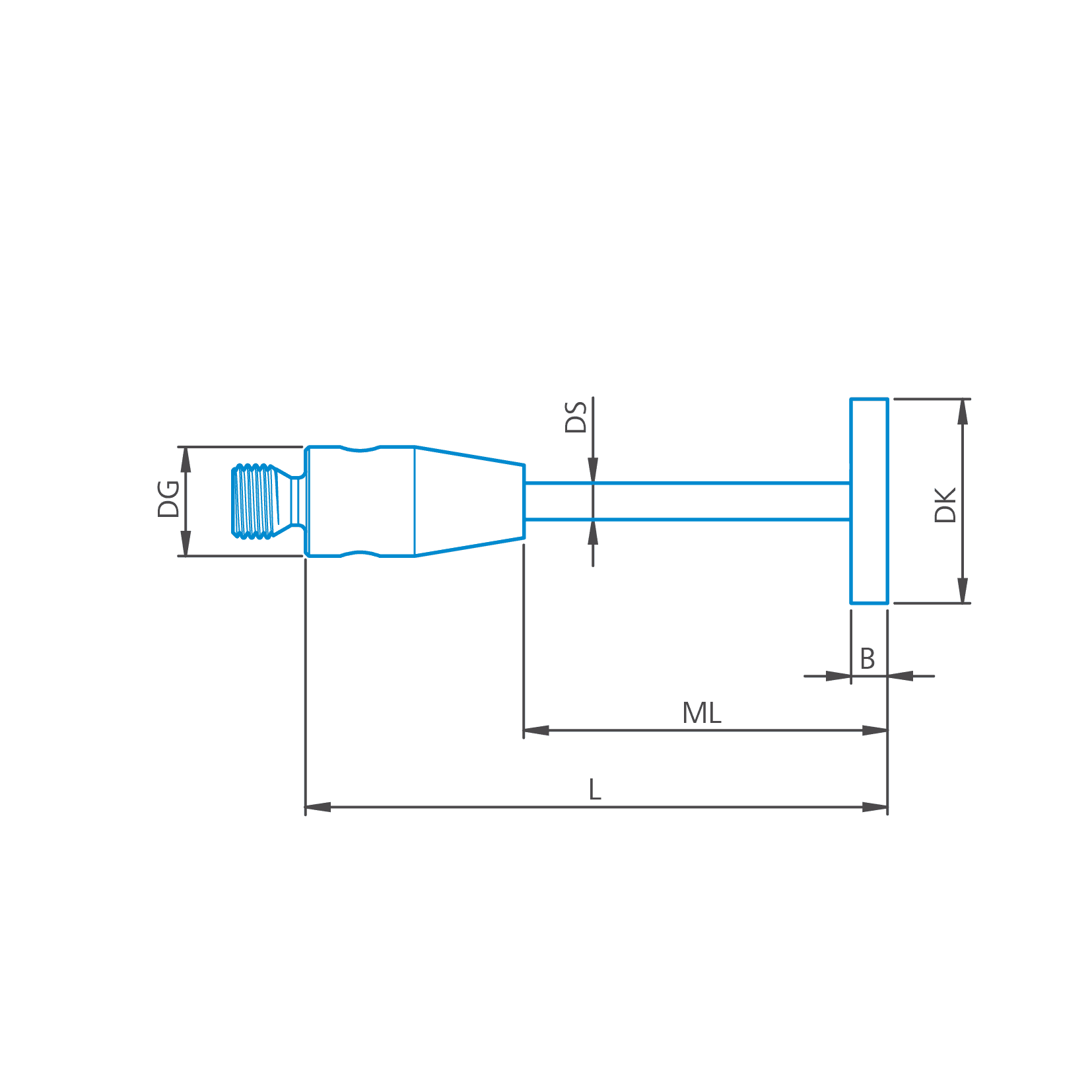

Disk stylus M2, DK8 L32
602030-8201-000
881,00 NOK
excluding VAT
In stock
Do you have questions?
Stylus tip
Diameter sphere (DK)
8 mm
Tip material
Ceramic
Tip geometry
Disk
Stylus shaft
Measurement length (ML)
19 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1,5 mm
Width (B)
1,5 mm
Overall
Length (L)
32 mm
Ø Body (DG)
3 mm
Weight
1,4 g
Stylus type
Disk Stylus
Connection Type
M2
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Disc styli to measure cylindrical workpieces with undercuts, grooves or recesses. M2 threads are common for Renishaw touch sensors.
Thin section of a sphere to aid in accurate qualifications and measurement
Lightweight ceramic disc
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
