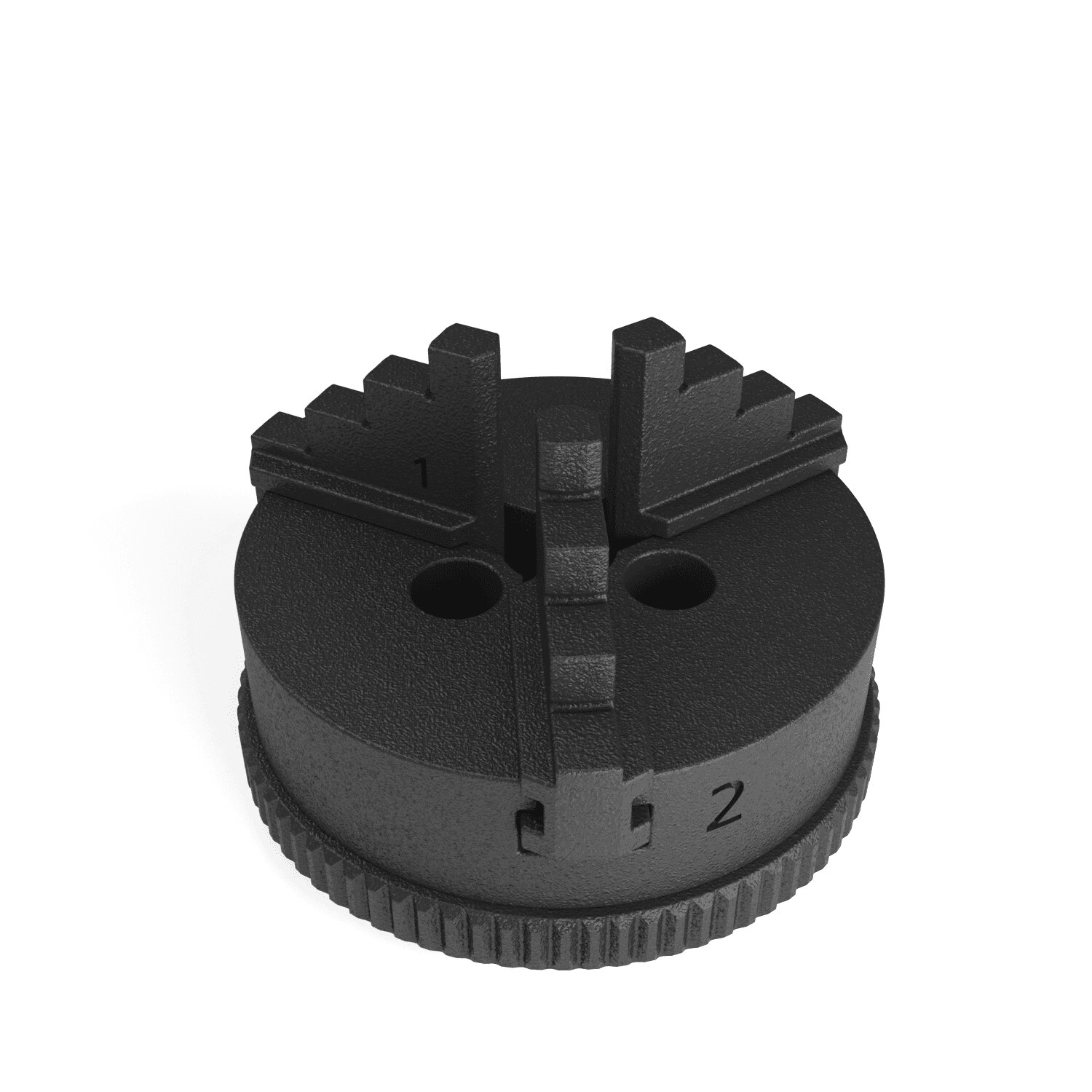

OmniFix CT plastic scroll chuck Ø35
626170-0011-165
EUR 199.00
excluding VAT
In stock
Do you have questions?
Overall
Machine
METROTOM 1, METROTOM 6 scout, METROTOM 800, METROTOM 1500, VoluMax 9 titan
Details
Plastic jaw chuck with reversible jaws for internal and external clamping.
- - Outside diameter 35 mm
- - Internal clamping (8 - 35 mm)
- - External clamping (1 - 40 mm)
- Scope of delivery:
- - 1 x plastic jaw
- - 3 reversing jaws Set of fixing screws M4 (plastic and metal)
OmniFix CT Plastic Scroll Chuck is ideal for quick and easy holding of cylindrical parts. This Ø35 mm 3-jaw plastic scroll chuck is made with low density plastic material. The absence of any metal in the scroll chuck minimizes CT scanning interference with plastic or metal workpieces. The OmniFix CT Plastic Ring Chuck can be combined with the Plastic Articulating Joint 626170-0011-156 (not included), to tilt the chuck to a certain angle.
Low Density Plastic
Optimal contrast when scanning through metal parts
No damage to sensitive components
No tools required
