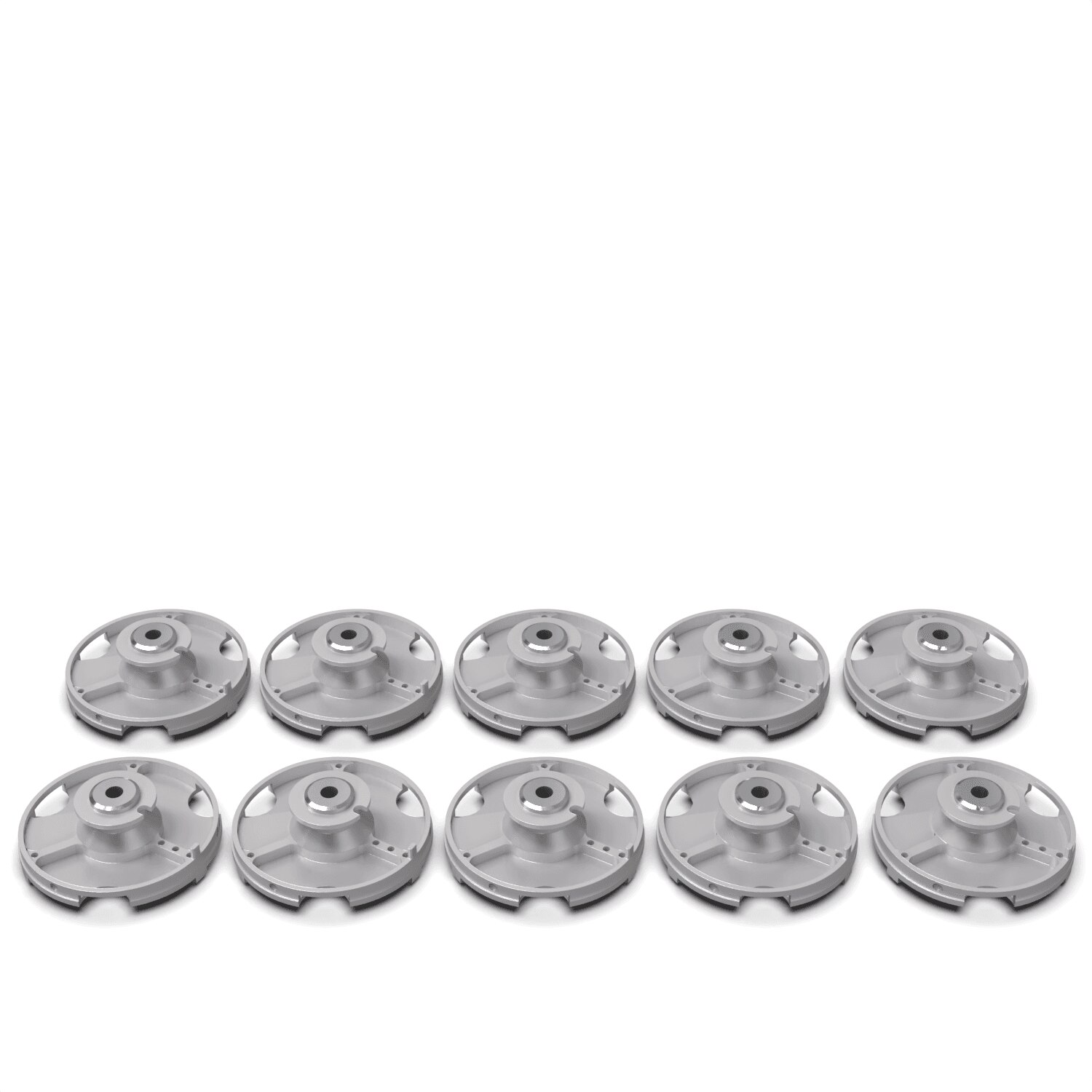

Adapter plate Bundle 10 VAST XXT TL3, adapter-1x-M3
626119-0001-112
EUR 2,520.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3 XXT
Connection Type Out
M3 XXT
Measuring sensor
VAST XXT TL3
Detailed Specifications
Number positions
1
Weight
46 g
Product note
The benefits of ZEISS measuring machines and the guaranteed machine specifications are only valid when using genuine ZEISS adaptor plates. When using aftermarket adaptor plates the negative influence on accuracy and stability is not insignificant. When adding new adaptor plates in CALYPSO, if you receive “Cmm error 479…” this can be corrected by downloading and running the latest DeviceActivator from https://portal.zeiss.com/download-center/softwares/imt
The adapter plate provides an interchangeable interface between the sensor and a stylus system. Integrated M3 titanium inserts or CFX extensions provide connection points add styli to suite any measurement application. The adapter plate then allows a manual or automatic stylus systems change when using a Multi Sensor Rack (MSR). Only ZEISS OEM adapter plates support the full functionality of software, accuracy and machine optimization.
ID chip label 100% identification of the correct stylus system in the firmware/software to avoid collisions and incorrect measurements.
Safe handling of the stylus system (no incorrect pick-up possible in the MSR)
Improvement of system performance through more robust data transmission
More information on the control panel display (name, coordinates, measuring force, angle)
