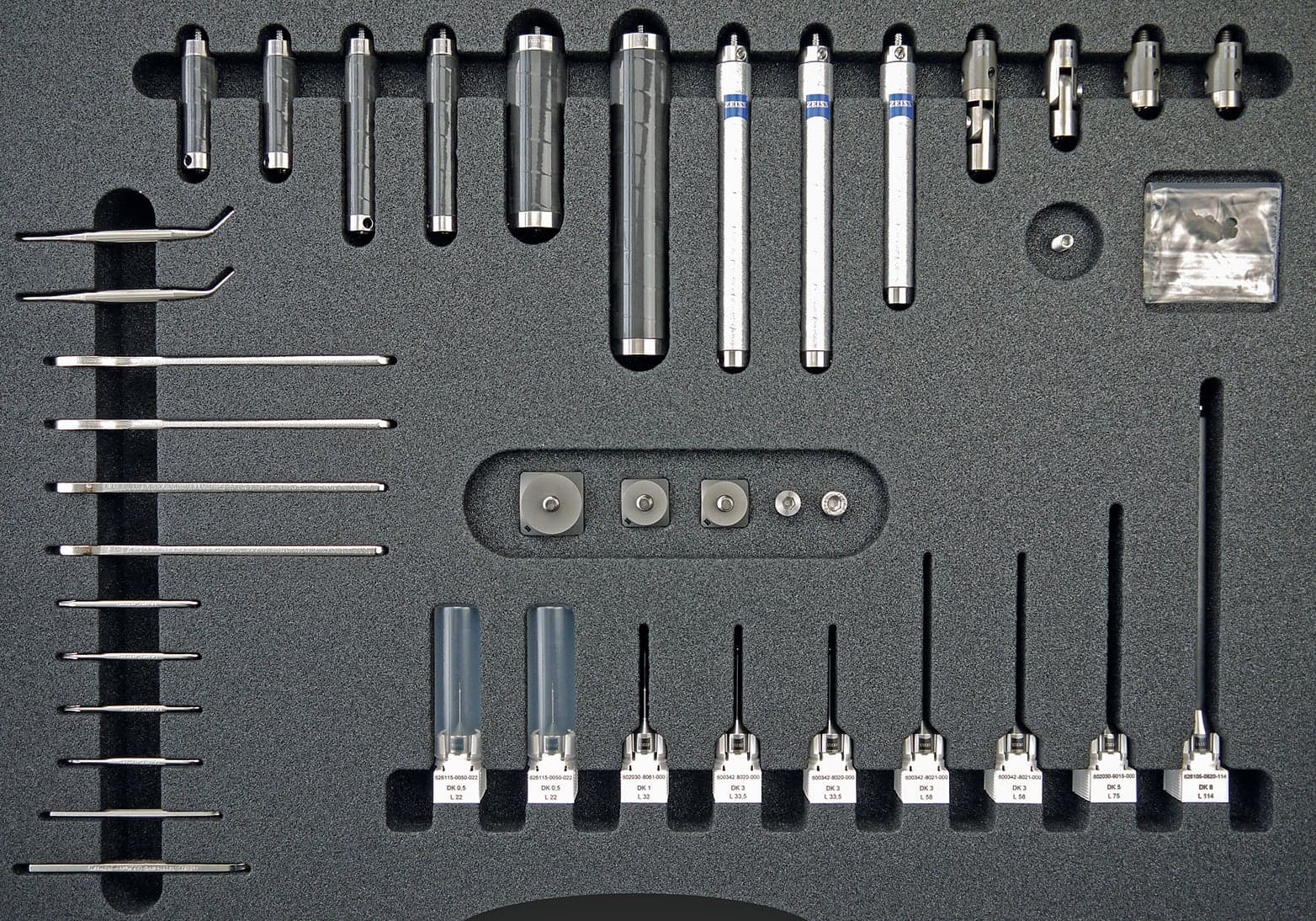

Stylus Kit, M5, 41 pcs
626115-9110-100
EUR 1,600.00
excluding VAT
In stock
Do you have questions?
Overall
Application
Tactile
Product type
Kit
Connection Type
M5
Details
The stylus kit contains an extended equipment of various styli with tungsten carbide shaft and ruby ball, REACH CFX 1 and REACH CFX 3 extensions with various diameters, connection elements and tooling.
- 2x 600341-8261-000 stylus extension, M5, REACH CFX 1, DGE11, LE40
- 2x 600341-8262-000 stylus extension, M5, REACH CFX 1, DGE11, LE60
- 1x 600341-8424-000 stylus extension, M5, REACH CFX 1, DGE20, LE60
- 1x 600341-8422-000 stylus extension, M5, REACH CFX 1, DGE20, LE100
- 2x 626107-1100-100 stylus extension, M5, REACH CFX 3, DGE11, LE100
- 1x 626107-1080-100 stylus extension, M5, REACH CFX 3, DGE11, LE80
- 1x 626105-6280-040 rotary-knuckle-joint, M5, titanium, DG11, L40
- 1x 600342-9002-000 knuckle joint, M5, titanium, DG11, L30 with screw
- 2x 626105-6280-020 rotary joint, M5, titanium, DG11, L20
- 1x 626119-0001-019 set of screws for cone adapter, M3 (10 pcs.)
- 2x 602030-0222-000 pin wrench, DG5, DS2,9, L70 2x 626109-0013-000 hook wrench, DG20
- 2x 626109-0012-000 hook wrench, DG11
- 4x 626109-0035-000 torx wrench T6, angled, steel
- 1x 602030-0021-000 hex wrench DIN 911, BSW 2,5
- 1x 000000-0015-248 hex wrench DIN 911, BSW 4
- 1x 600341-8002-000 cube, M5, titanium, B20
- 2x 600341-8361-000 cube, M5, titanium, B20
- 1x 626109-0016-000 screw for cube, M5, Inox, L20, ML20
- 1x 626109-0015-000 screw for cube, M5, Inox, L20, ML15
- 2x 626115-0050-022 stylus with thread, M5, shouldered, tungsten carbide, ruby, DK0,5, L22
- 1x 602030-8061-000 stylus with thread, M5, shouldered, tungsten carbide, ruby, DK1, L32
- 2x 600342-8020-000 stylus with thread, M5, tungsten carbide, ruby DK3, L33,5
- 2x 600342-8021-000 stylus with thread, M5, tungsten carbide, ruby, DK3, L58
- 1x 602030-9015-000 stylus with thread, M5, tungsten carbide, ruby DK5, L75
- 1x 626105-0820-114 stylus with thread, M5, REACH CFX 3, ruby, DK8, L114
626107-1040-300
626107-1040-300
Item(s): 2
626107-1060-300
626107-1060-300
Item(s): 2
626107-2060-300
626107-2060-300
Item(s): 1
626107-2100-300
626107-2100-300
Item(s): 1
626107-1100-100
626107-1100-100
Item(s): 2
626107-1080-100
626107-1080-100
Item(s): 1
626105-6280-040
626105-6280-040
Item(s): 1
600342-9002-000
600342-9002-000
Item(s): 1
626105-6280-020
626105-6280-020
Item(s): 2
626119-0001-019
626119-0001-019
Item(s): 1
602030-0222-000
602030-0222-000
Item(s): 2
626109-0013-000
626109-0013-000
Item(s): 2
626109-0012-000
626109-0012-000
Item(s): 2
626109-0035-000
626109-0035-000
Item(s): 4
602030-0021-000
602030-0021-000
Item(s): 1
000000-0015-248
000000-0015-248
Item(s): 1
600341-8002-000
600341-8002-000
Item(s): 1
600341-8361-000
600341-8361-000
Item(s): 2
626109-0016-000
626109-0016-000
Item(s): 1
626109-0015-000
626109-0015-000
Item(s): 1
626115-0050-022
626115-0050-022
Item(s): 2
602030-8061-000
602030-8061-000
Item(s): 1
600342-8020-000
600342-8020-000
Item(s): 2
600342-8021-000
600342-8021-000
Item(s): 2
602030-9015-000
602030-9015-000
Item(s): 1
626105-0820-114
626105-0820-114
Item(s): 1
