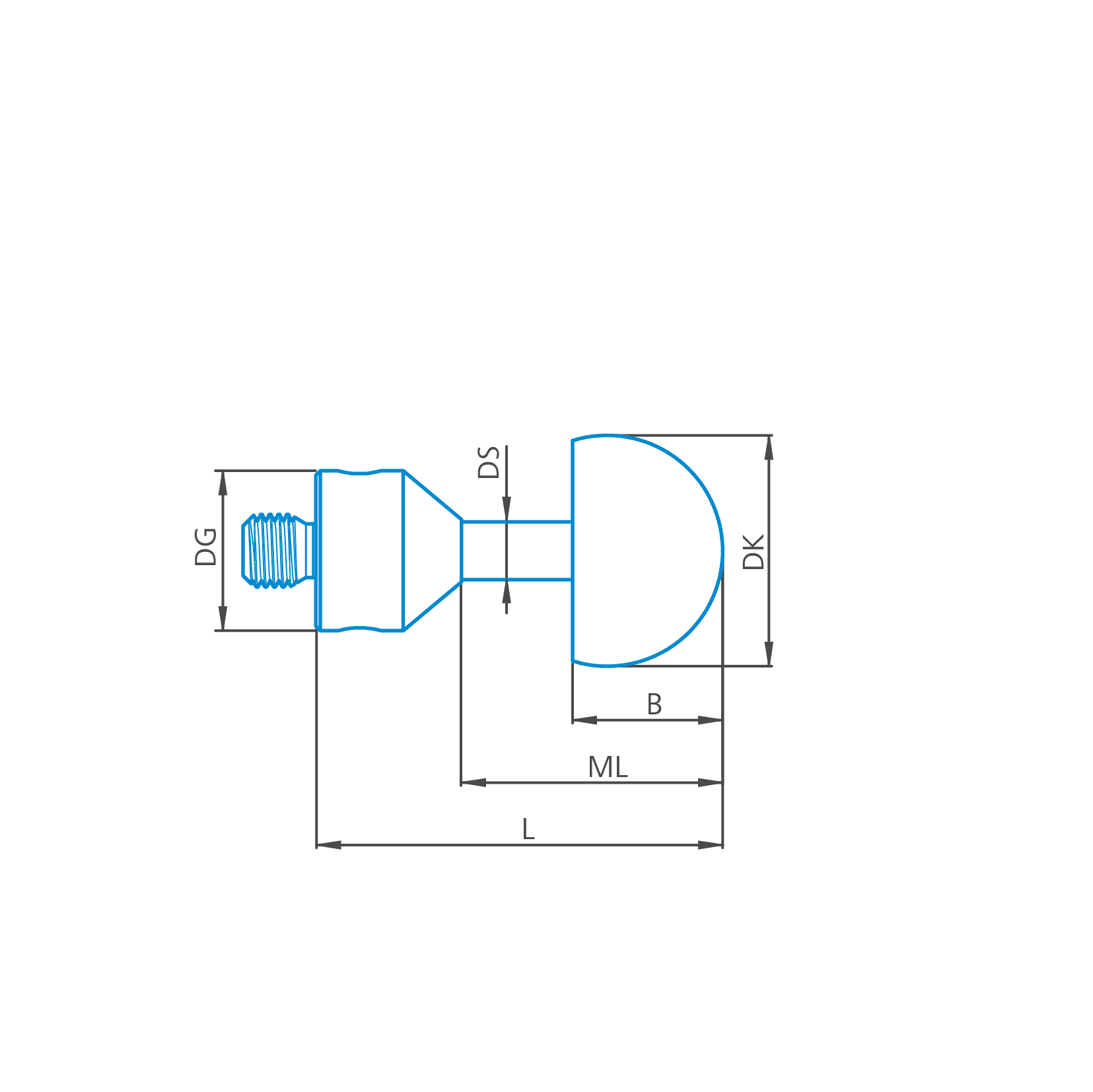

Hemisphere stylus M5, DK20.5 L19.25
626115-5000-928
EUR 465.00
excluding VAT
Longer delivery time
Do you have questions?
Stylus tip
Diameter sphere (DK)
20,5 mm
Tip material
Ceramic
Tip geometry
Hemisphere
Stylus shaft
Shaft material
Tung. Carb.
Width (B)
12,25 mm
Overall
Length (L)
19,25 mm
Ø Body (DG)
11 mm
Weight
16,8 g
Stylus type
Hemisphere Stylus
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Hemisphere styli for applications that require a large diameter and a low weight. M5 thread for VAST active scanning sensors.
Hemisphere styli with a cut off above the equator
Hemispheres save up to 40% weight
Lightweight ceramic sphere for more precision
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
