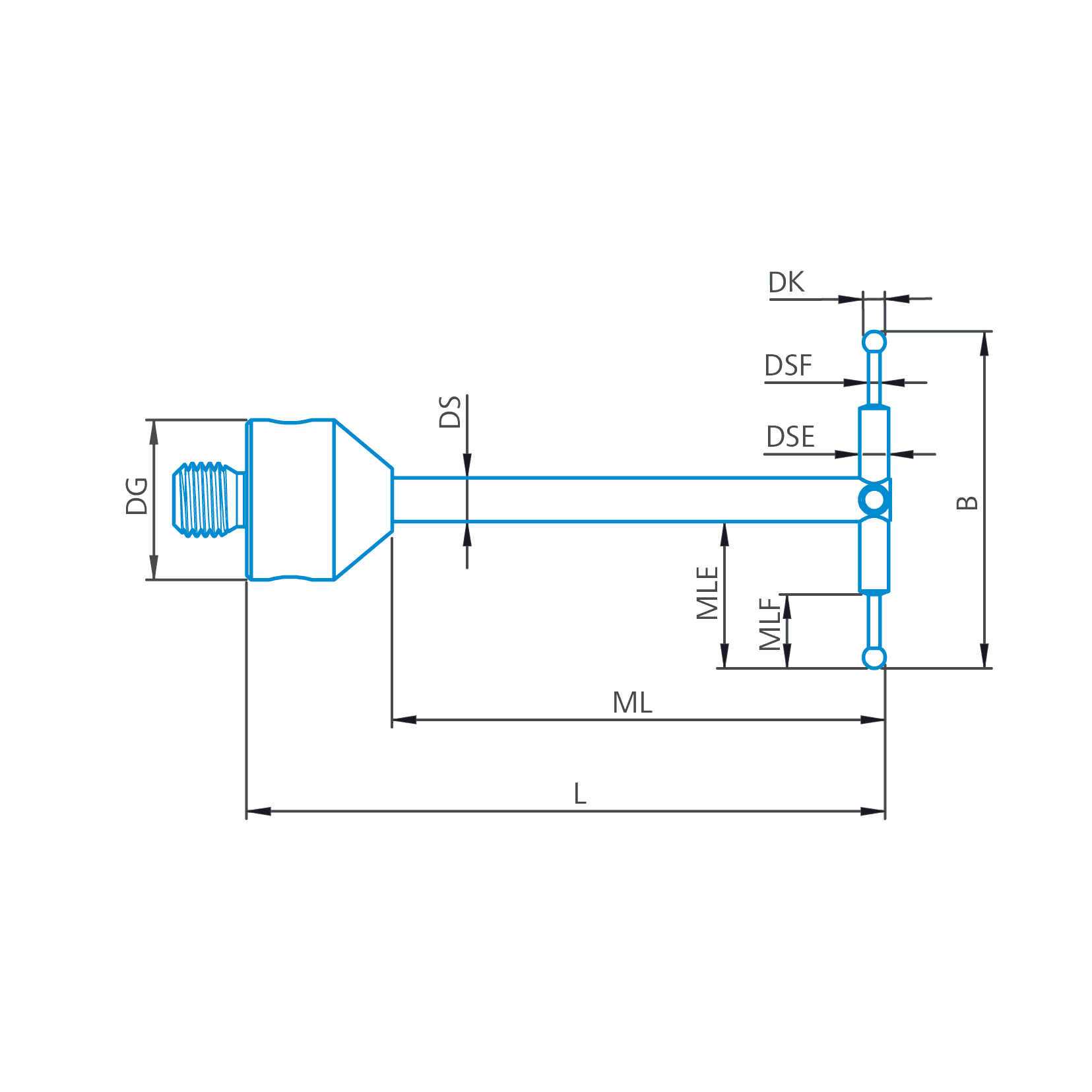

Star stylus M5, DK1.5 L110.5
626115-5000-899
EUR 396.00
excluding VAT
In stock
Do you have questions?
Stylus tip
Diameter sphere (DK)
1,5 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
97,5 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
6 mm
2nd Measurement length (MLE)
4,5 mm
2nd shaft diameter (DSE)
1 mm
3rd measurement length (MLF)
3,8 mm
3rd shaft diameter (DSF)
1 mm
Width (B)
13,6 mm
Overall
Length (L)
110,5 mm
Ø Body (DG)
11 mm
Weight
20 g
Stylus type
Star Stylus
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Star styli for measuring bores, grooves, undercuts, cylinder and bore diameters instead of disc styli. M5 thread for VAST active scanning sensors.
Spherical styli have the same probing behavior in every direction
Ruby is the most common sphere material
Ruby sphere available from 0.2 up to 12 mm
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
