Stylus straight M3 XXT, DK8.731 L45
626113-0870-045
EUR 158.00
excluding VAT
Longer delivery time
Do you have questions?

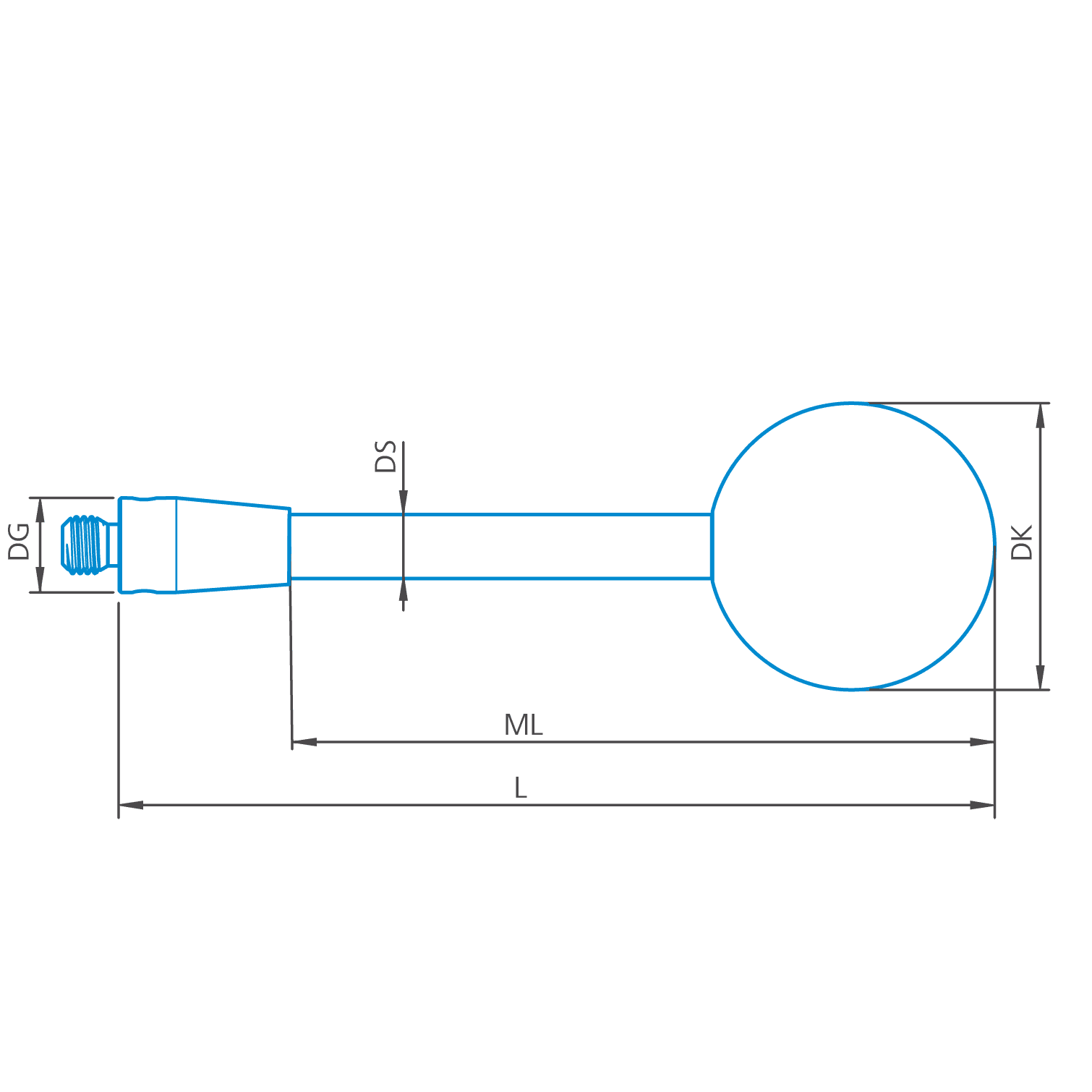

Stylus tip
Diameter sphere (DK)
8,731 mm
Tip material
Tung. Carb.
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
36 mm
Shaft material
Carbon Fiber
Ø Shaft (DS)
4 mm
Overall
Length (L)
45 mm
Ø Body (DG)
5 mm
Weight
6,2 g
Stylus type
Straight
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Custom made styli with a special diameter for very special measuring tasks. M3 thread for ZEISS VAST XXT probes.
M3 XXT features a larger base diameter for greater rigidity
Custom made diameter with Grade 10 accuracy
Tungsten carbide sphere for special size and form
Carbon fiber shaft with optimal stiffness, weight, and thermal expansion
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
