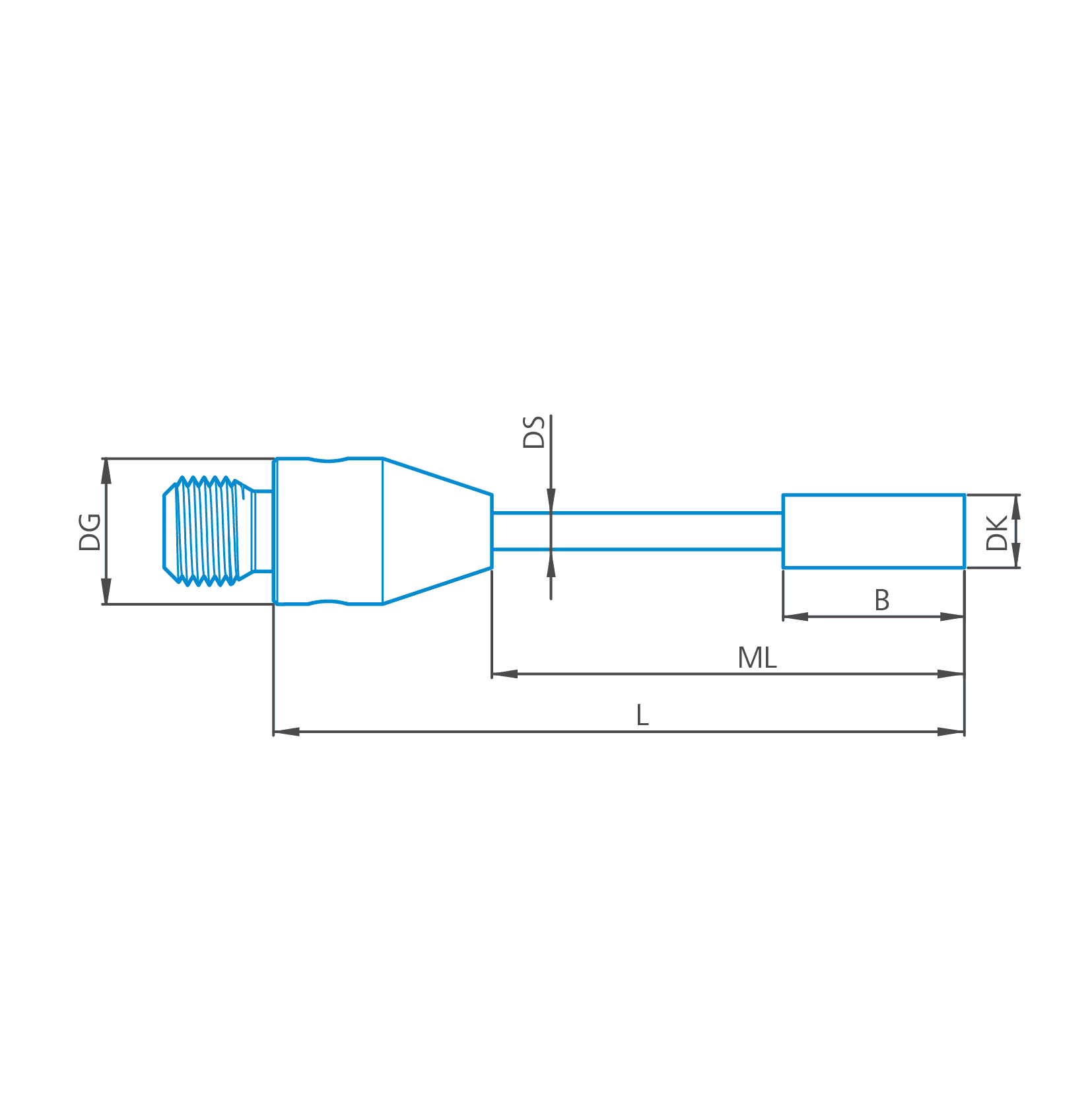

Cylinder stylus M3, DK4 L30
626113-0400-030
EUR 113.00
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
4 mm
Tip material
Tung. Carb.
Tip geometry
Cylinder
Stylus shaft
Measurement length (ML)
26 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
2 mm
Width (B)
10 mm
Overall
Length (L)
30 mm
Ø Body (DG)
4 mm
Weight
3,1 g
Stylus type
Cylinder
Connection Type
M3
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Cylindrical styli for thin sheets and narrow workpiece edges. M3 thread for ZEISS RST, Renishaw SP and Hexagon HP-S sensors. Not for ZEISS VAST XXT sensors (see product notes).
Cylindrical styli for two-dimensional measuring tasks
Tungsten carbide cylinder for special size an form
Tungsten carbide shaft with high rigidity
Stepped measuring cylinder
Proven ZEISS quality through high-end manufacturing
