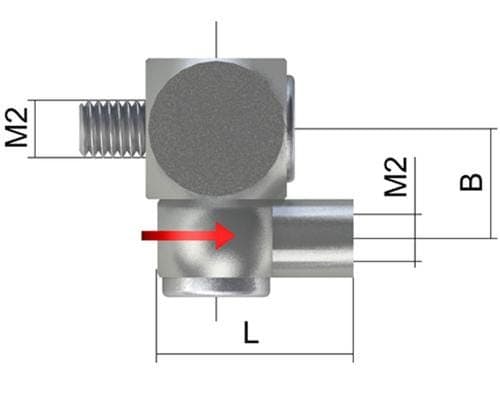

Offset rotating knuckle joint, M2
626112-5000-003
EUR 70.00
excluding VAT
Expected soon
Do you have questions?
System Integration
Connection Type
M2
Connection Type Out
M2
Primary Dimensions
Length (L)
13 mm
Ø Body (DG)
3,5 mm
Detailed Specifications
Material
Steel
Weight
1 g
Product note
The use of M3 REN extensions are not recommended on ZEISS scanning sensors such as VAST, VAST Gold or VAST XXT. Due to the smaller base diameter and the resulting reduced rigidity compared to the M5 or M3 XXT extensions, the reproducibility is poorer. However, adapters to other systems are also available for special applications in the fasteners section.
Freely adjustable joint angle, angle freely adjustable (0°-90°), M2 system with outer diameter 3 mm
Flexibly adjustable angle
Quick and safe to set up
Optimum accessibility thanks to slim design
