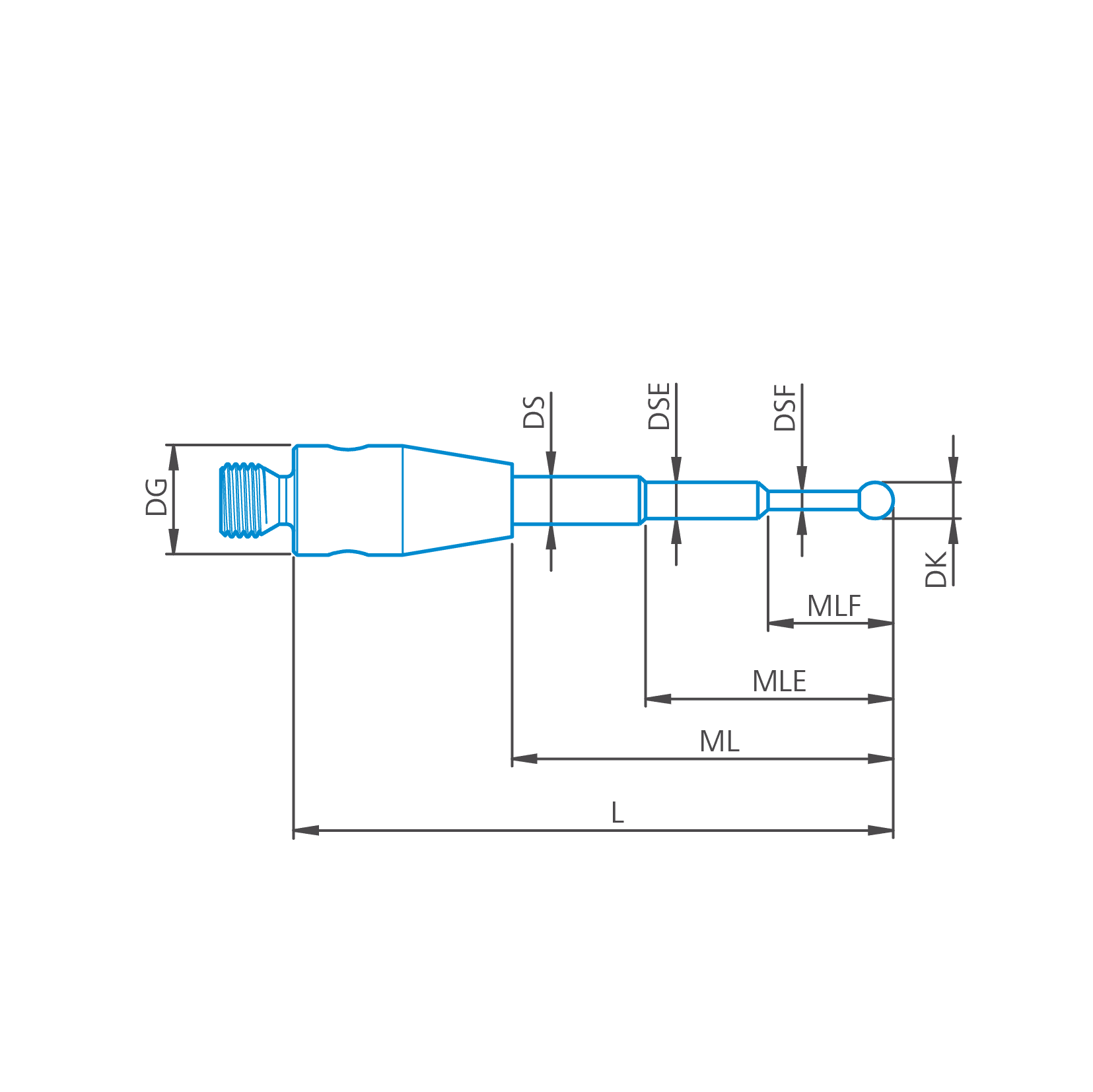

Stylus stepped M2, DK0.3 L15
626112-0031-015
EUR 207.00
excluding VAT
Expected soon
Do you have questions?
Stylus tip
Diameter sphere (DK)
0,3 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
10 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
2nd Measurement length (MLE)
4 mm
2nd shaft diameter (DSE)
0,4 mm
3rd measurement length (MLF)
2,3 mm
3rd shaft diameter (DSF)
0,2 mm
Overall
Length (L)
15 mm
Ø Body (DG)
3 mm
Weight
0,3 g
Stylus type
Stepped
Connection Type
M2
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Standard Styli suitable for all common measuring tasks. M2 threads are common for Renishaw touch sensors.
Ruby is the most versatile sphere material
Ruby spheres available from 0.2 up to 12 mm
tungsten carbide shaft with high rigidity
Higher stability through stepped shaft
Proven ZEISS quality through high-end manufacturing
