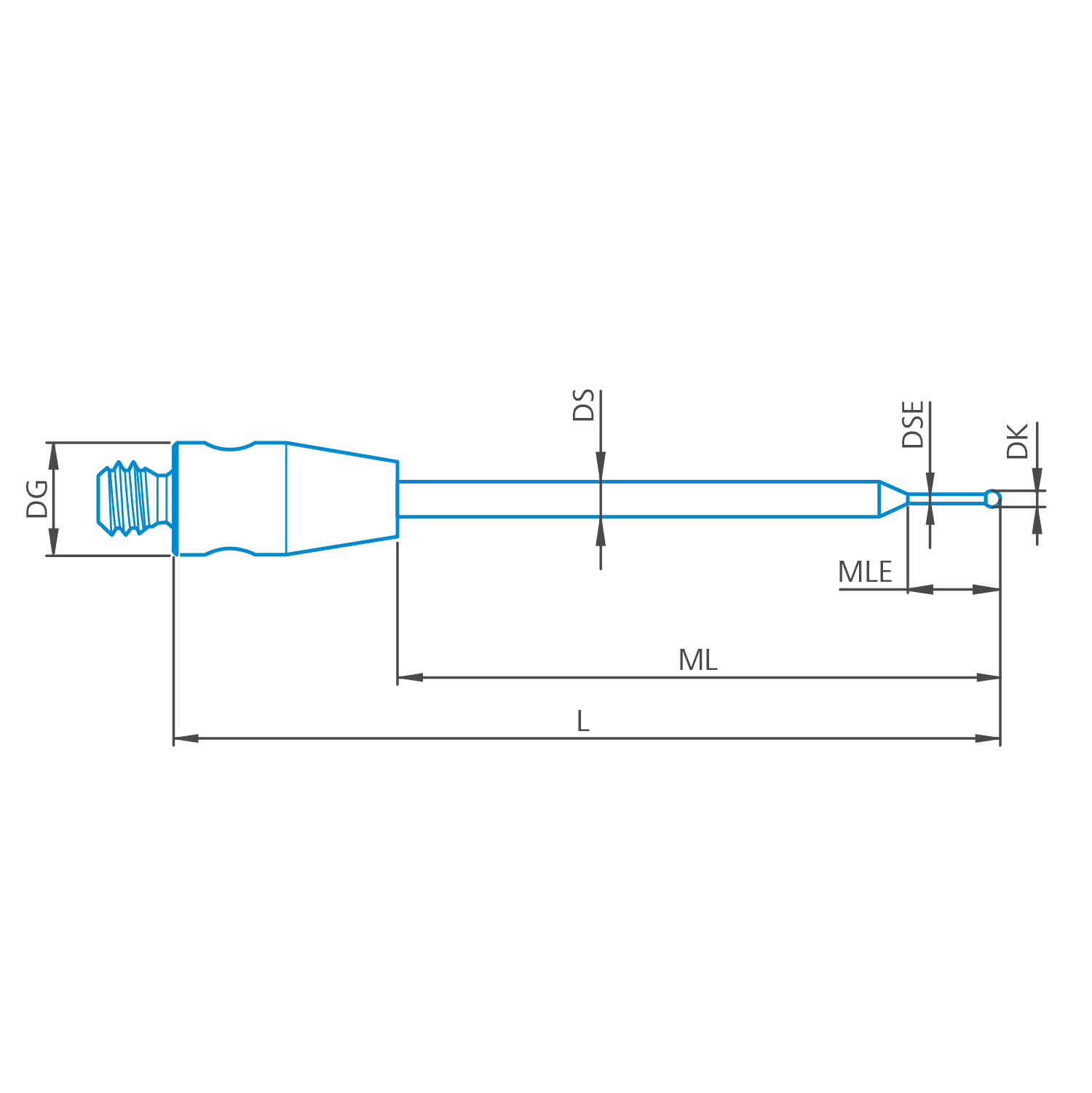

Stylus stepped M2 DK1 L21 D!S mono
626112-0029-021
EUR 586.00
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
1 mm
Tip material
Diamond Coated
Tip geometry
Sphere-Segment
Stylus shaft
Measurement length (ML)
15 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
2nd Measurement length (MLE)
5 mm
2nd shaft diameter (DSE)
0,8 mm
Overall
Length (L)
21 mm
Ø Body (DG)
3 mm
Weight
0,47 g
Stylus type
Stepped
Connection Type
M2
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Diamond coated styli with sphere and shaft made of one piece for the highest stability and accuracy. M2 threads are common for Renishaw touch sensors.
Diamond coated sphere resistant to deposits and wear
Polished surface for highliy sensitive materials
Tungsten carbide shaft with high rigidity
Higher stability through stepped shaft
Proven ZEISS quality through high-end manufacturing
