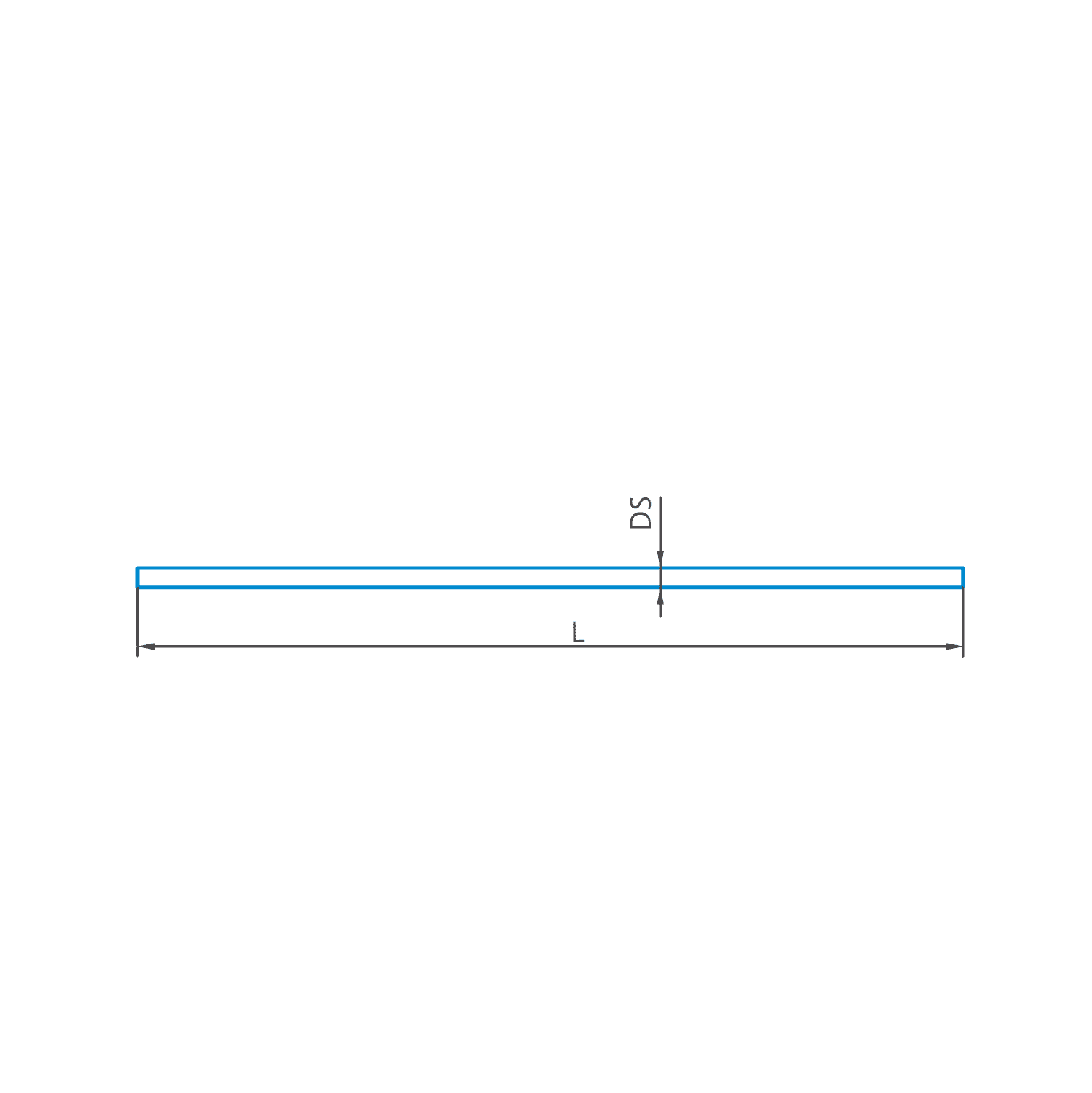

Cylinder stylus, DK2 L84
626111-5000-061
EUR 7.50
excluding VAT
Longer delivery time
Do you have questions?
Stylus tip
Diameter sphere (DK)
2 mm
Tip material
Tung. Carb.
Tip geometry
Cylinder
Stylus shaft
Shaft material
Tung. Carb.
Ø Shaft (DS)
2 mm
Overall
Length (L)
84 mm
Stylus type
Cylinder
Connection Type
Without thread
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Cylindrical styli for thin sheets and narrow workpiece edges. Styli without thread for use with special mounting adapters.
Cylindrical styli for two-dimensional measuring tasks
Tungsten carbide cylinder for special size and form
Shaft and measuring cylinder without step
Proven ZEISS quality through high-end manufacturing
