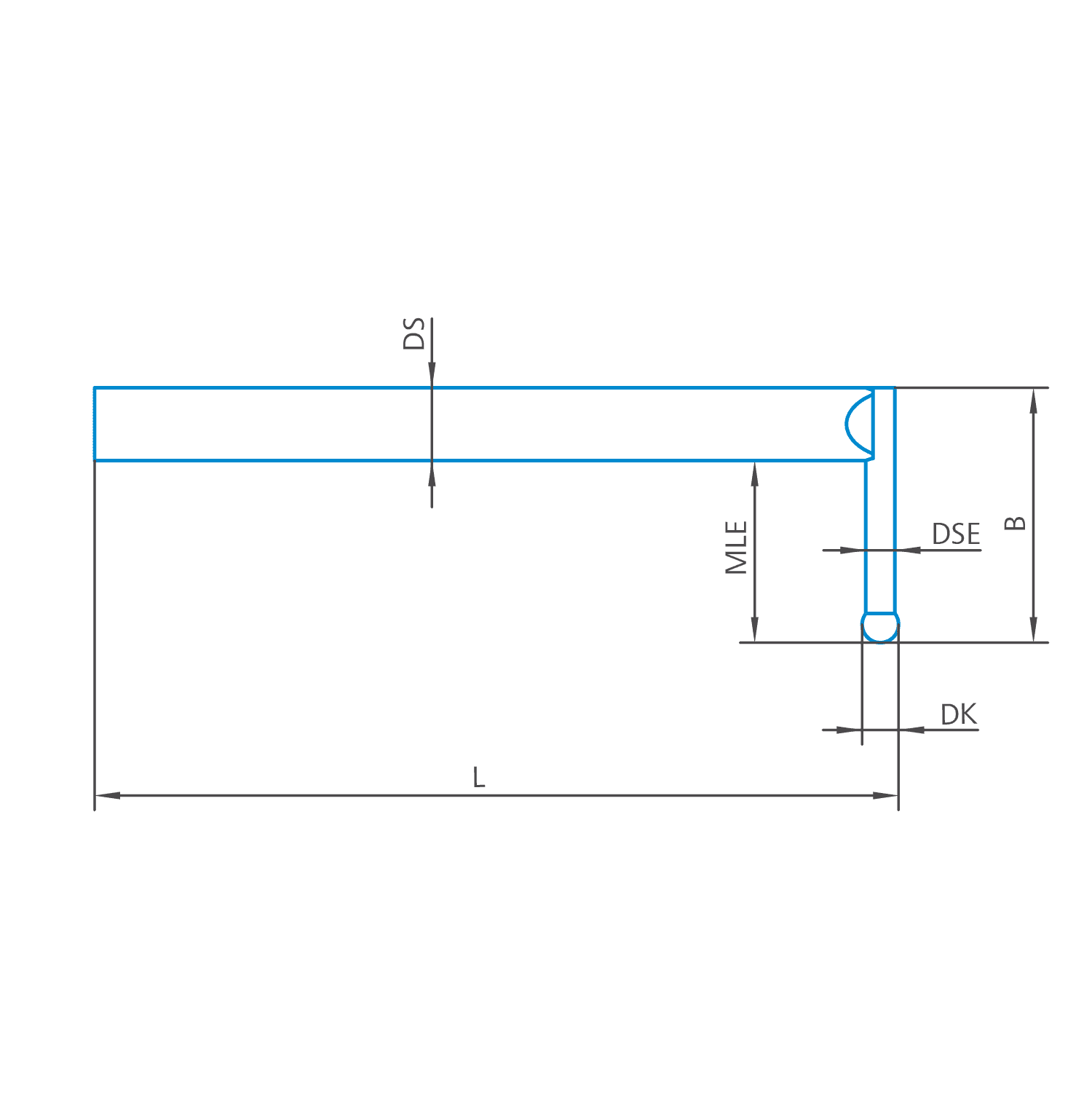

L-stylus, DK2 L29.75
626111-5000-021
EUR 175.00
excluding VAT
In stock
Do you have questions?
Stylus tip
Diameter sphere (DK)
2 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Shaft material
Tung. Carb.
Ø Shaft (DS)
2 mm
2nd Measurement length (MLE)
7 mm
2nd shaft diameter (DSE)
1 mm
Width (B)
9 mm
Overall
Length (L)
29,75 mm
Weight
1,4 g
Stylus type
L-Stylus
Connection Type
Without thread
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
L-styli for measuring undercuts and horizontal bores. Styli without thread for use with special mounting adapters.
Ruby is the most versatile sphere material
Ruby spheres available from 0.2 up to 12 mm
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
