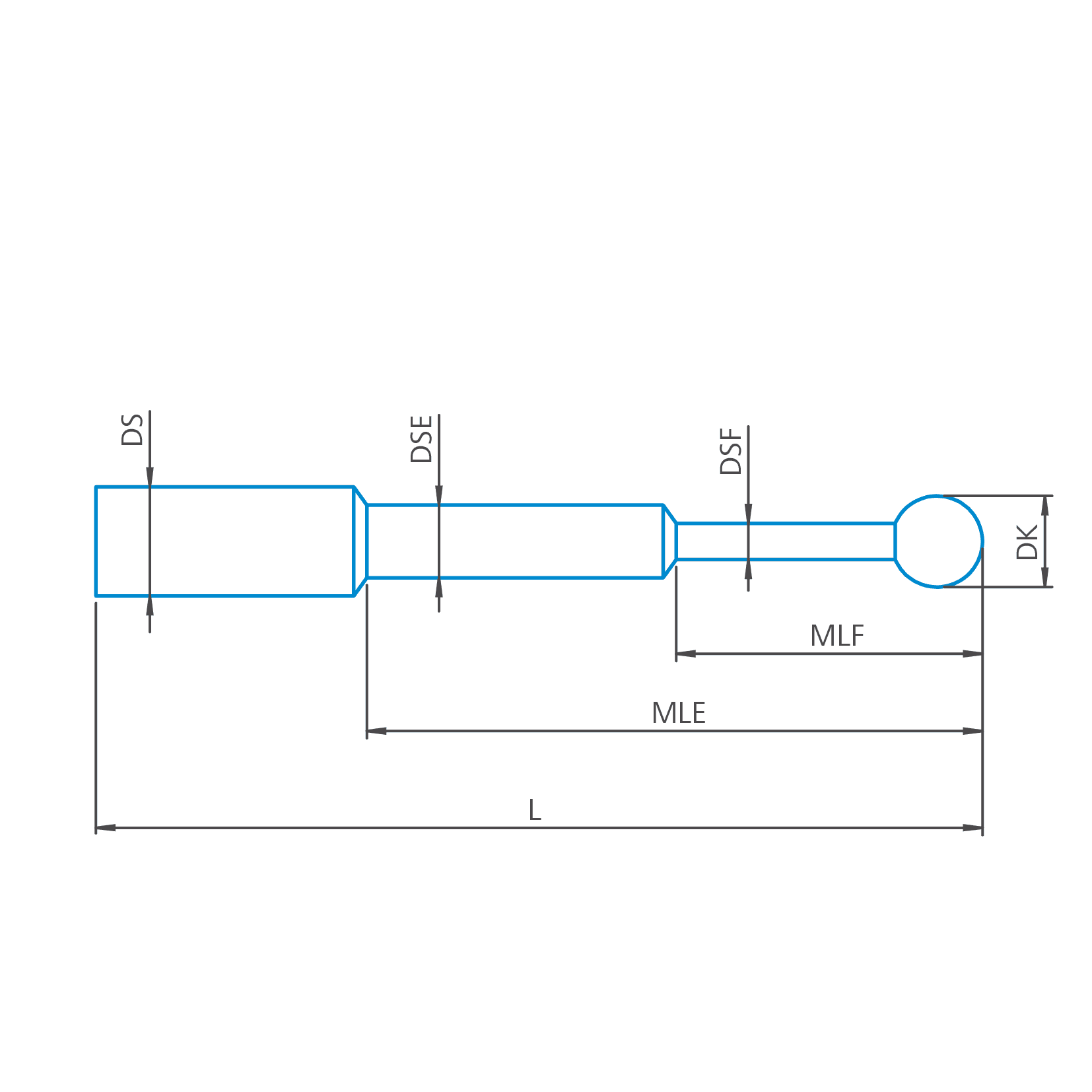

Stylus stepped, DK0.3 L25
626111-0033-025
EUR 63.00
excluding VAT
Longer delivery time
Do you have questions?
Stylus tip
Diameter sphere (DK)
0,3 mm
Tip material
Tung. Carb.
Tip geometry
Sphere
Stylus shaft
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
2nd Measurement length (MLE)
4,5 mm
2nd shaft diameter (DSE)
0,5 mm
3rd measurement length (MLF)
1,3 mm
3rd shaft diameter (DSF)
0,23 mm
Overall
Length (L)
25 mm
Weight
0,2 g
Stylus type
Stepped
Connection Type
Without thread
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Custom made styli with a special diameter for very special measuring tasks. Styli without thread for use with special mounting adapters.
Custom made diameter with Grade 10 accuracy
Tungsten carbide sphere for special size and form
Tungsten carbide shaft with high rigidity
Higher stability through stepped shaft
Proven ZEISS quality through high-end manufacturing
