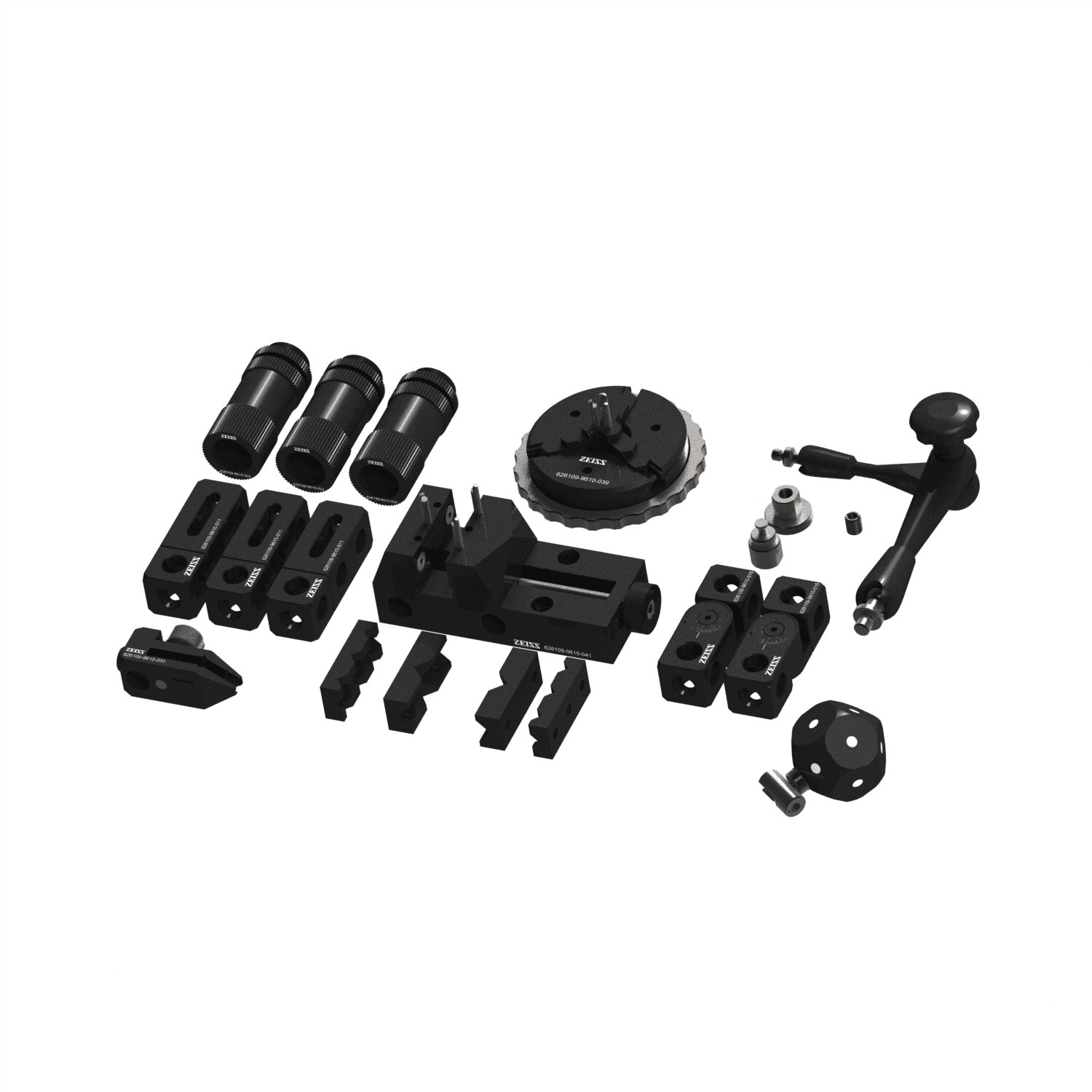

Scope of Delivery:

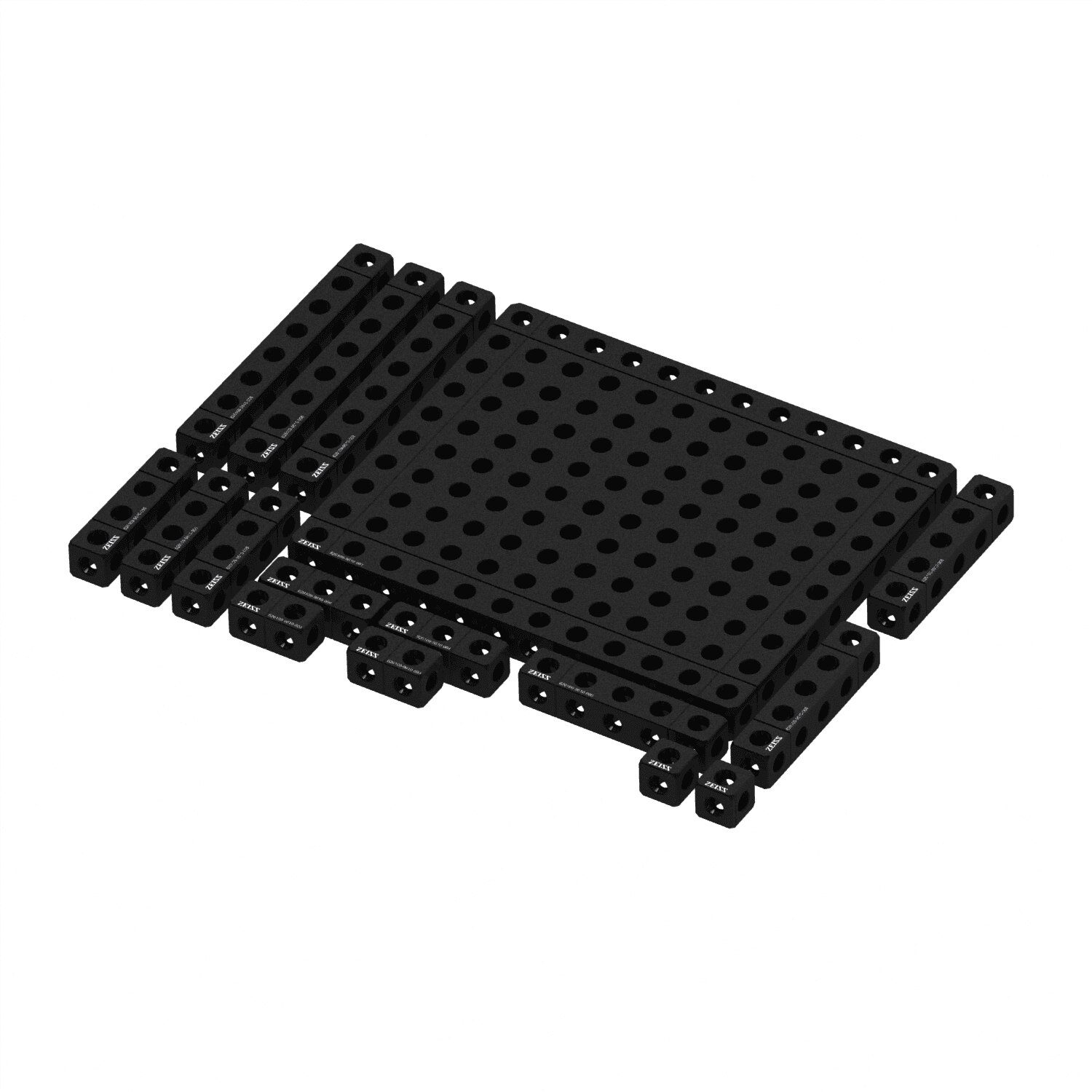

• - 1 Base plate - 25x250x300mm, AF25 (626109-9610-057)
• - 2 Quader - 25x25x25mm, AF25 (626109-9610-002)
• - 2 Quader - 25x25x50mm, AF25 (626109-9610-003)
• - 2 Quader - 25x25x75mm, AF25 (626109-9610-004)
• - 3 Quader - 25x25x100mm, AF25 (626109-9610-005)
• - 3 Quader - 25x25x125mm, AF25 (626109-9610-006)
• - 3 Quader - 25x25x200mm, AF25 (626109-9610-008)
• - 1 Vise - 125x50x50mm, clamping range 65, AF25 (626109-9610-041)
• - 1 3-jaw-chuck - clamping range 50mm (626109-9610-039)
• - 3 Adjusting element simple - 75x25x25, AF25 (626109-9610-011)
• - 1 Tool set - AF25 (000000-0735-165)
• - 3 Screw-jack - adjustable 70-105mm, Connection 24x1 (626109-9610-024)
• - 3 Cap for Screw-jack - 6,5xM24x1 (626109-9610-058)
• - 3 Hold-down column clamp - with thread M6, AF25 (626109-9610-059)
• - 3 Hold down spring - self locking, lenght 59mm (626109-9610-049)
• - 3 Connection for Hold-down column clamp - M6 (626109-9610-060)
• - 3 Blate prism top - 120°, without knuckle, Connection M24x1
• (626109-9610-031)
• - 3 Spacer for Screw-jack - Connection M24x1 (626109-9610-037)
• - 1 Swivel arm - lenght 205mm, AF25 (626109-9610-013)
• - 1 Lock for Bolt - AF25 (000000-0481-227)
• - 1 Bolt for Swivel arm - Ø12 (626109-9610-062)
• - 1 Fixing disk for Swivel arm - 17xM24x1 (626109-9610-063)
• - 1 Reducer bush for Swivel arm - M8/M6 (626109-9610-064)
• - 2 Knuckle simple - ±90° adjustable, AF25 (626109-9610-015)
• - 1 Parallel clamp with exchangeable jaws (626109-9610-050)

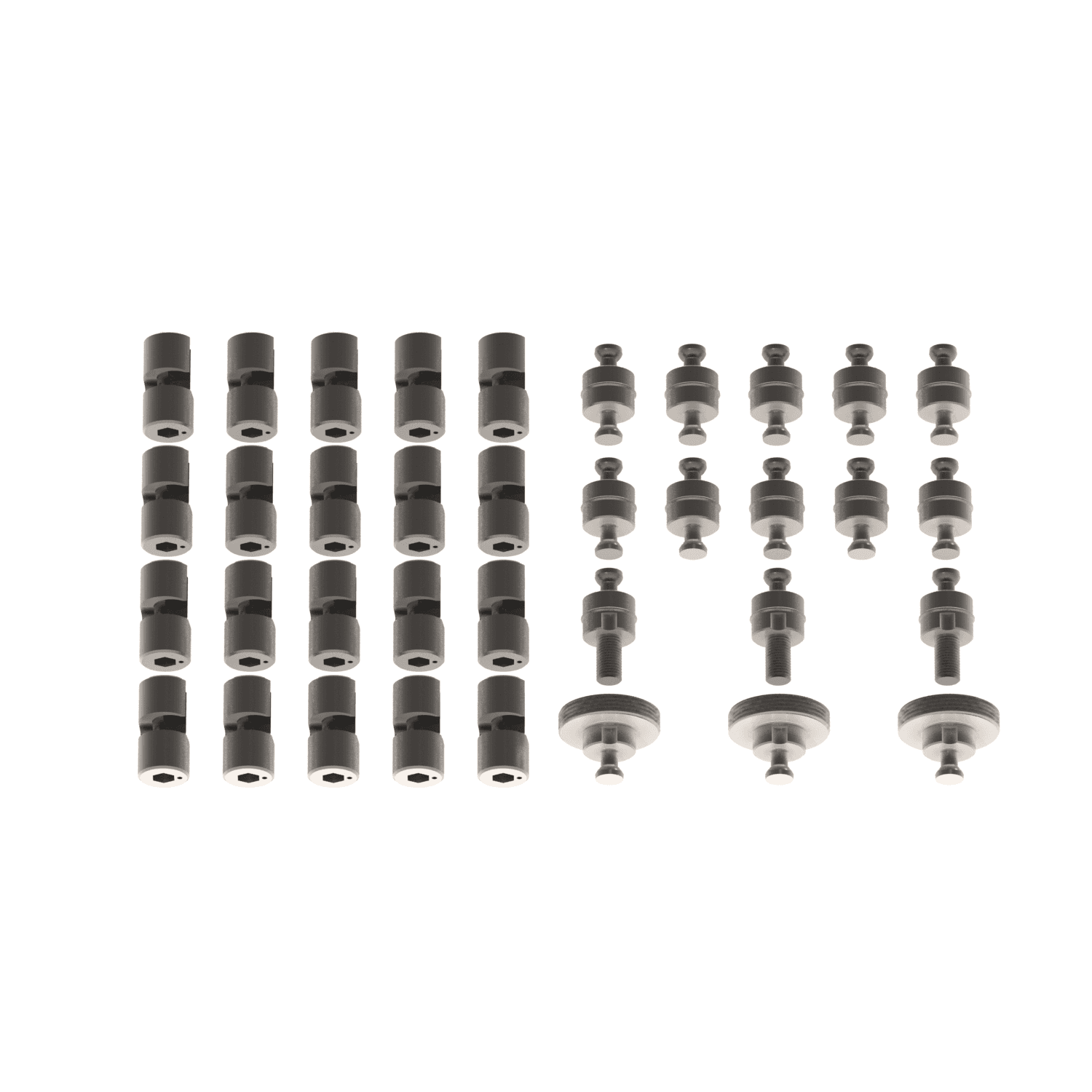

• - 1 Bolt for components with studs - AF25(626109-9610-065)
• - 3 Measurement adapter dodecahedron (626109-9610-066)
• - 7 Combi bolt - M6 kurz, AF25 (000000-0481-234)
• - 3 Combi bolt - M8, AF25 (000000-0735-305)
• - 1 Connection Kit small - AF25 (626109-9610-067)
• - 7 Bolt - without Gewinde, AF25 (000000-0481-226)
