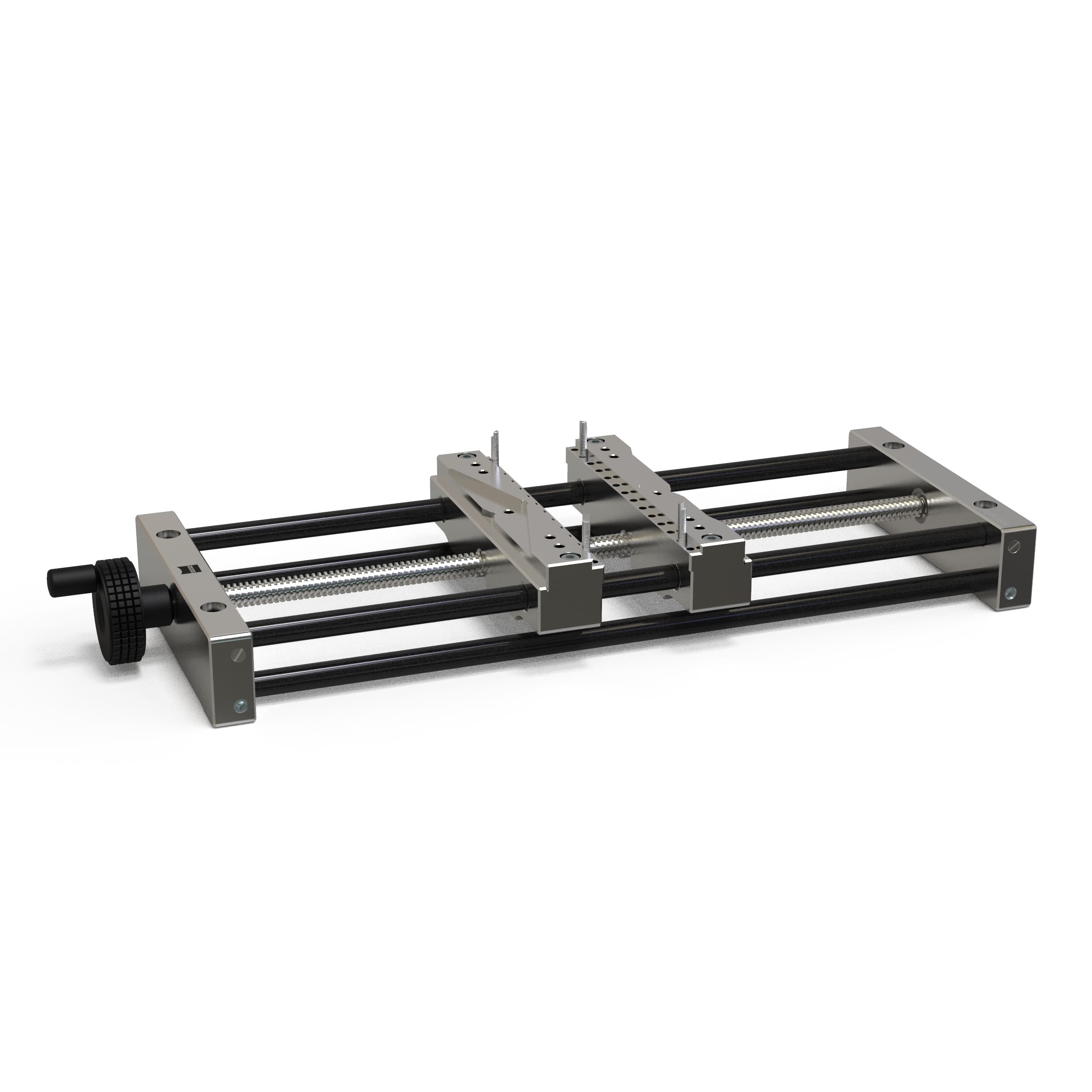

OmniFix metrologist vise 170 x 420 mm
626109-9220-280
EUR 1,559.00
excluding VAT
In stock
Do you have questions?
Overall
Product type
Vise
Application
Secure
Material
Stainl. St.
Length (L)
420 mm
Width (B)
170 mm
Height (H)
45 mm
Weight
5 800 g
Details
- Outer dimensions: 420 x 170 x 45 mm (LxWxH)
- - Max. clamping width: 310 mm (with standard jaws)
- - Mounting option: 4 through holes for M6 thread, distance 100/400 mm and M10/M12 clamping brackets for machine tables
- - Weight: 5,8 kg
- Scope of delivery:
- - 1 set = 2 interchangeable jaws, stainless steel, stepped and with prismatic holder and pin holes
- - 1 set fastening screws M6
- - 1 set = 4 stepped dowel pins 30 mm
- - 1 set = 4 clamping lugs M10
- - 1 set = 4 clamping lugs M12
Product note
High-quality materials and precise manufacturing ensure reliable performance without any additional maintenance effort, saving you both time and resources.
The ZEISS OmniFix metrological vices enable precise positioning of workpieces for tactile and optical measurement methods. They are highly versatile and suitable for various workpiece geometries, from simple parts to complex shapes. Typical Applications: Tactile: Secure a workpiece during measurements with probing forces to prevent introducing false deviations. Optical: Fixturing workpiece while providing maximum accessibility for capturing all relevant features. Complex Geometries: Flexible adjustment for workpieces that are difficult to fixture.
Material: Lightweight yet stable construction for maximum flexibility.
Design: Ergonomic, open design for optimal accessibility.
Compatibility: Perfectly tailored to ZEISS CMM systems and accessories.
