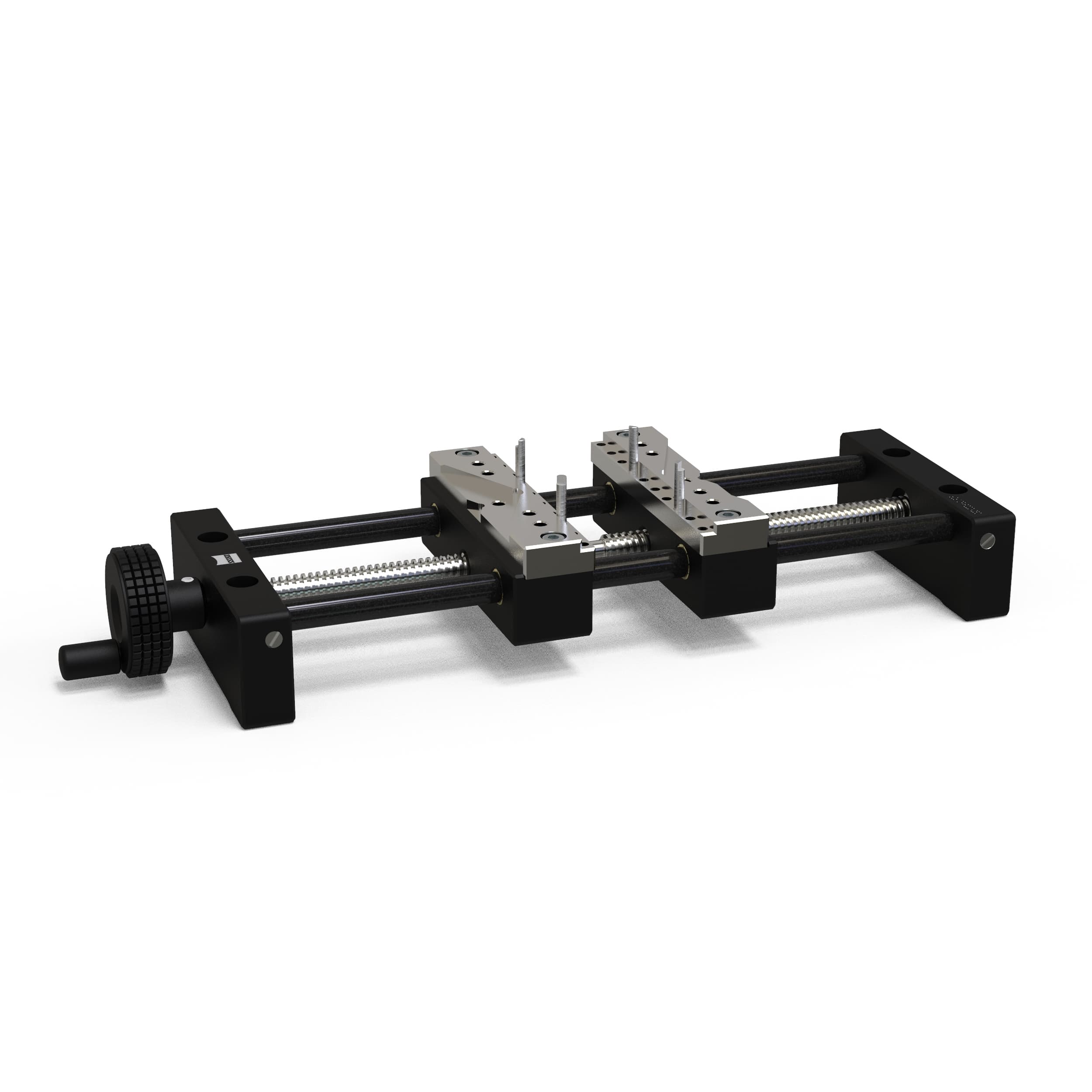

The OmniFix metrologist vise, made of aluminum, black anodized, with interchangeable steel jaws and adaptability for many accessories, is used for easy clamping of a wide variety of geometries with optimum accessibility. Pin bores for the use of clamping pins for increased positioning of components ensure accessibility from all sides. In contrast to conventional universal clamping devices, this vise was developed by metrologists for use in metrological tasks. Special attention was paid to ergonomics and optimized accessibility. Specially designed clamping jaws, e.g. made of 3D print, can be used easily, CAD data of jaw blanks can be found in the Media tab. The version with centric clamping allows the use on rotary tables as well as the creation of parameterized measuring programs e.g. for the measurement of rings or cylinders. The vises are tested by our application engineers on ZEISS machines and guarantee the best possible measuring accuracy. The components to be measured are optimally fixed at all times so that a reliable sequence of the measuring programs is guaranteed.

• Ultralight, ergonomic aluminium vise

• Extremely flat design

• Optimized accessibility and flexibility through the use of interchangeable jaws

• Mounting holes for almost all ZEISS pallets and grid plates with M6 threads

• Centric clamping

• Maintenance-free, therefore no lubricants necessary

• Suitable for O-INSPECT 322
