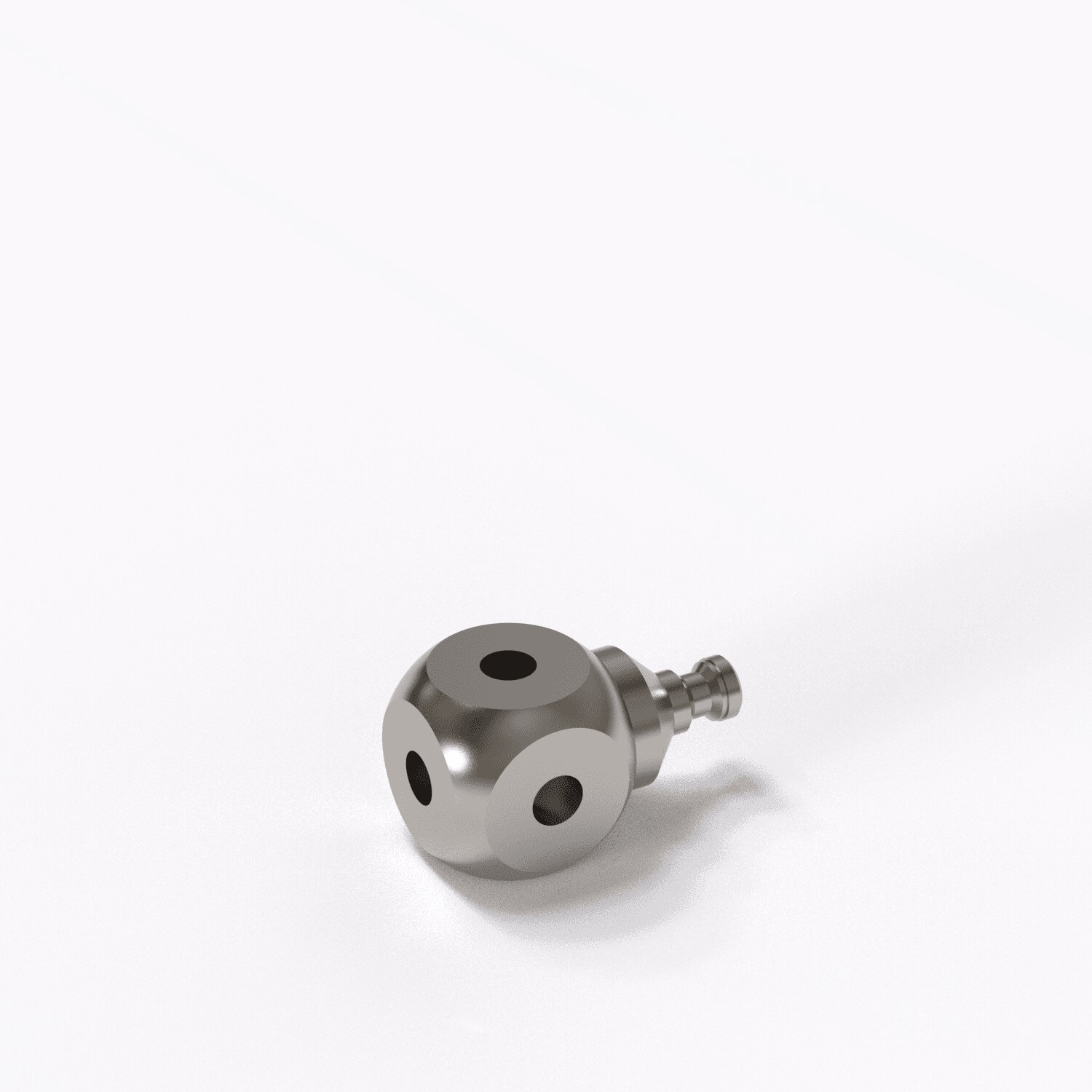

Cube, with cone adapter, 4 sided M5
626107-6280-070
EUR 91.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
Cone Adapter
Connection Type Out
M5
Primary Dimensions
Width (B)
15 mm
Length (L)
17,5 mm
Ø Body (DG)
11 mm
Measurement length (ML)
10 mm
Detailed Specifications
Material
Titanium
Weight
13 g
Number positions
5
Angle 1(W1)
90°
Product note
Cube with cone adapter, M5 thread, titanium, DG: 11, LE: 17, B: 15, weight: 13 g
Cube insert with cone adapter (CA), rotationally adjustable and M5 connecting threads
Connection option 5 x M5
Special cone holder for maximum torsion resistance
Can be reused several times
Quick and safe assembly
Optimum accessibility due to slim design
Can be used in ZEISS basic rotary mounts
