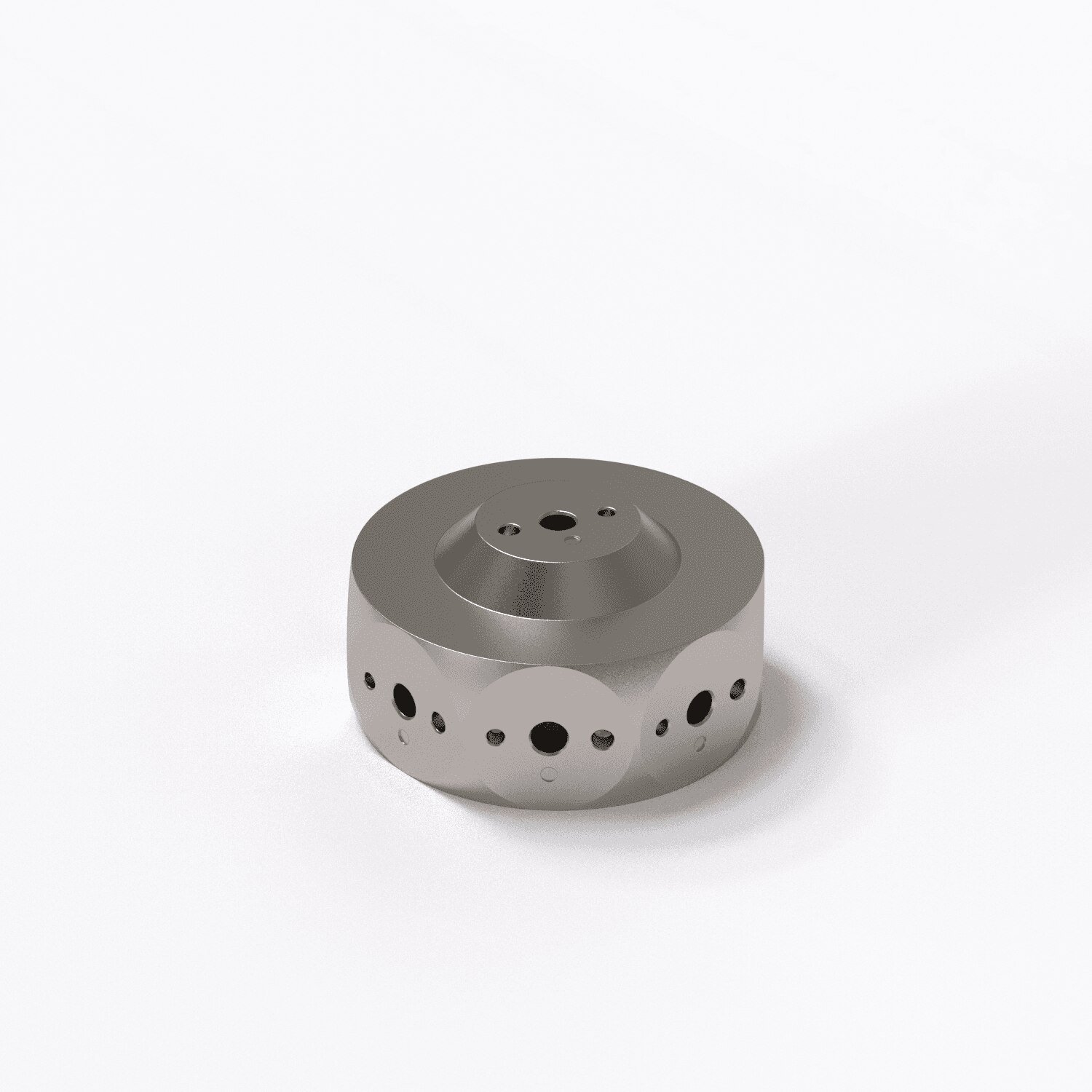

Cube, 8 sided, M5 pro, screws included
626107-6060-009
EUR 645.00
excluding VAT
Made to order
Do you have questions?
System Integration
Connection Type
M5 Pro
Connection Type Out
M5

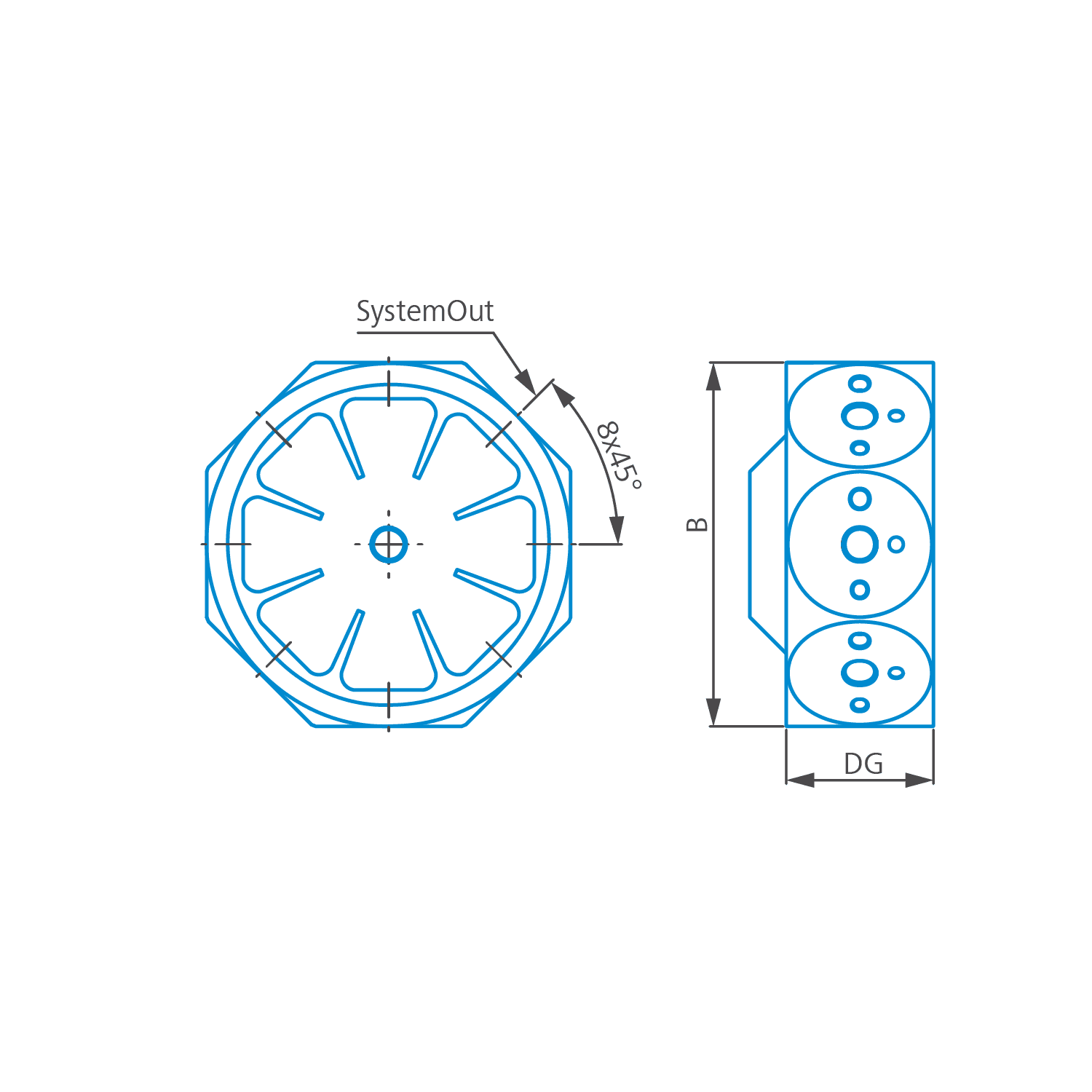

Primary Dimensions
Width (B)
50 mm
Ø Body (DG)
20 mm
Detailed Specifications
Material
Titanium
Weight
107 g
Number positions
8
Angle 1(W1)
45°
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.
8-fold angle piece with 45° pitch. Mounting surface at right angles to the main axis. With M5 pro connection options with M5 thread and index holes
Made from a high-quality titanium alloy
With M5 pro connections
Low weight combined with high rigidity
Suitable for gear measurements
