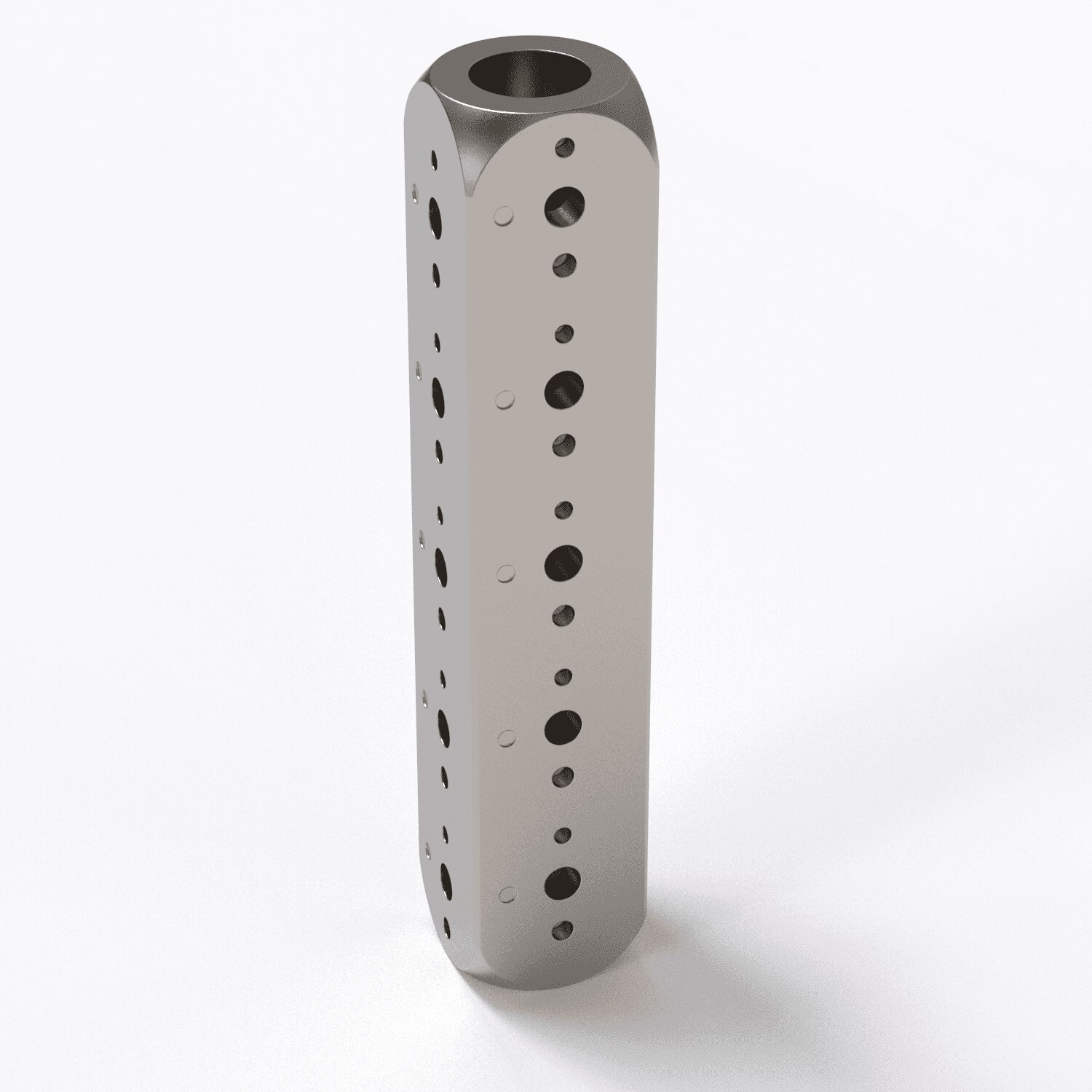

Stylus holder, 5M pro, 5 levels
626107-6060-005
EUR 399.00
excluding VAT
Longer delivery time
Do you have questions?
System Integration
Connection Type
M5 Pro
Connection Type Out
M5 Pro

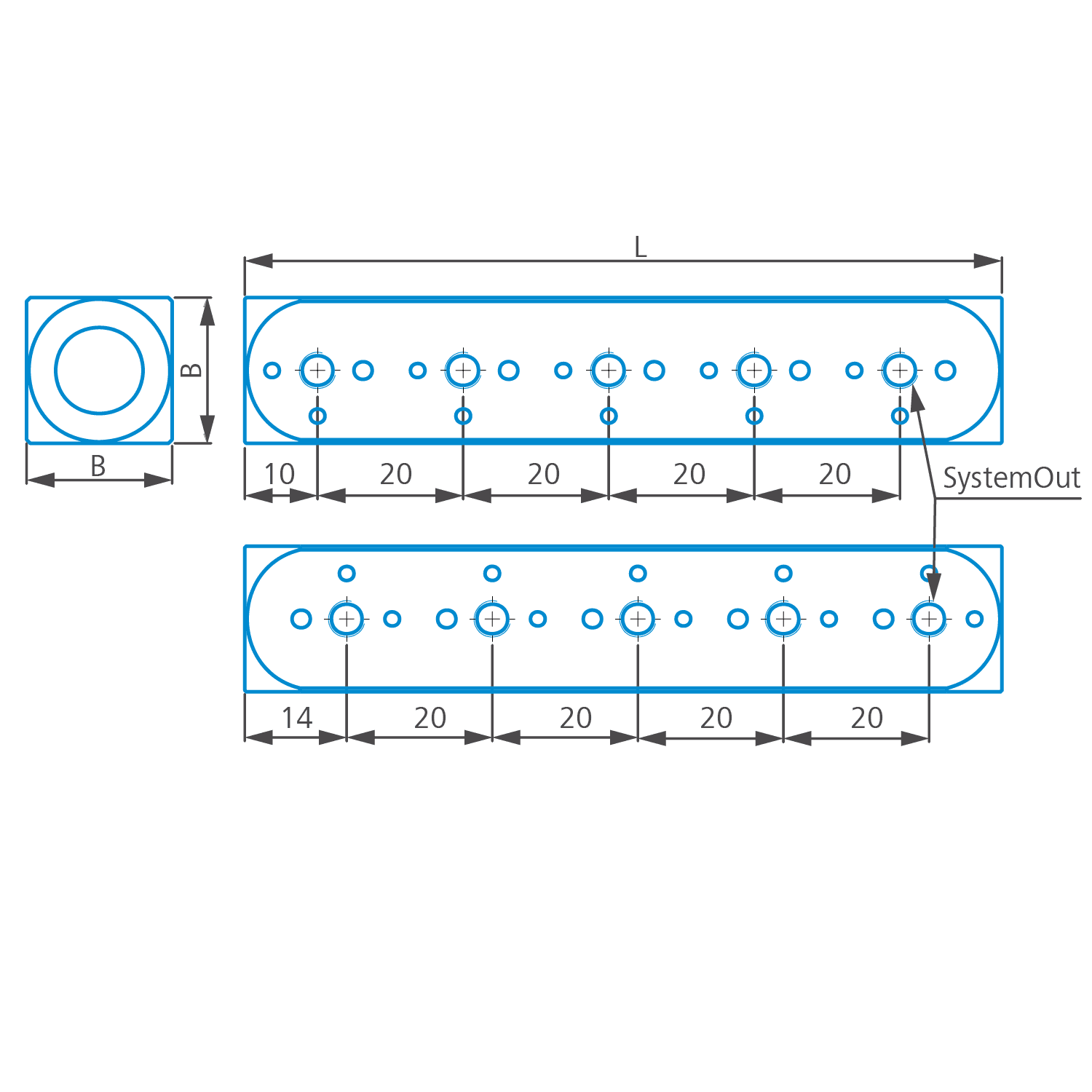

Primary Dimensions
Length (L)
104 mm
Width (B)
20 mm
Detailed Specifications
Material
Titanium
Weight
124 g
Number positions
5
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.
Multiple holder in bar design 20 x 20 mm with 5-way connection. Several M5 screw-on options for styli or extensions
Made from a high-quality titanium alloy
With M5 per connection options
Low weight combined with high rigidity
Suitable for gear measurements
