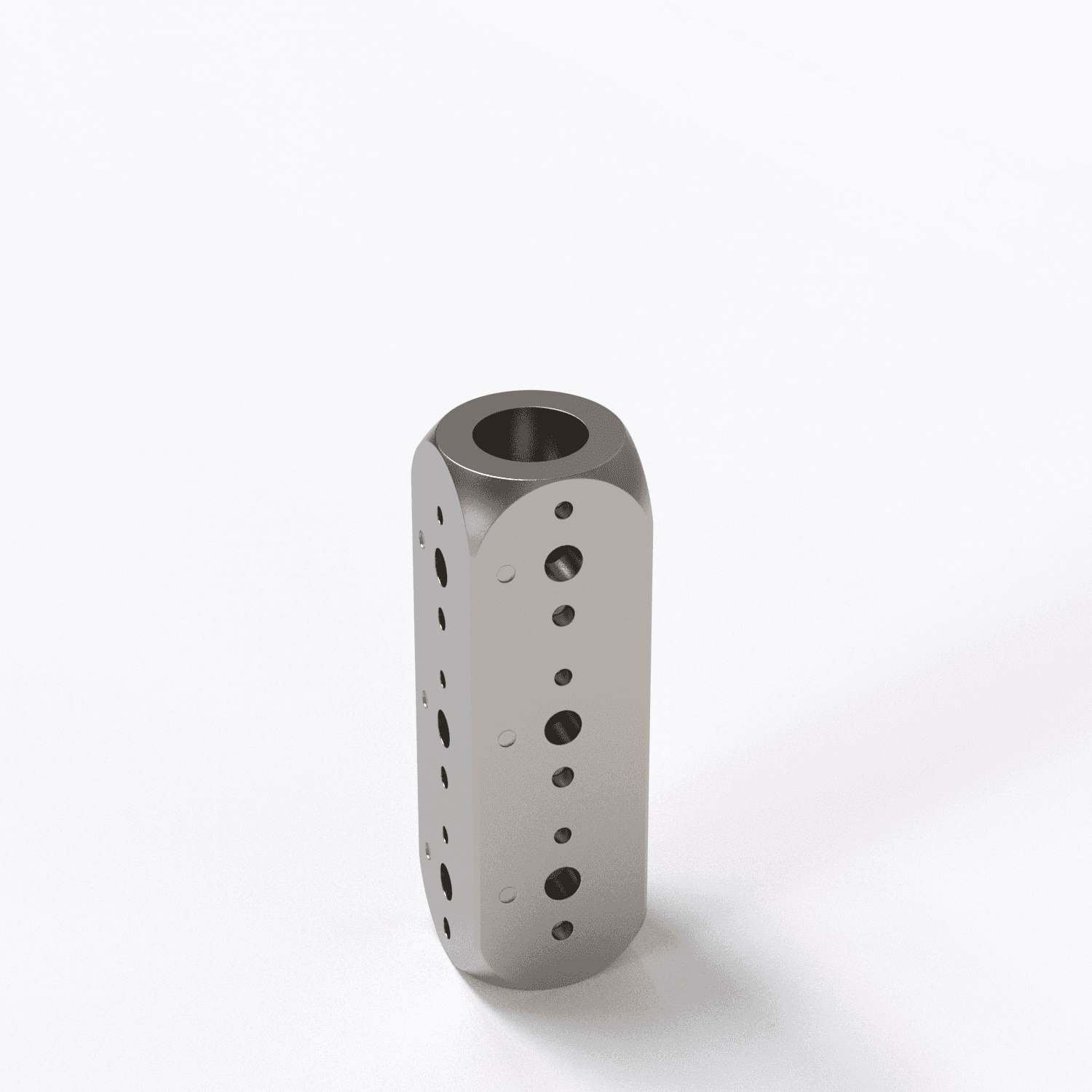

Stylus holder, 5M pro, 3 levels
626107-6060-003
EUR 249.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M5 Pro
Connection Type Out
M5 Pro

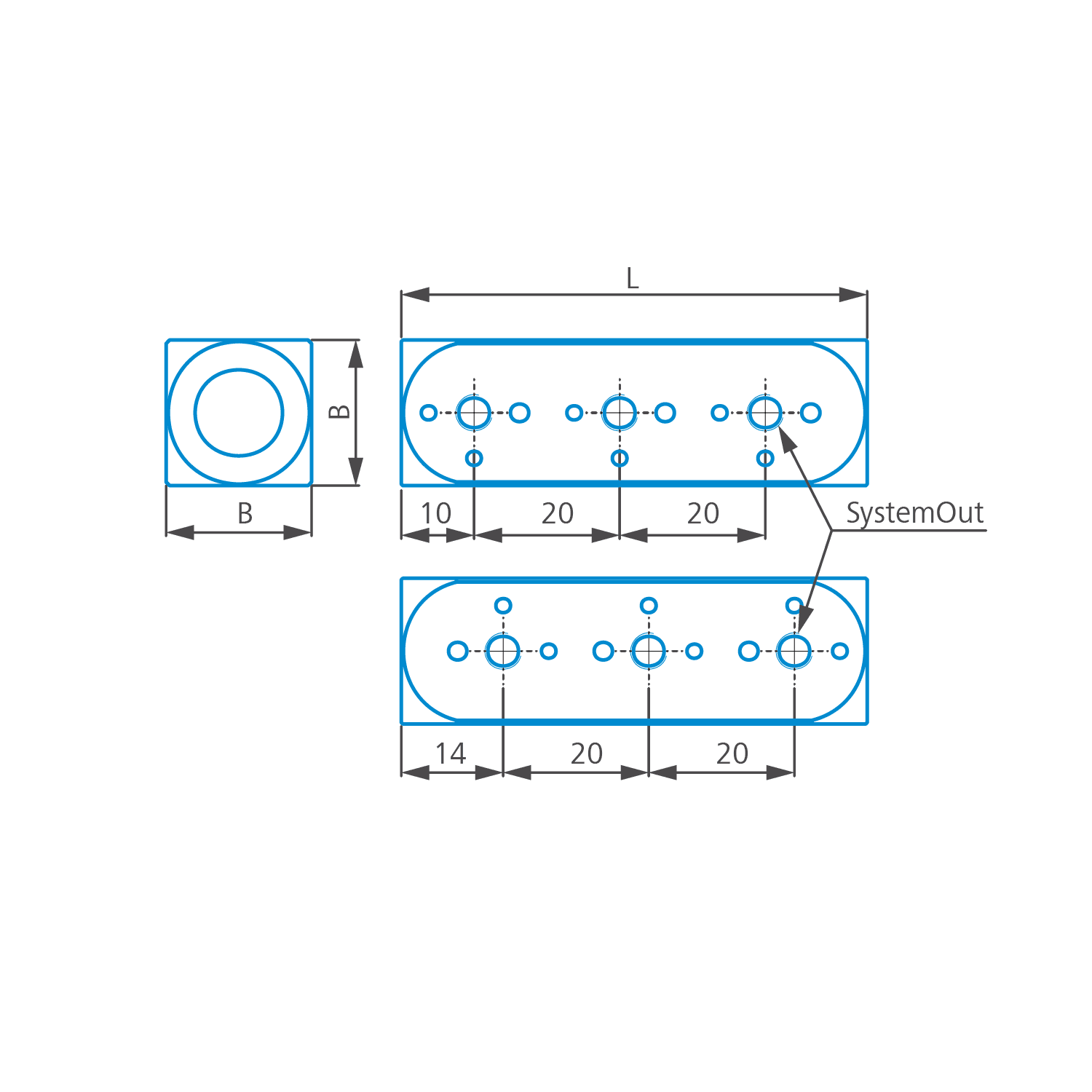

Primary Dimensions
Length (L)
64 mm
Width (B)
20 mm
Detailed Specifications
Material
Titanium
Weight
76 g
Number positions
3
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.
3-fold holder in strip design 20 x 20 mm in different lengths. Several M5 screw-on options for styli or extensions
Made from a high-quality titanium alloy
With M5 per connection options
Low weight combined with high rigidity
Suitable for gear measurements
