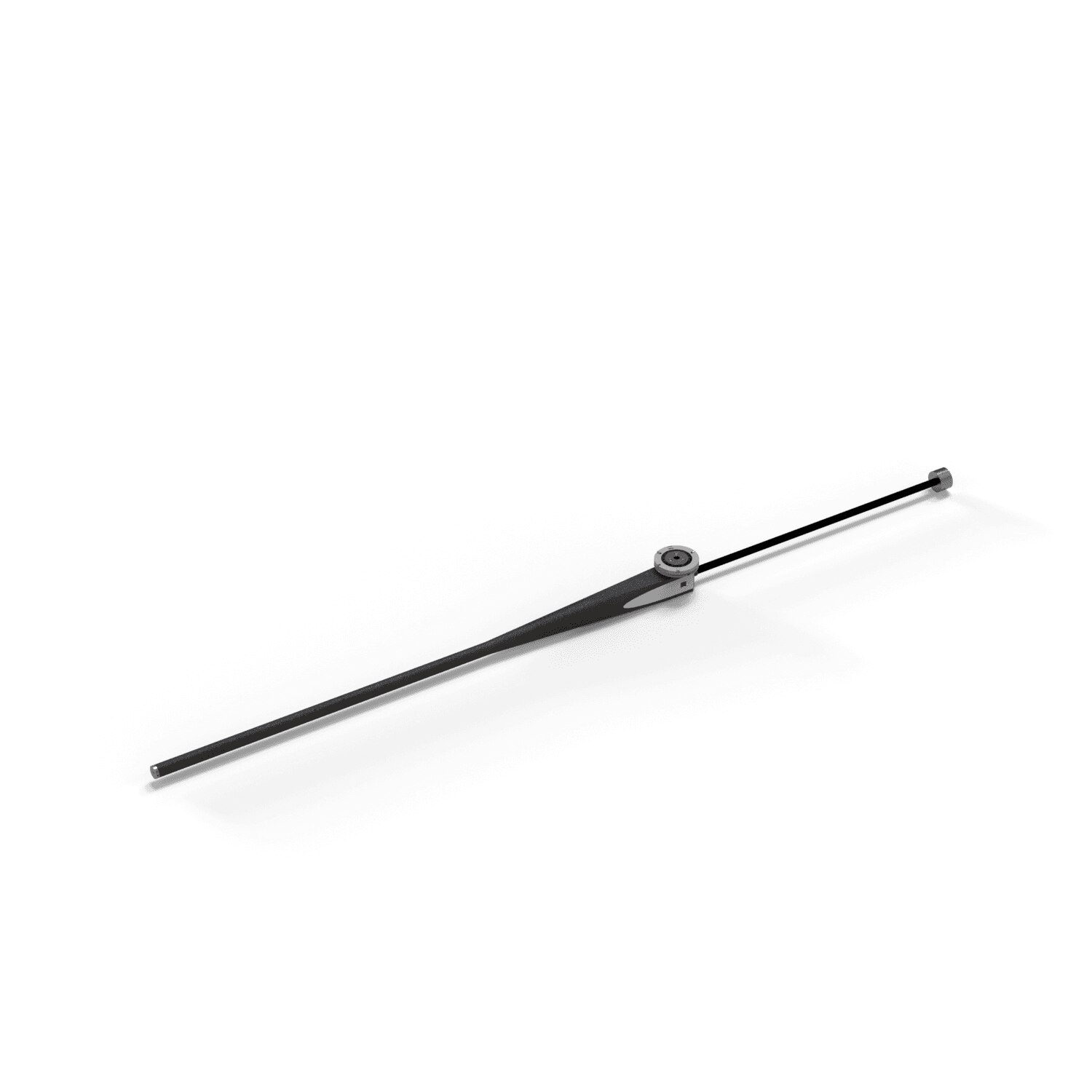

Adapter plate MMZ, Adapter-1x-M5-L600
626107-5060-110
EUR 3,140.00
excluding VAT
Made to order
Do you have questions?
System Integration
Extension type
Plate Extension VAST / MT
Connection Type
ThermoFit XL
Connection Type Out
M5
Measuring sensor
VAST/MT

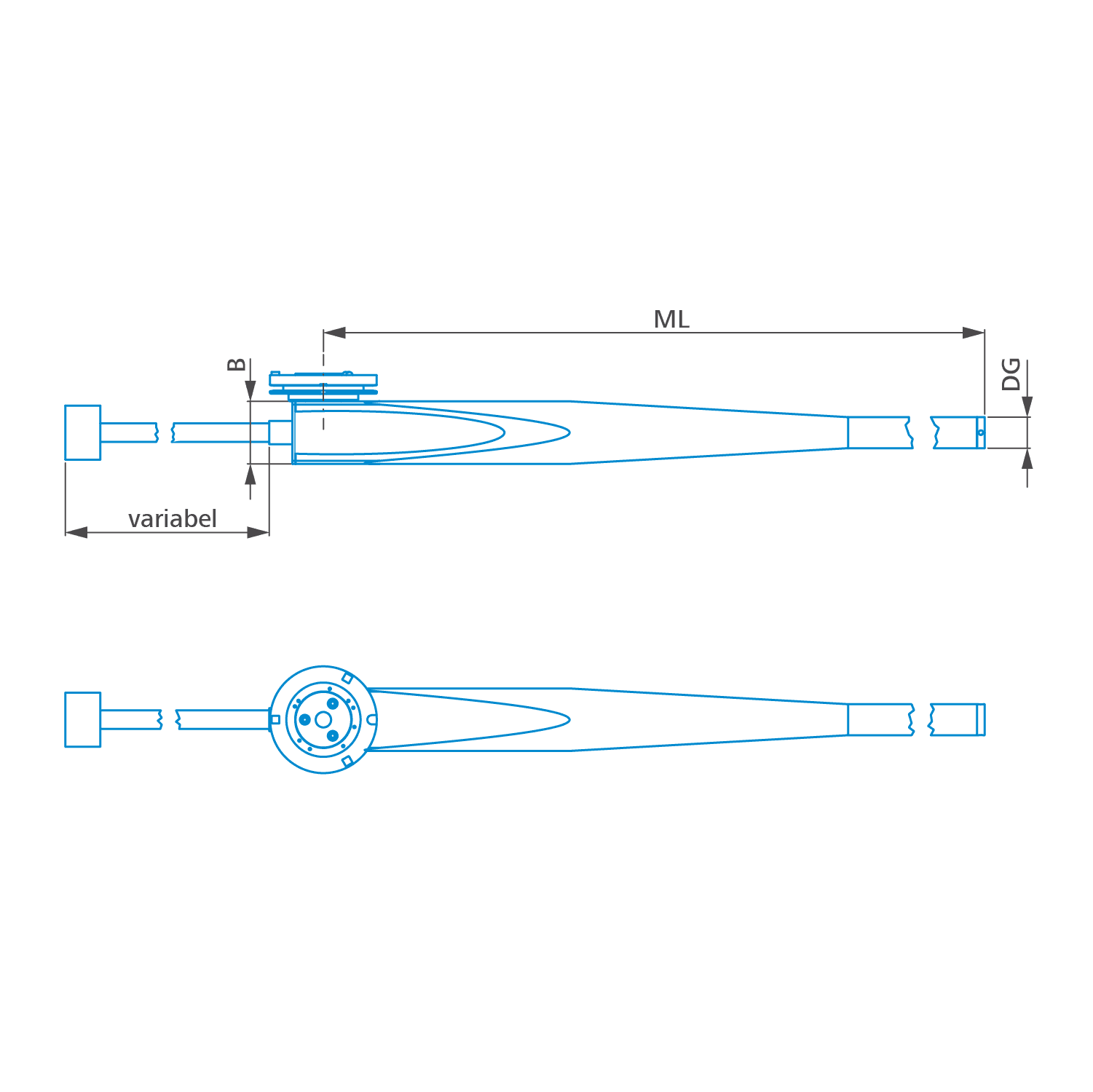

Primary Dimensions
Ø Body (DG)
20 mm
Width (B)
40 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Number positions
1
Weight
487 g
Measurement length (ML)
600 mm
Product note
ZEISS ThermoFit® XL becomes REACH CFX® 3, MMZ - new name, same performance. ZEISS REACH CFX® 3, MMZ is designed to keep carbon fiber extensions torsion and bending resistant even at great lengths.
The special design of the ZEISS REACH CFX® 3, MMZ extensions makes it possible to use extensions that exceed the specified length capacity of the measuring Sensor. These extensions are directly combined with the adaptor plate and are available in lengths up to 1,200 mm. Any tilting moments that occur can be compensated for by the integrated, adjustable counterweight. The large ZEISS MMZ series are suitable for large-volume and heavy components. They are used in many industries such as mechanical engineering, automotive and aviation industries. The probe extensions are available in different versions and are suitable, for inspecting deep holes on large components.
REACH CFX® 3 extensions with plate for use on ZEISS MMZ machines
Extremely lightweight special extensions with approval for lengths over 1200 mm
One-sided extension arm with integrated counterweight to compensate for tilting moments
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Carbon fiber tubes - developed by ZEISS with special winding
