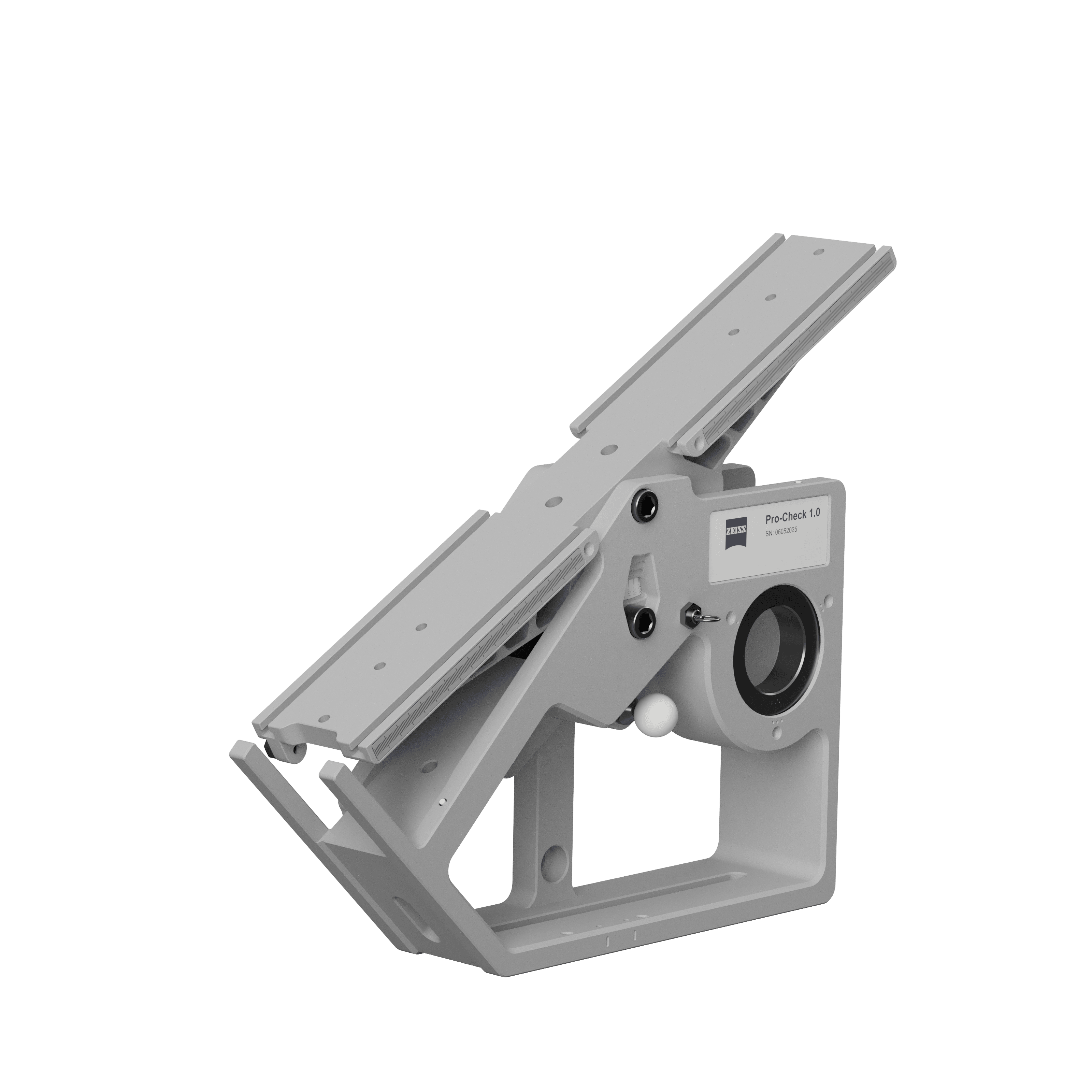

Pro-Check 1.0 Artifact Holder
626106-9355-621
EUR 16,032.00
excluding VAT
Longer delivery time
Do you have questions?
Overall
Product type
Artifacts
Details
Accommodates the use of step gauges from the manufacturers ZEISS, ITS and KOBA in lengths of 300 to 700 mm.
- Suitable for CMMs with measuring volume of at least 500 x 500 x 500 mm
- Typical machines include SPECTRUM, CONTURA, ACCURA, MICURA, PRISMO
- Not suitable for DuraMax, XENOS
- Package includes:
- - CMM Monitoring Tool evaluation software.
- - 1 Eumetron dongle license per artifact. Supports multiple CMMs
- - Setting Ring, Diameter 50 mm
- - Sphere, Diameter 25 mm
- - Styli for XT and XXT sensors
- - Alignment unit (angle template and angle indicator)
- - Elevation column for measurement in Z-axis direction and the multiple probe test
- - Robust transport case with lock and foam insert
- - Accredited calibration of all standards in accordance with DIN EN ISO/IEC 17025
- Benefits of CMM Monitoring Tool evaluation software include:
- - Automatically generated measurement plans according to ISO10360
- - Setup instructions and guidelines for inspection intervals with warnings
- - Archived records and structured ISO10360 protocols
- - Administration of multiple artifacts and CMMs
- Remote online training (626106-9355-641) is also available for an additional cost.
Product note
Step gauges for determining the length measurement deviation are not included. It is recommended to calibrate this artifact every two years.
Pro-Check 1.0 Artifact Holder is used when providing independent step gauges. This device includes other roundness reference artifacts and provides more flexibility and benefits of a CMM-Check. The Pro-Checks are used verify and monitor the accuracy of any CMM between annual calibrations. Checking the CMM accuracy can be added to a quality routine or performed after collisions, environmental changes or system changes. The check provides immediate notice of accuracy errors.
