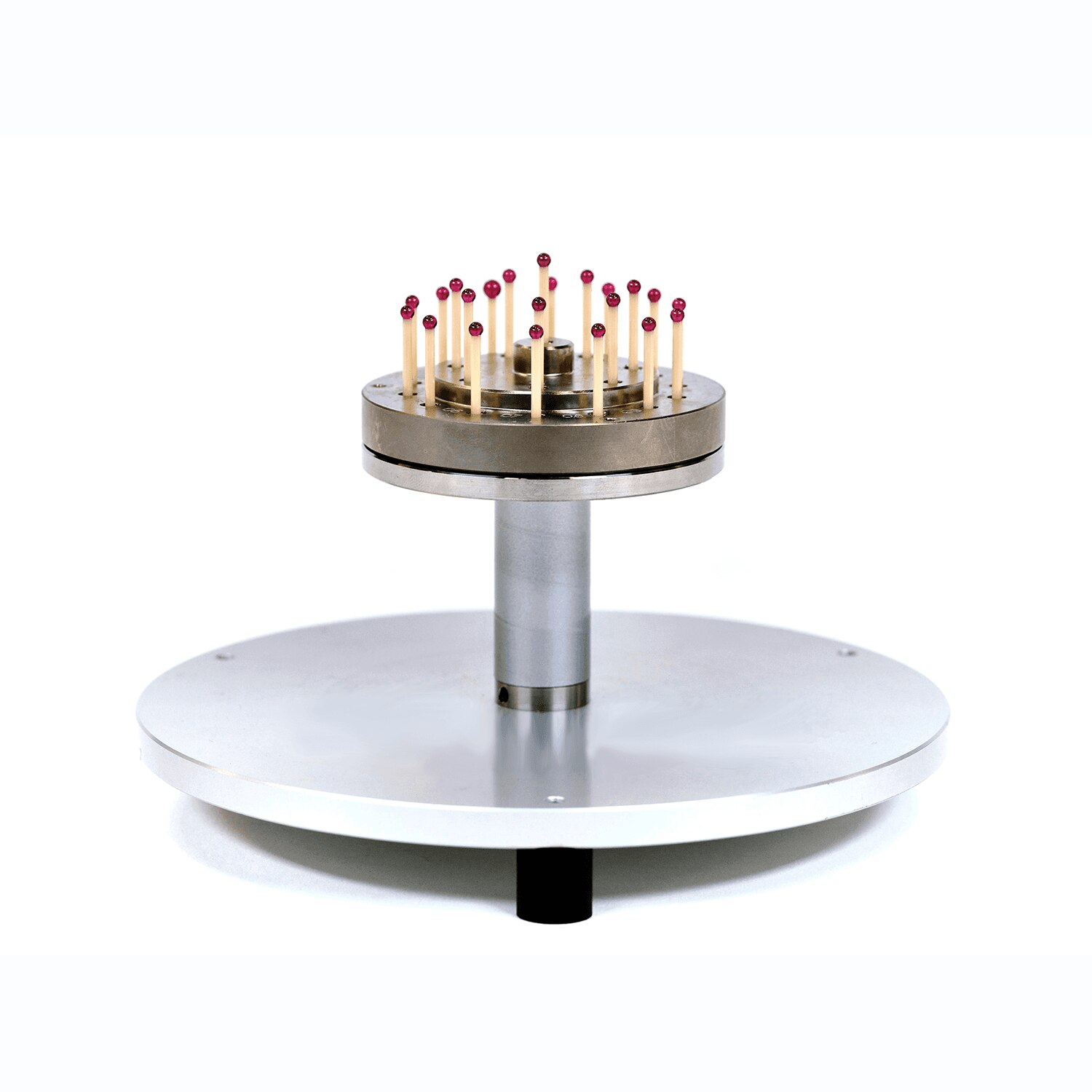

The CT Check Micro is used for intermediate testing METROTOM 800 and METROTOM 6 Scout machines according to VDI/VDE 2630 The accuracy monitoring of your measuring device gives you confidence in your measurement values and security for the next quality audit. Every measuring instrument should be regularly monitored according to the ISO 9000 standard series. Using a CALYPSO measurement plan and MS-Excel , an evaluating between calibration values and measured values are compared. The process is straightforward and fast, so that you can check your Metrotom within a short time without additional training. 22 spheres are positioned in the measuring volume allowing to evaluate 25 measuring lengths distributed for VDI 2630 compliance.

• Especially stiff holder for devices with lifting table

• VDI 2630 compliant test specimens enable audible monitoring

• including DAkkS calibration

• robust plastic hard case

• Approved by ZEISS Service, for consistent accuracy checking along the system life cycle

• BA_METROTOM_Check_Micro_800_REV_3.1_en_397662_0

  PDF

• BA_METROTOM_Check_Micro_800_REV_3.0_de_392736_0

  PDF
