Multiple holder-28x-M5-L140
626105-6190-038
EUR 518.00
excluding VAT
Expected soon
Do you have questions?
System Integration
Connection Type
M5
Connection Type Out
M5

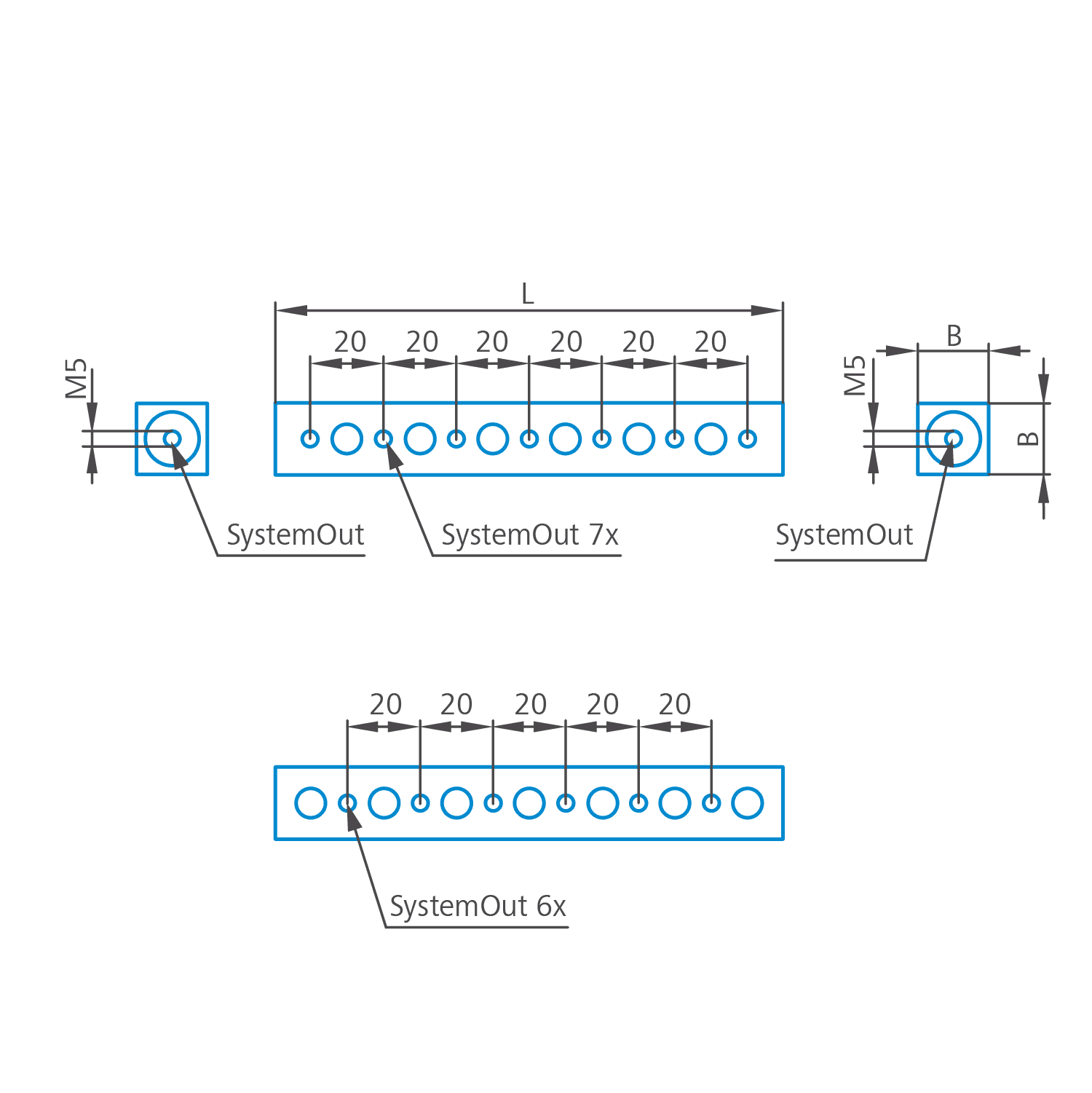

Primary Dimensions
Length (L)
140 mm
Width (B)
20 mm
Detailed Specifications
Material
Titanium
Weight
166 g
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.
Multiple holders in 20 x 20 mm bar design. Allows several M5 styli or extensions.
Made from a high-quality titanium alloy
Low weight combined with high rigidity
Suitable for gear measurements
