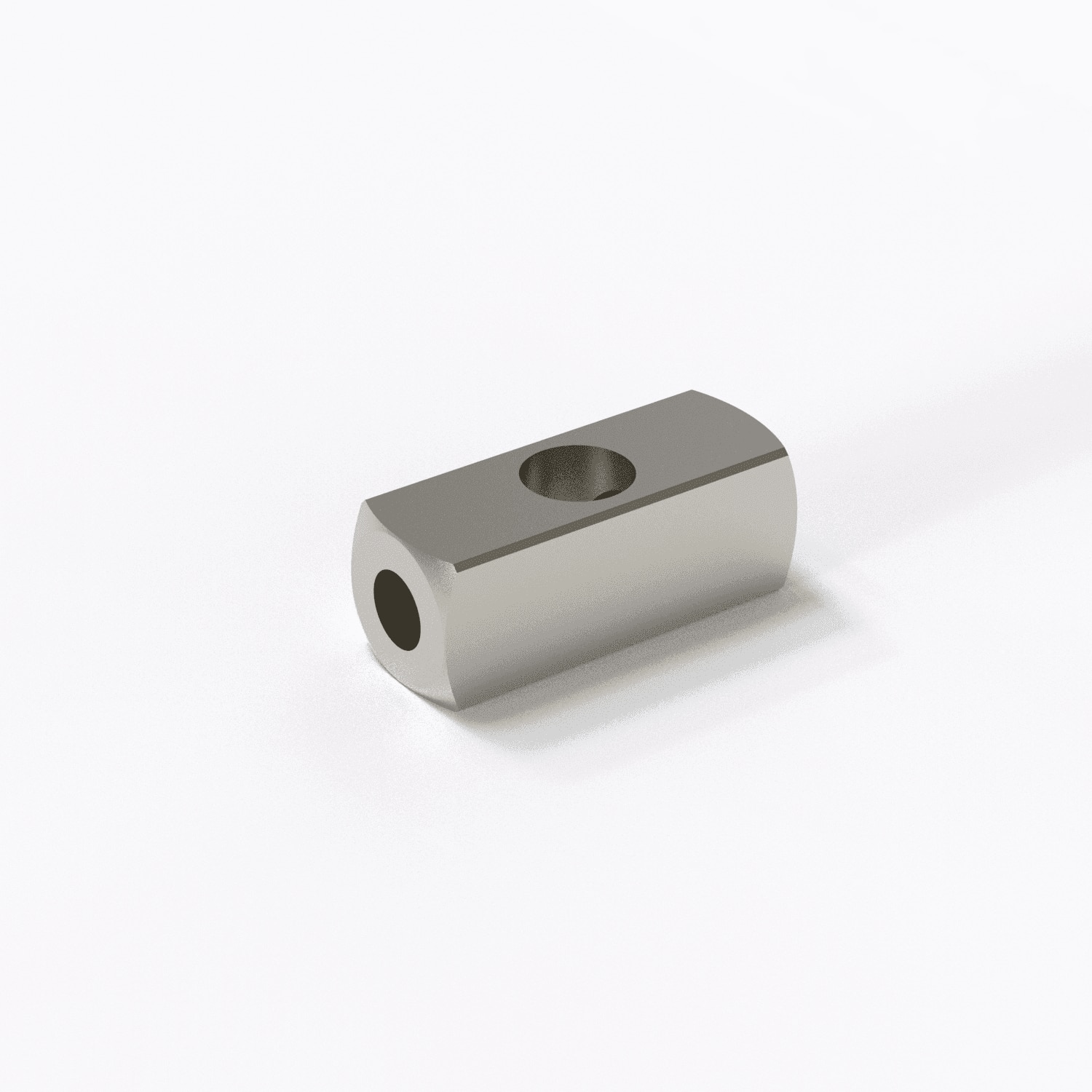

cube, M3XXT, 180 degree, double
626103-6110-002
EUR 54.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3 XXT
Connection Type Out
M3 XXT

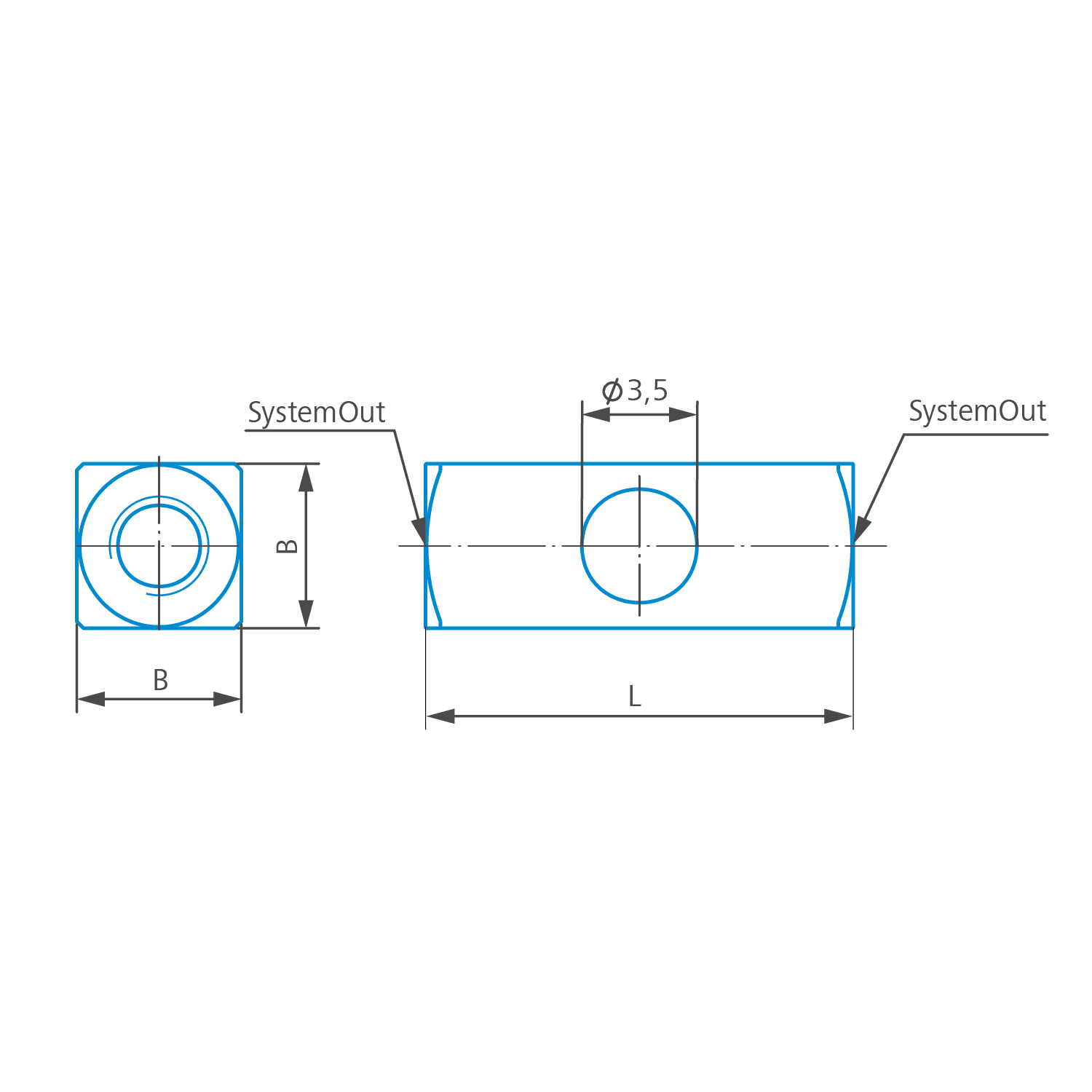

Primary Dimensions
Width (B)
5 mm
Length (L)
13 mm
Detailed Specifications
Material
Titanium
Weight
1,1 g
Number positions
2
Angle 1(W1)
180°
Product note
Due to their simplicity, first-generation rotary and rotary-knuckle elements are the most common fasteners on the market in the M3 XXT system. However, due to the offset connections and the difficulty in setting the angles due to the frictional forces of the screw, they have clear disadvantages compared to the elements of the second generation
Double angle piece with two opposing M3 XXT connections and fitting hole, rotationally adjustable and clampable using a clamping screw
Rotationally adjustable
Made from a high-quality titanium alloy
For the creation of T- styli
