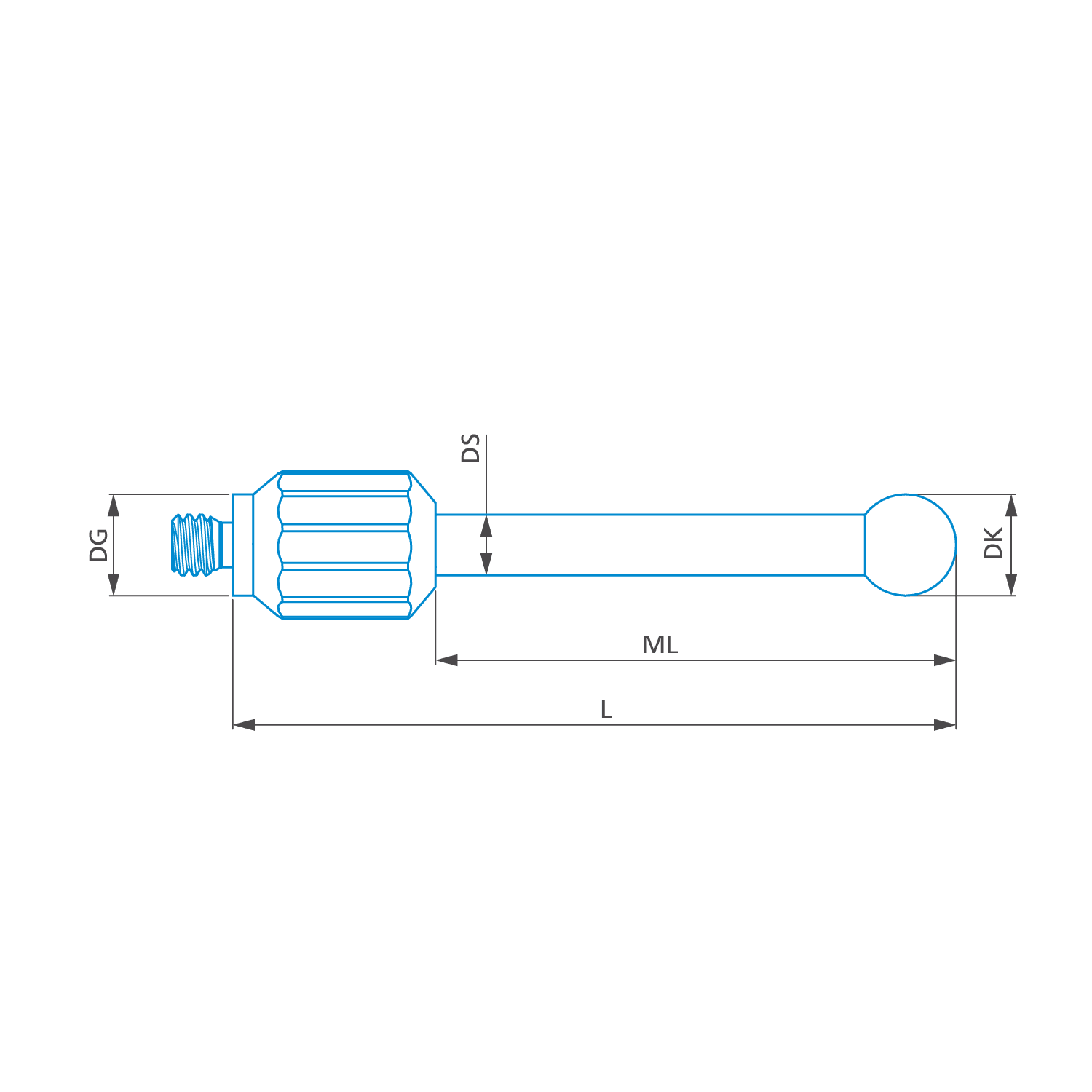

Knurled stylus M3 XXT, DK3 L50
626103-0317-050
EUR 49.00
excluding VAT
In stock
Do you have questions?
Stylus tip
Diameter sphere (DK)
3 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
40 mm
Shaft material
Carbon Fiber
Ø Shaft (DS)
3 mm
2nd Measurement length (MLE)
12 mm
2nd shaft diameter (DSE)
2 mm
Overall
Length (L)
50 mm
Ø Body (DG)
5 mm
Weight
1,2 g
Stylus type
Knurled Stylus
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Standard Styli suitable for all common measuring tasks. Knurled plastic adapter for assembly without tools. M3 thread for ZEISS VAST XXT sensors.
Special knurled adapters for tightening by hand
SiN for less material deposits
SiN spheres available from 0.3 up to 12 mm
Carbon fiber shaft with optimal stiffness, weight, and thermal expansion
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
