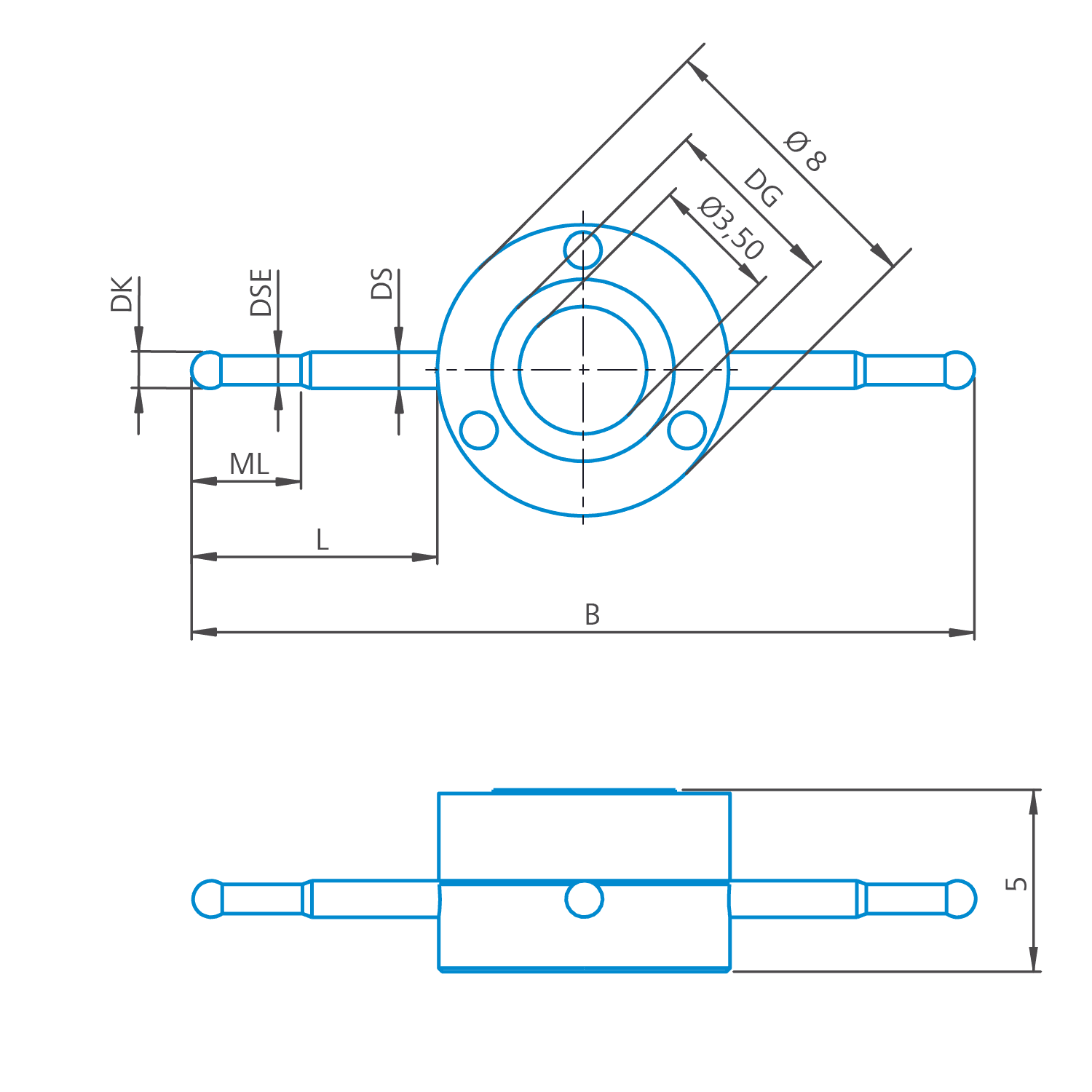

T-stylus M3 XXT, DK0.6 L5
626103-0060-218
EUR 174.00
excluding VAT
Expected soon
Do you have questions?
Stylus tip
Diameter sphere (DK)
0,6 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
4,6 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
2nd shaft diameter (DSE)
0,4 mm
Width (B)
18 mm
Overall
Length (L)
5 mm
Ø Body (DG)
5 mm
Weight
0,9 g
Stylus type
T-Stylus cube-shape
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
T-styli for measuring opposing bores, grooves, undercuts, cylinder and bore diameters
Clamping ring with 2 horizontal single styli
For adaptation to standard extensions
Spherical styli have the same probing behavior in all directions
Ruby is the most common spherical material
Ruby spheres available from 0.2 to 12 mm
tungsten carbide shaft with high rigidity
Higher stability through stepped shaft
Proven ZEISS quality through high-end production
